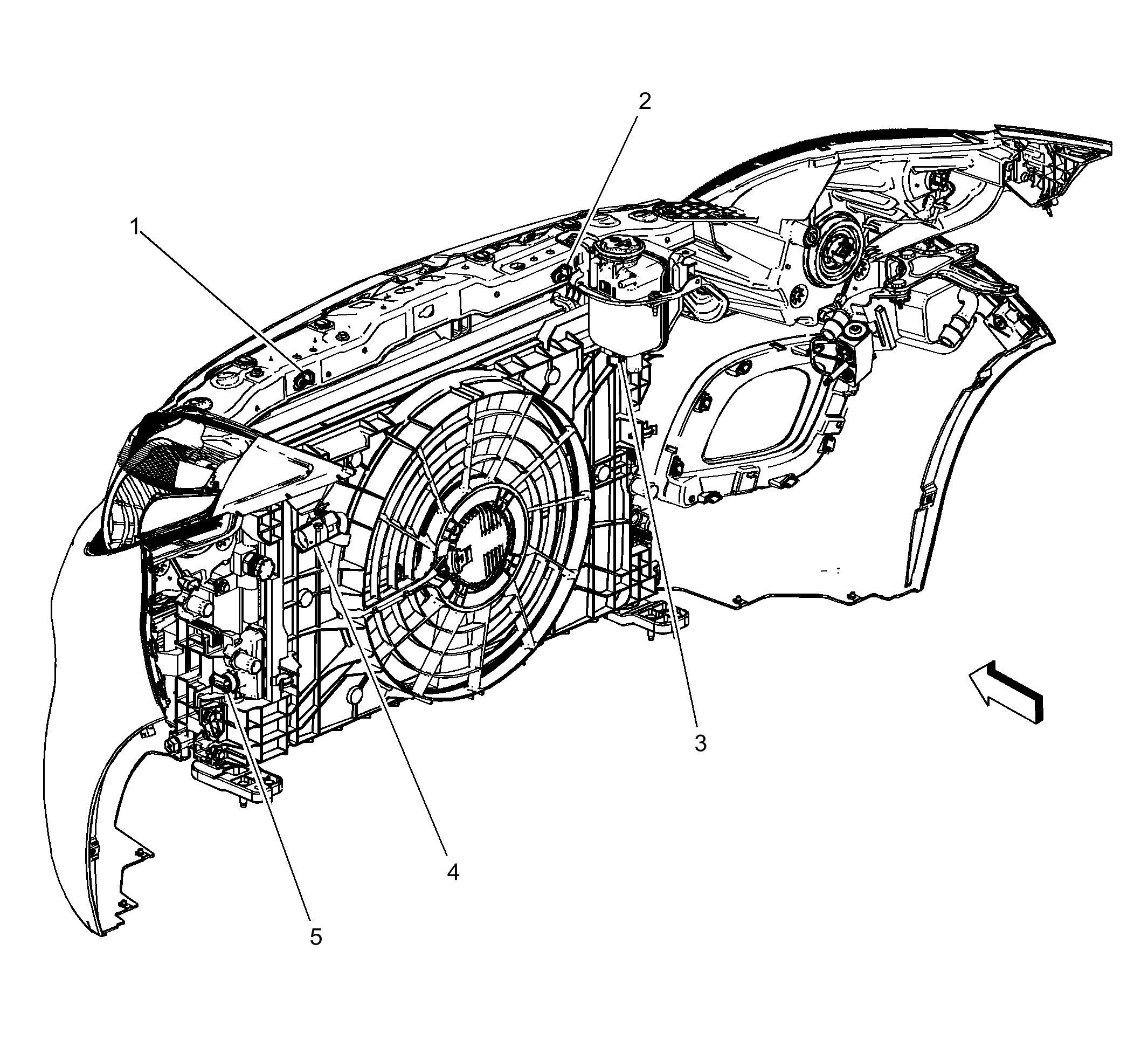

Front of Engine Compartment
Front of Engine Compartment
| Items |
|---|
| 1: B59L Front Impact Sensor - Left (D90/AYF/AW7) B59L Front Impact Sensor - Left |
| 2: B59R Front Impact Sensor - Right (D90/AYF/AW7) B59R Front Impact Sensor - Right |
| 3: B258 Hybrid/EV Battery Coolant Level Switch B258 Hybrid/EV Battery Coolant Level Switch |
| 4: G10 Cooling Fan Motor G10 Cooling Fan Motor |
| 5: B202 Hybrid/EV Electronics Coolant Temperature Sensor B202 Hybrid/EV Electronics Coolant Temperature Sensor |
