Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground, and Data Communication

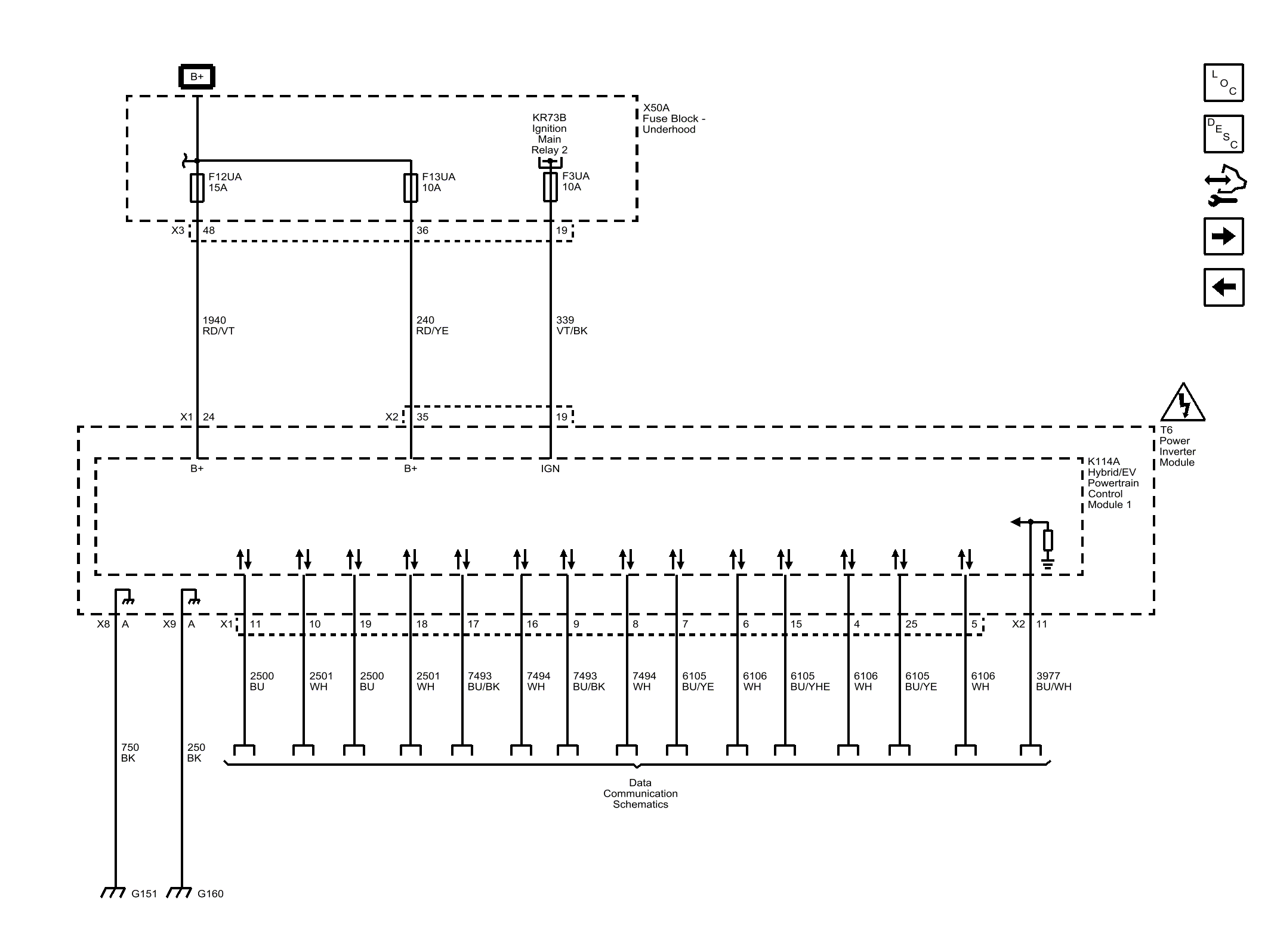

Fig 1: Hybrid/EV Powertrain Control Module 1/Power Inverter Module Power, Ground, and Data Communication
GM4067380Courtesy of GENERAL MOTORS COMPANY
