Front Seat Belt Buckle Replacement

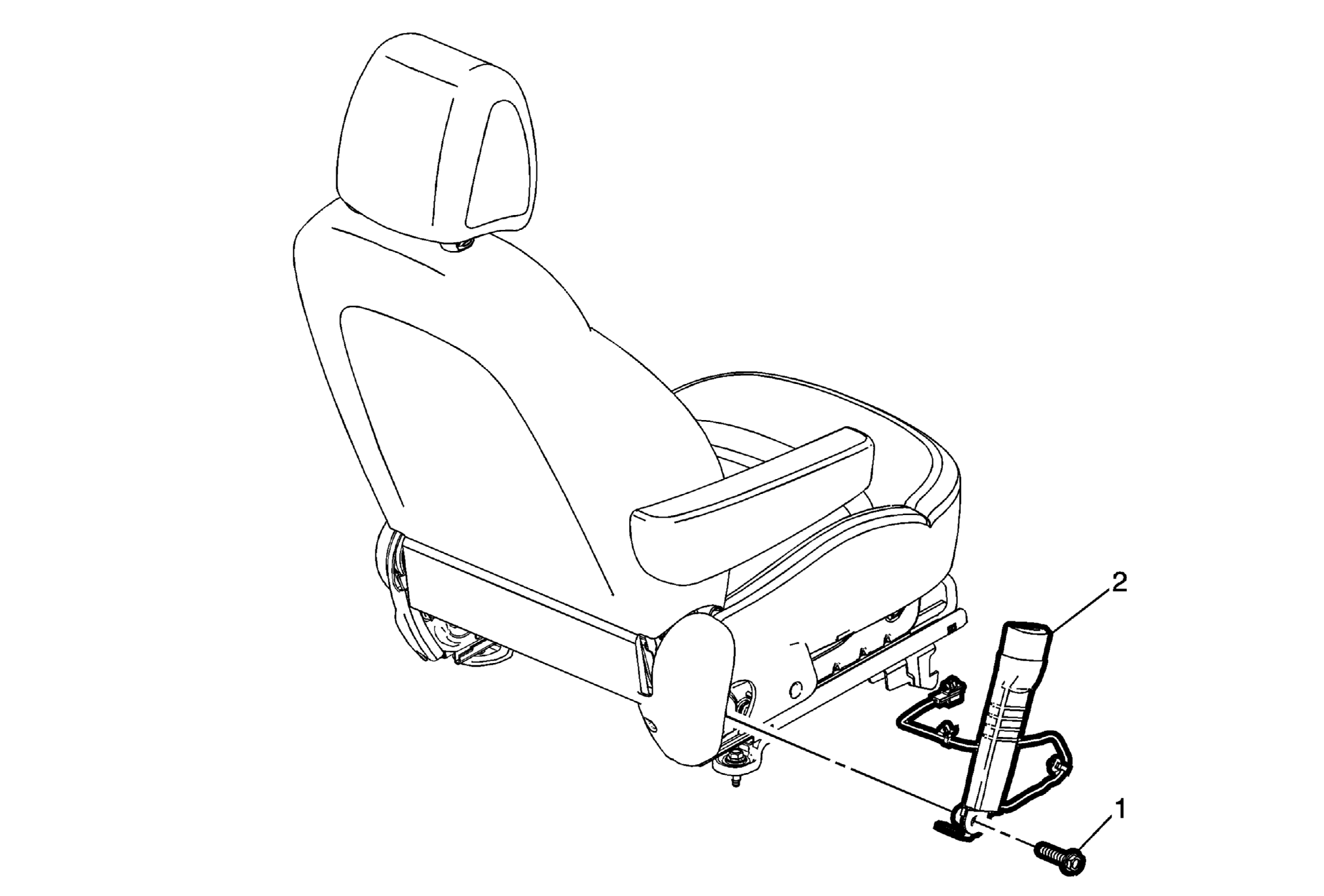

Fig 1: Front Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Belt Buckle Bolt CAUTION: Refer to Fastener Caution . Tighten  40 N.m (30 lb ft)
2	Front Seat Belt Buckle Assembly
