Turn Signal Switch Replacement

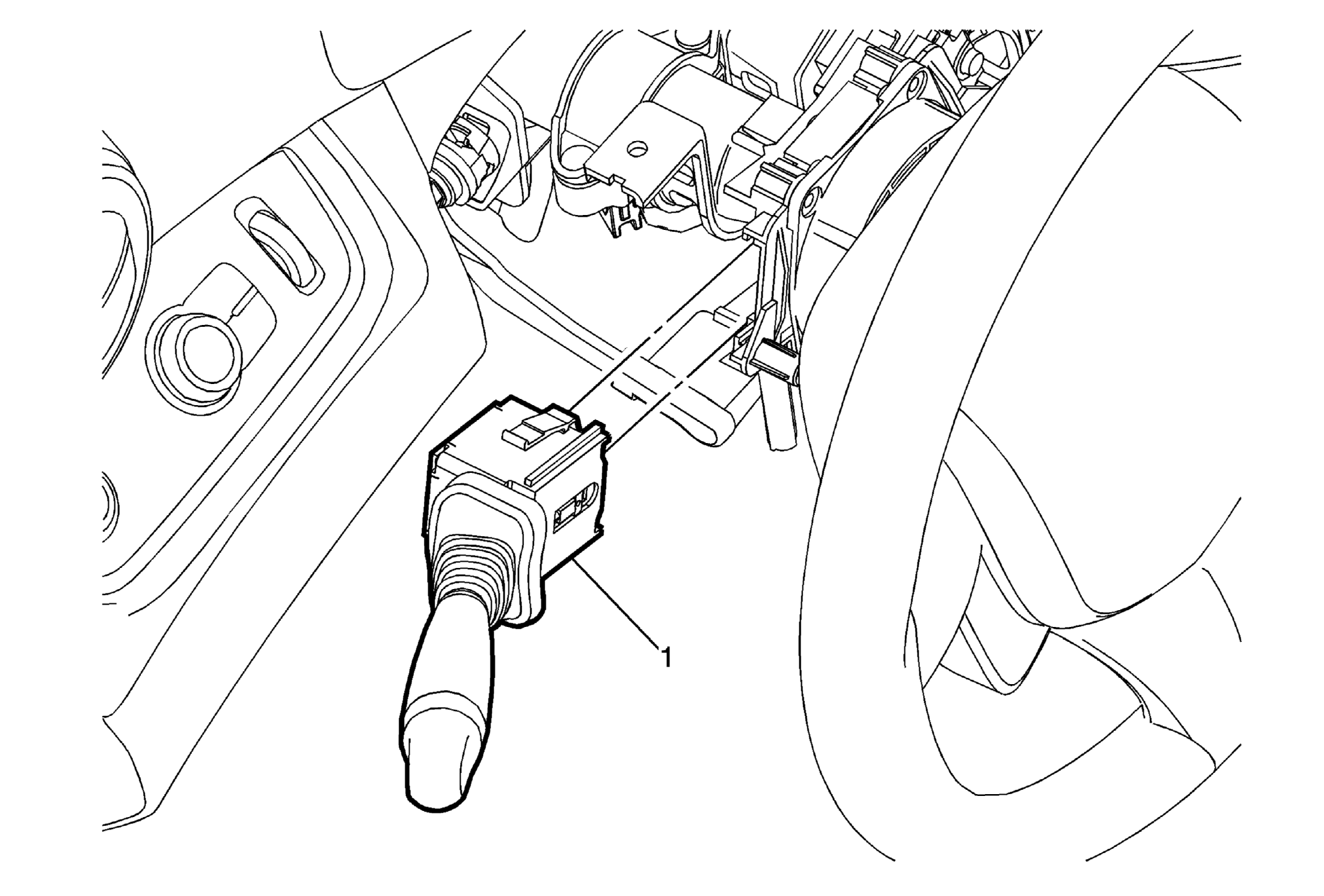

Fig 1: Turn Signal Switch
GM3124108Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
  2. Remove the instrument cluster. Refer to Instrument Cluster Replacement .
  3. Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1 Turn Signal Switch

Procedure

  1. Disconnect any electrical connectors.
  2. Release the retaining tabs and remove the turn signal switch from the steering column.
