Power, Ground and Serial Data Communications (AVJ)

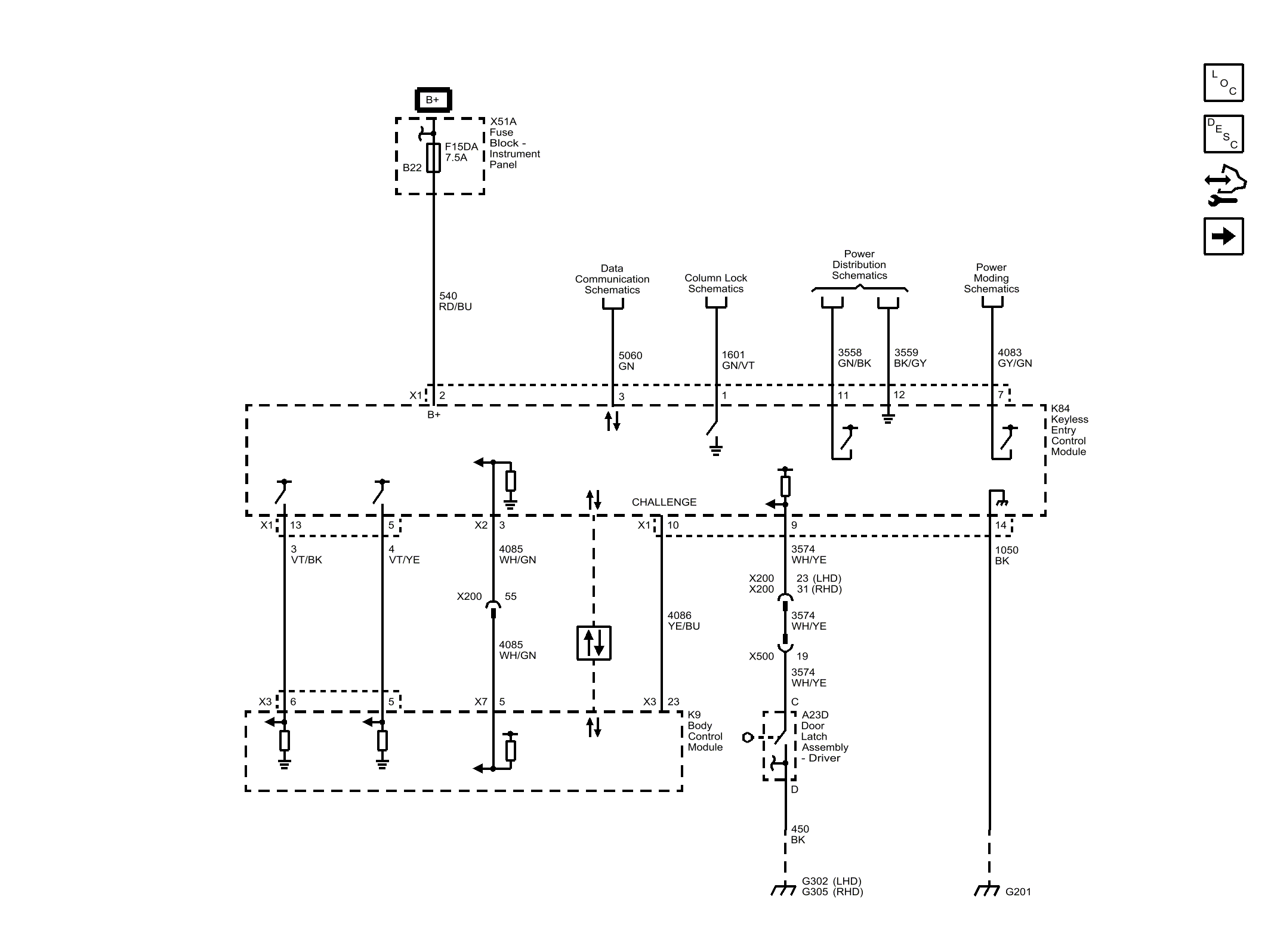

Fig 1: Power, Ground and Serial Data Communications (AVJ)
GM4086435Courtesy of GENERAL MOTORS COMPANY
