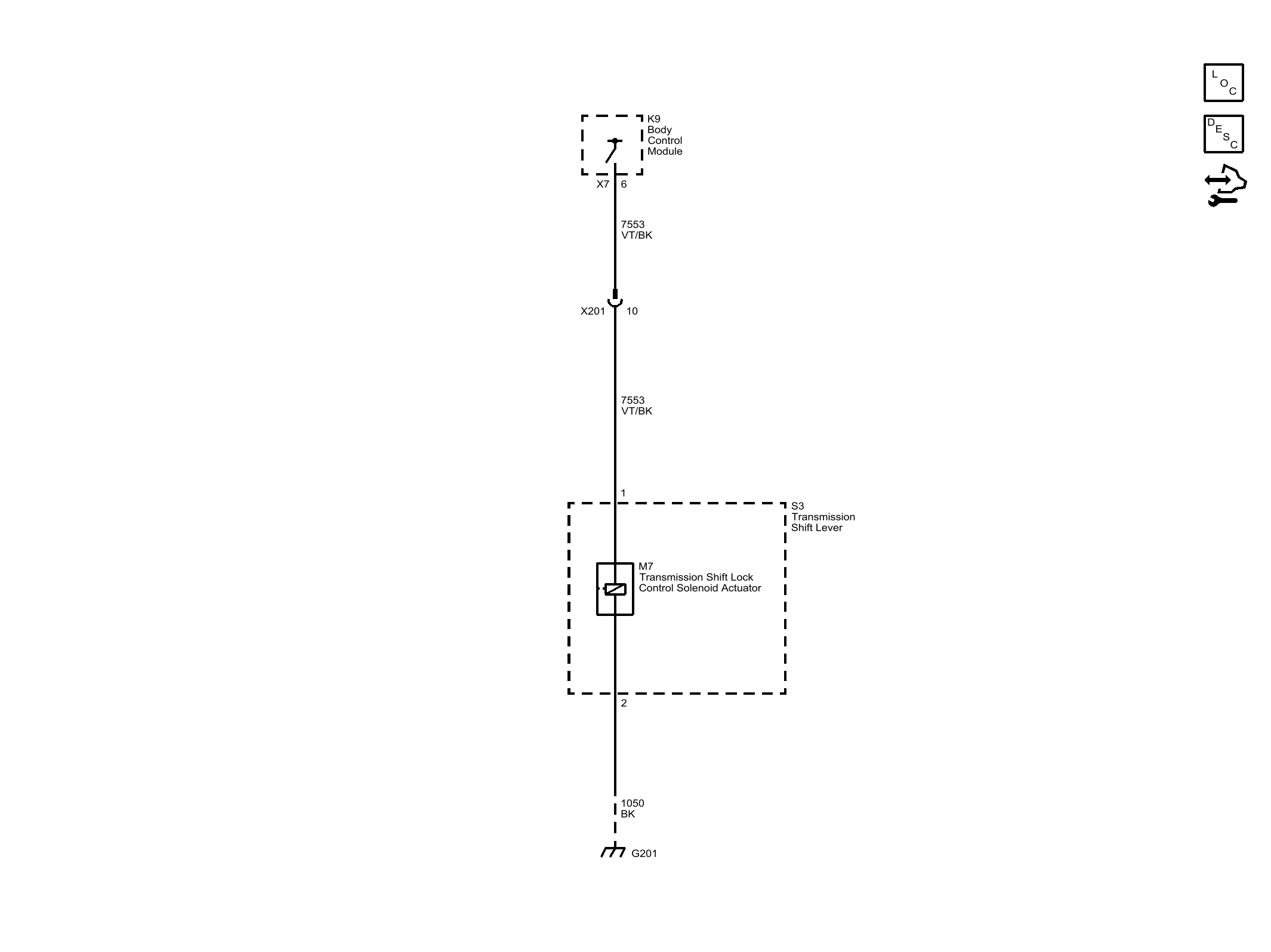

Home › Chevrolet › 2016 › Spark LS, Automatic CVT Trans › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock (MR8)
