Radio Control Switch Replacement

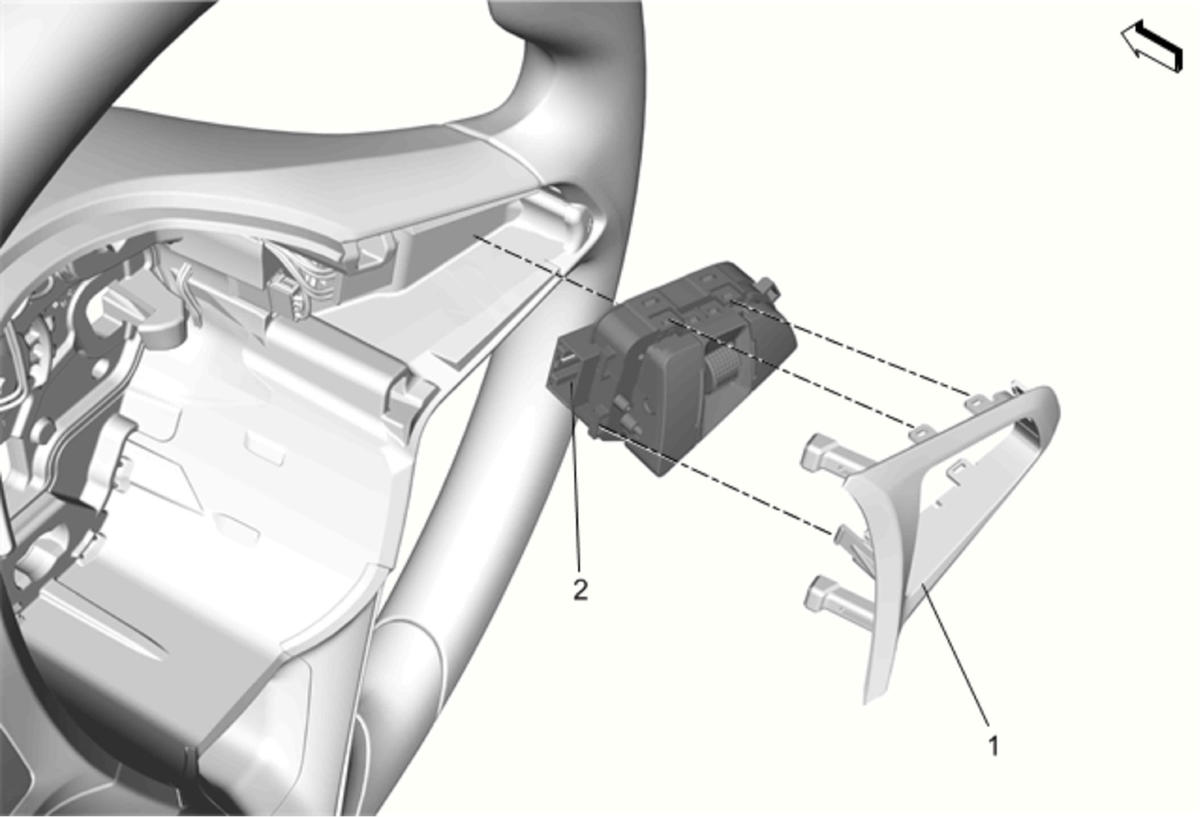

Fig 1: Radio Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Spoke Control Switch Bezel Procedure  Remove switch bezel. Refer to Steering Wheel Spoke Control Switch Bezel Replacement .
2	Radio Control Switch Assembly Procedure  Disconnect the electrical connector.
