Power Window System Components
The power window system consists of the following components:
- Driver window switch
- Front passenger window switch
- Left rear window switch
- Right rear window switch
- Window regulator motors in each of the doors
- 30 amp fuse
- 25 amp fuse

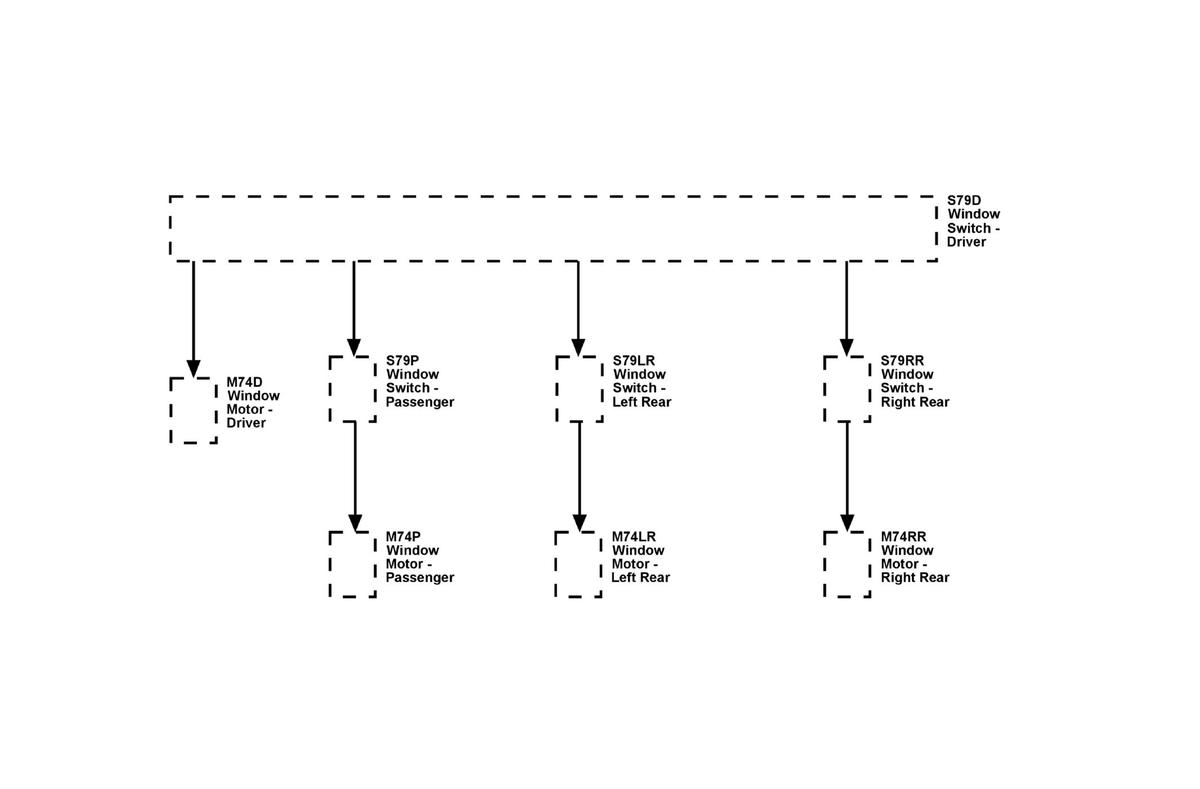

| Callout | Component Name |
|---|---|
| S79D | S79D Window Switch - Driver |
| M74D | M74D Window Motor - Driver |
| S79P | S79P Window Switch - Passenger |
| S79LR | S79LR Window Switch - Left Rear |
| S79RR | S79RR Window Switch - Right Rear |
| M74P | M74P Window Motor - Passenger |
| M74LR | M74LR Window Motor - Left Rear |
| M74RR | M74RR Window Motor - Right Rear |
