Accessory Power Receptacle Replacement

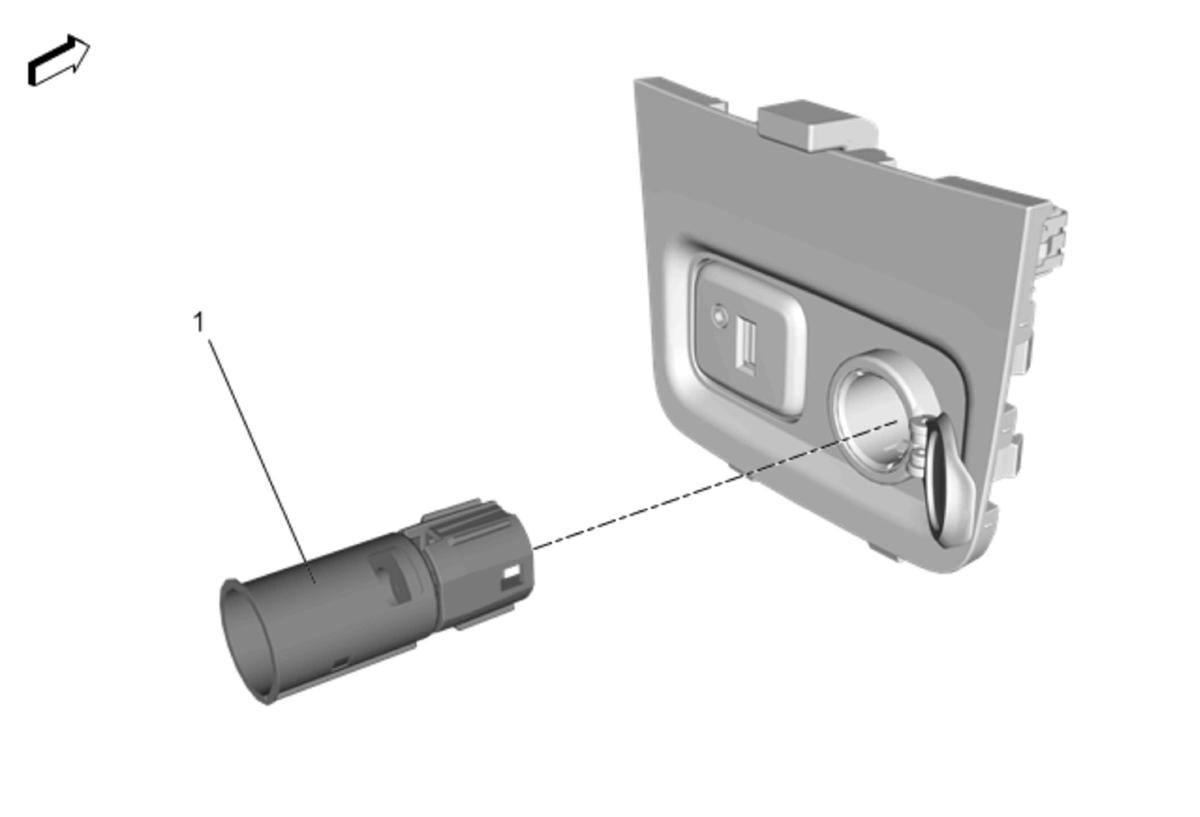

Fig 1: Accessory Power Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedure Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement .
1	Accessory Power/Cigarette Lighter Receptacle Procedure Disconnect electrical connectors. Special Tools BO-48871 Cigar Lighter Socket Remover For equivalent regional tools, refer to Special Tools .

Callout

Component Name

WARNING:

Refer to Battery Disconnect Warning .

Preliminary Procedure

Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement .

Accessory Power/Cigarette Lighter Receptacle
Procedure
Disconnect electrical connectors.
Special Tools
BO-48871 Cigar Lighter Socket Remover
For equivalent regional tools, refer to Special Tools .
