Engine Compartment Components (RHD)

Engine Compartment Components (RHD)

Items
1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
3: C1 Battery C1 Battery (Battery Negative)C1 Battery (Body)
4: K17 Electronic Brake Control Module K17 Electronic Brake Control Module

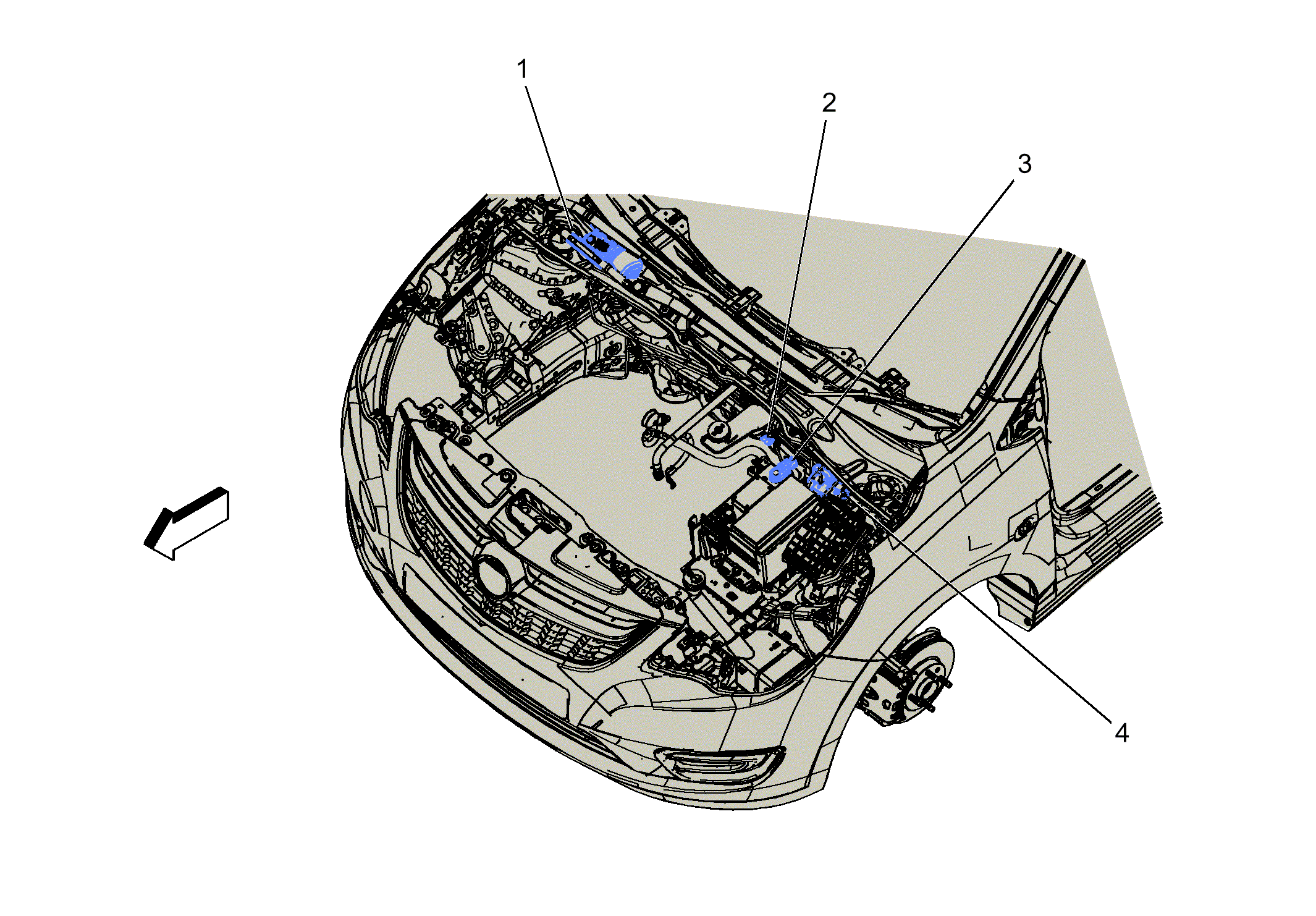

Fig 1: Engine Compartment Components (RHD)
GM4040475Courtesy of GENERAL MOTORS COMPANY
