Exhaust Front Heat Shield Replacement

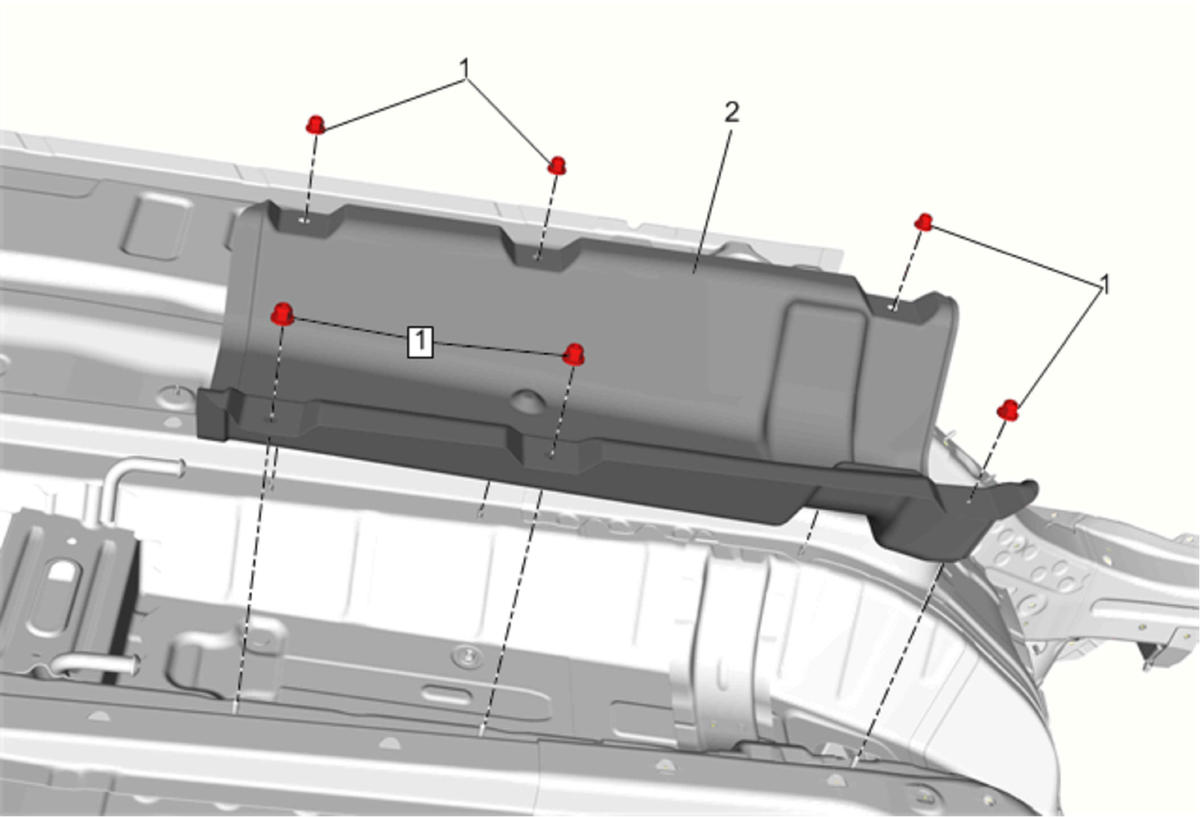

Fig 1: Exhaust Front Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (L5Q) Exhaust Muffler Replacement (LV7) .
1	Exhaust Front Heat Shield Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb in)
2	Exhaust Front Heat Shield
