Linear Interconnect Network (LIN)

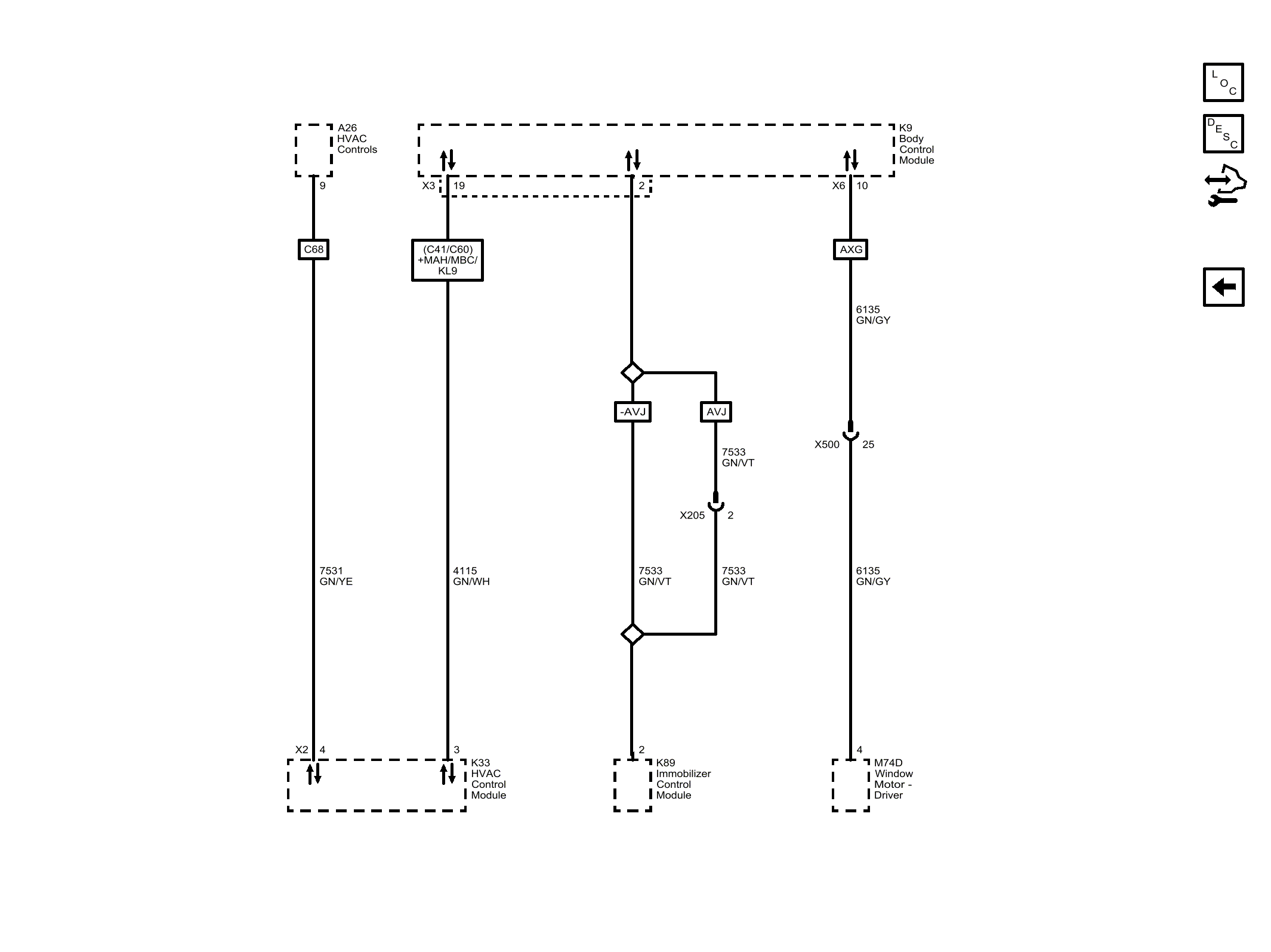

Fig 1: Linear Interconnect Network (LIN)
GM4086356Courtesy of GENERAL MOTORS COMPANY
