Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

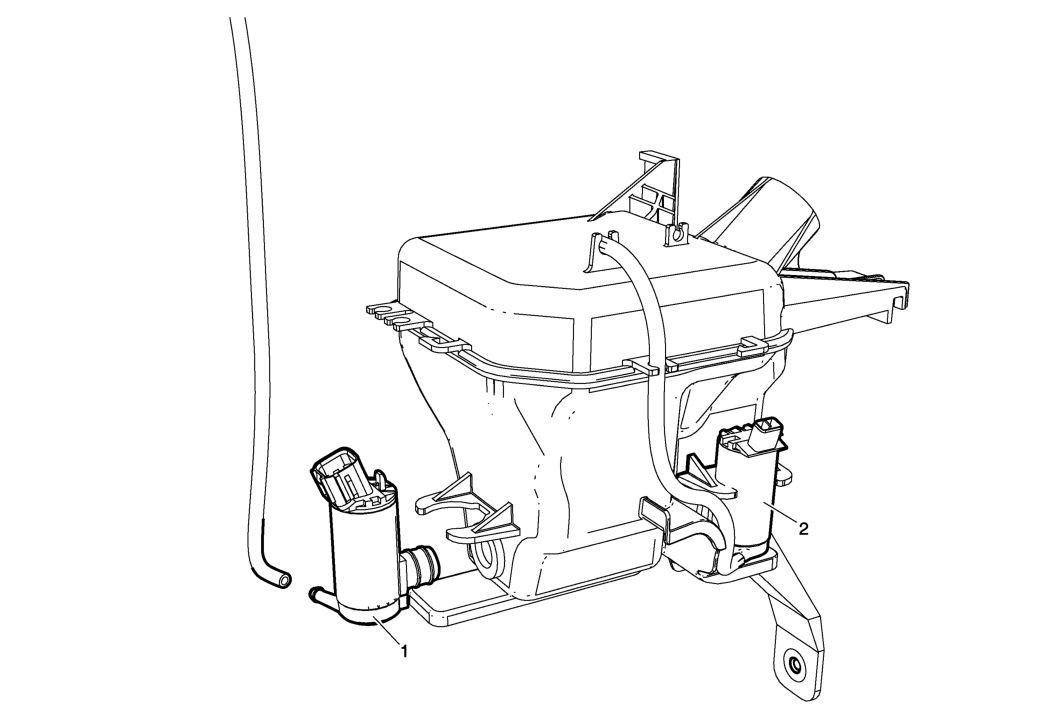

Fig 1: Windshield Washer Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the washer hose from the washer pump. Disconnect the electrical connector.
1	Windshield Washer Solvent Pump
2	Rear Window Washer Solvent Pump

Callout

Component Name

Preliminary Procedures

Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect the washer hose from the washer pump.
Disconnect the electrical connector.

Windshield Washer Solvent Pump

Rear Window Washer Solvent Pump
