Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

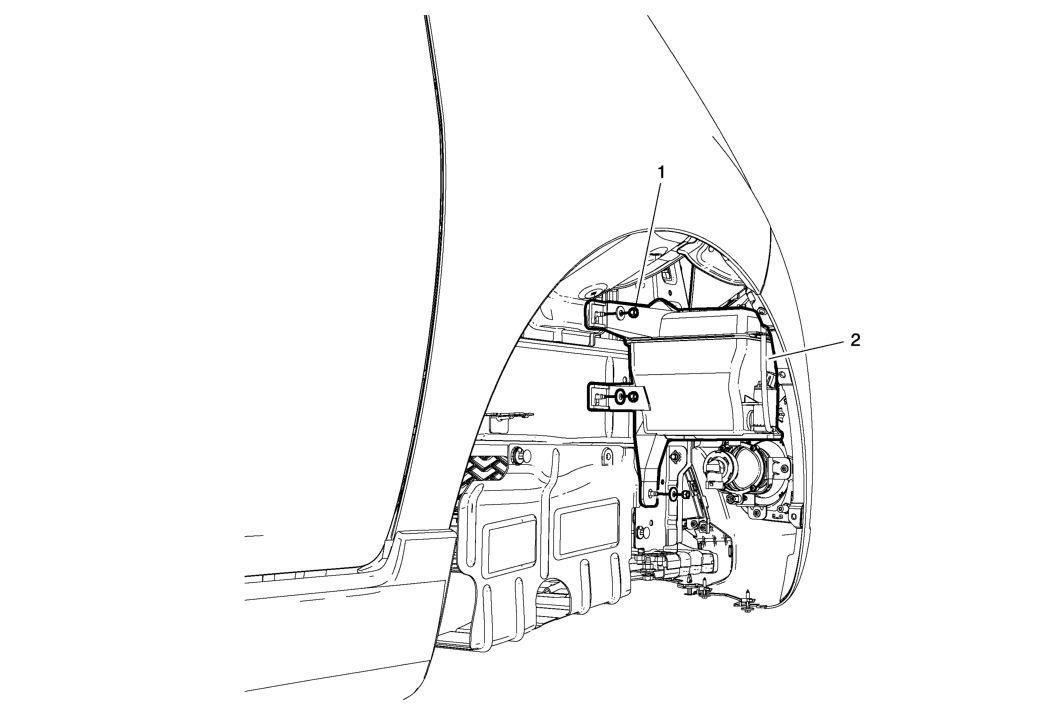

Fig 1: Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the washer hose from the washer pump. Disconnect the electrical connector.
1	Windshield Washer solvent Container Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Washer Solvent Container Assembly

Callout

Component Name

Preliminary Procedures

Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect the washer hose from the washer pump.
Disconnect the electrical connector.

Windshield Washer solvent Container Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Windshield Washer Solvent Container Assembly
