Windshield Wiper Arm Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

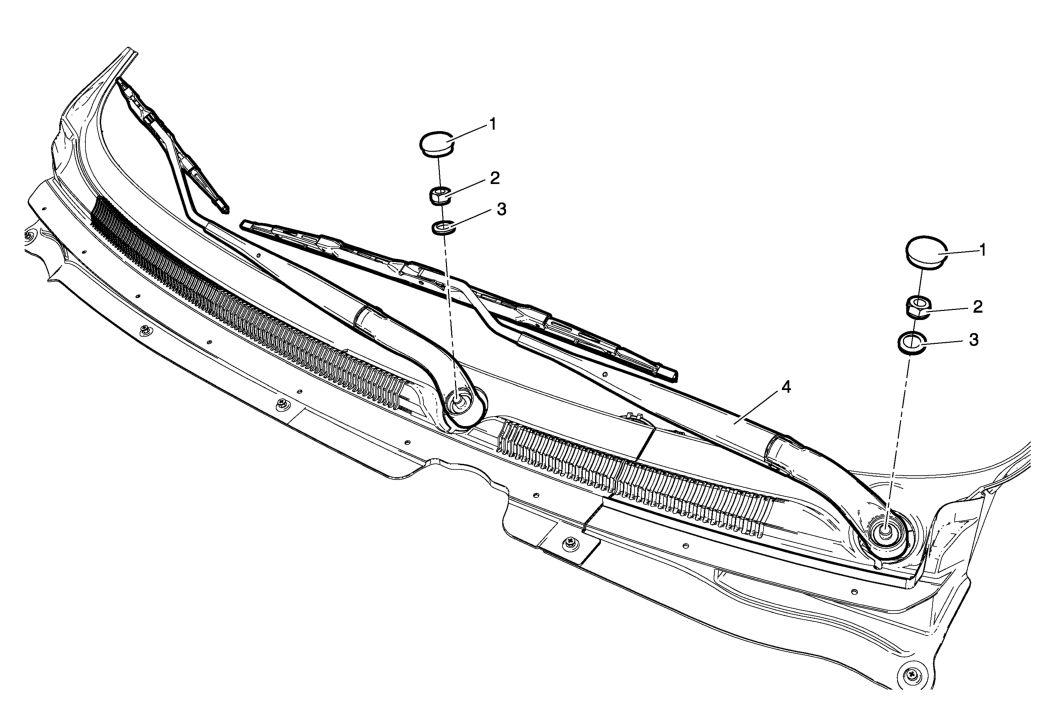

| Callout | Component Name |
|---|---|
| 1 | Windshield Wiper Arm Finish Cap TIP: Use a small flat-bladed tool to remove finish cap. |
| 2 | Windshield Wiper Arm Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 24 N.m (18 lb in) |
| 3 | Windshield Wiper Arm Washer |
| 4 | Windshield Wiper Arm Assembly TIP: Use the wiper arm puller if the arm fails to release from the wiper motor pivot shaft. |
