Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake pedal position sensor bolt (1) through the bracket and to the brake pedal position sensor (2)..
    Fig 1: Brake Pedal Position Sensor Bolt
    GM3349690Courtesy of GENERAL MOTORS COMPANY
    NOTE: Align the brake pedal position sensor pin to the brake pedal bracket.
  2. Tighten the brake pedal position sensor bolt to 3 N.m (27 lb in)
    CAUTION: Refer to Fastener Caution .
  3. Install the brake pedal position sensor and bracket assembly to the brake and accelerator pedal assembly.

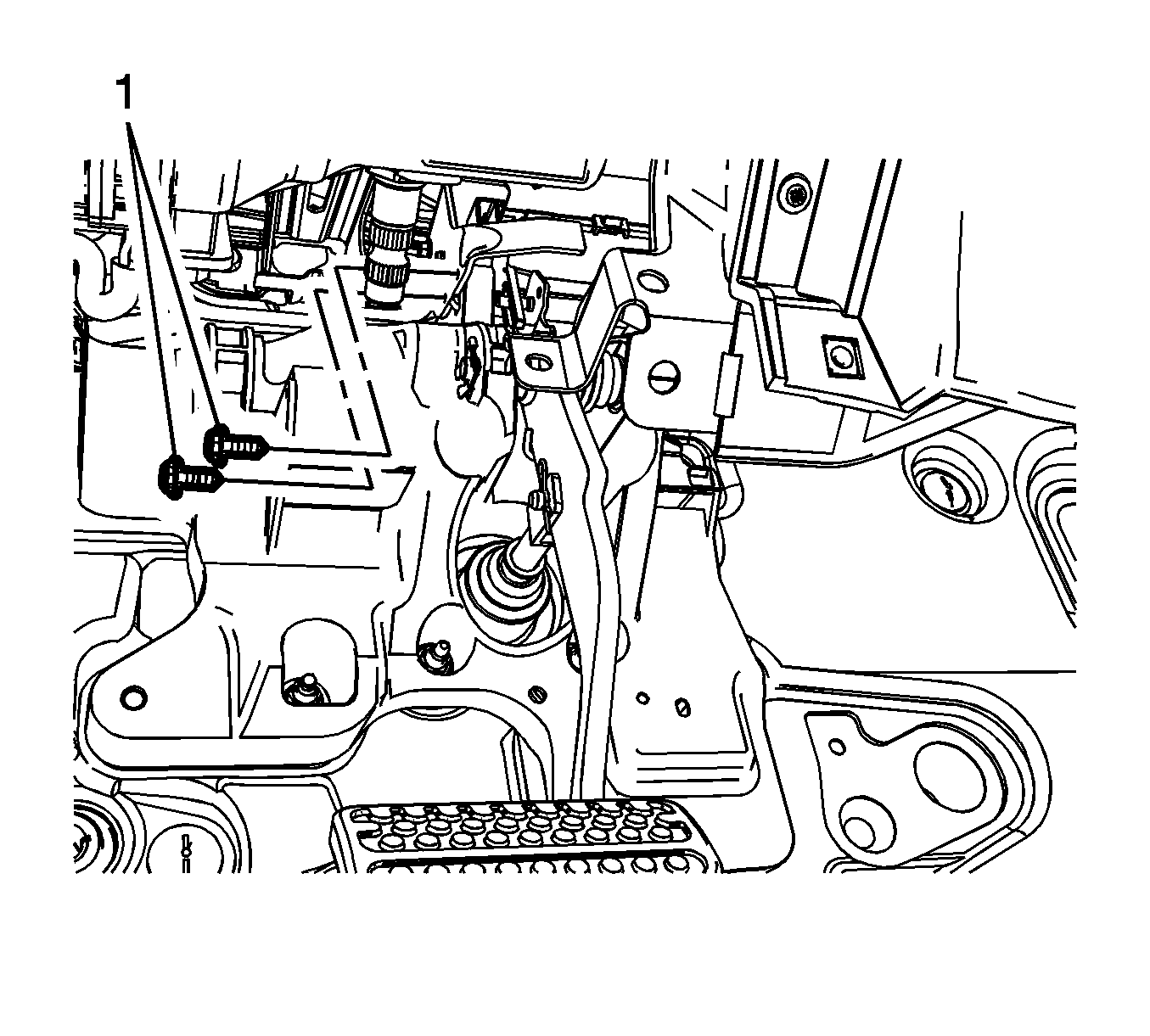

    Fig 2: Brake Pedal Position Sensor Bracket Bolts
    GM3349689Courtesy of GENERAL MOTORS COMPANY
  4. Install the brake pedal position sensor bracket bolts (1) and tighten to 3 N.m (27 lb in).
  5. Connect the brake pedal position sensor electrical connector.
  6. Install the intermediate steering shaft (1). Refer to Intermediate Steering Shaft Replacement .

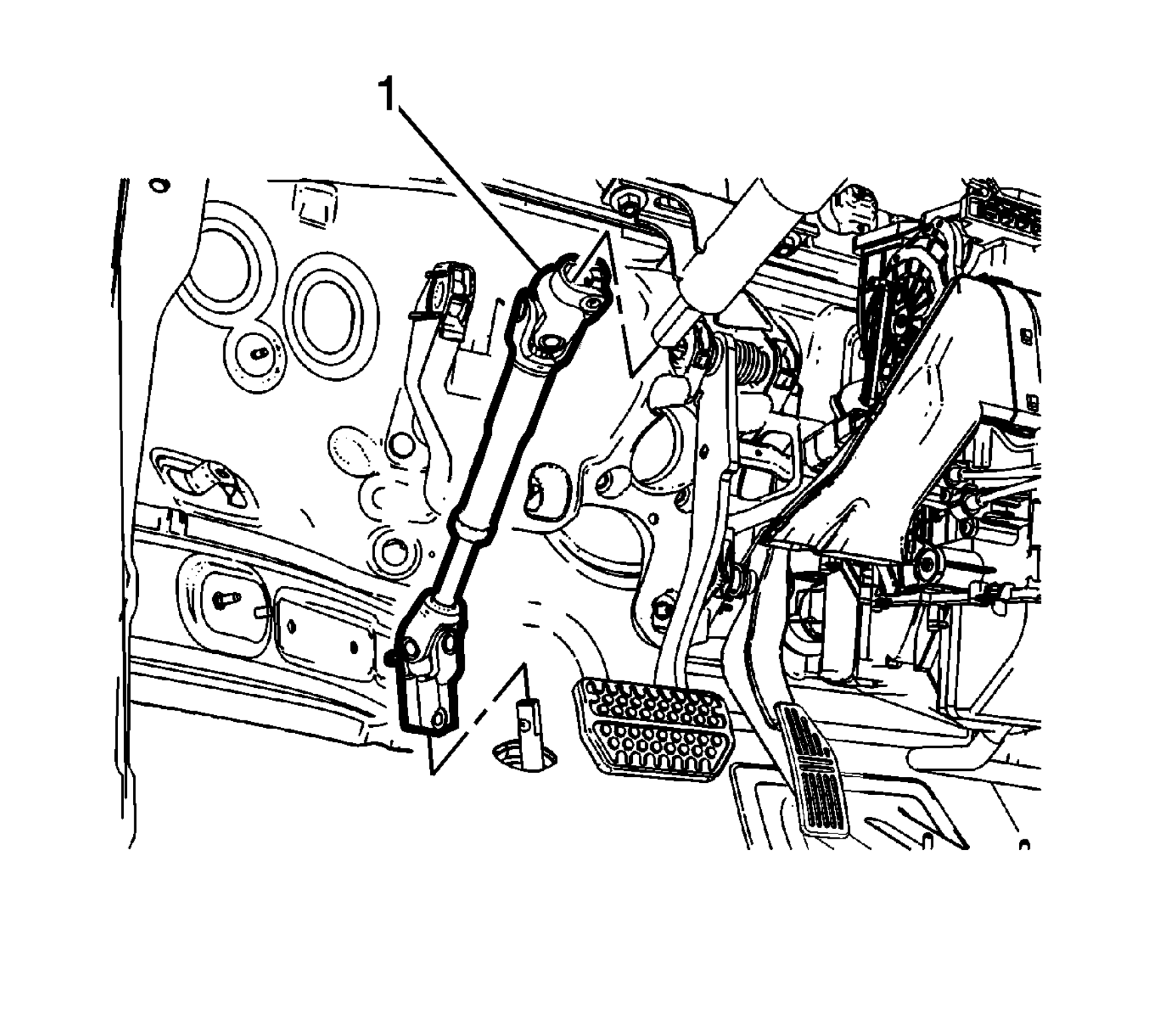

    Fig 3: Intermediate Steering Shaft
    GM3239974Courtesy of GENERAL MOTORS COMPANY
  7. Install the instrument panel lower reinforcement bracket. Refer to Instrument Panel Lower Reinforcement Bracket Replacement .
  8. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
