Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
- Install the brake caliper to the brake caliper bracket.

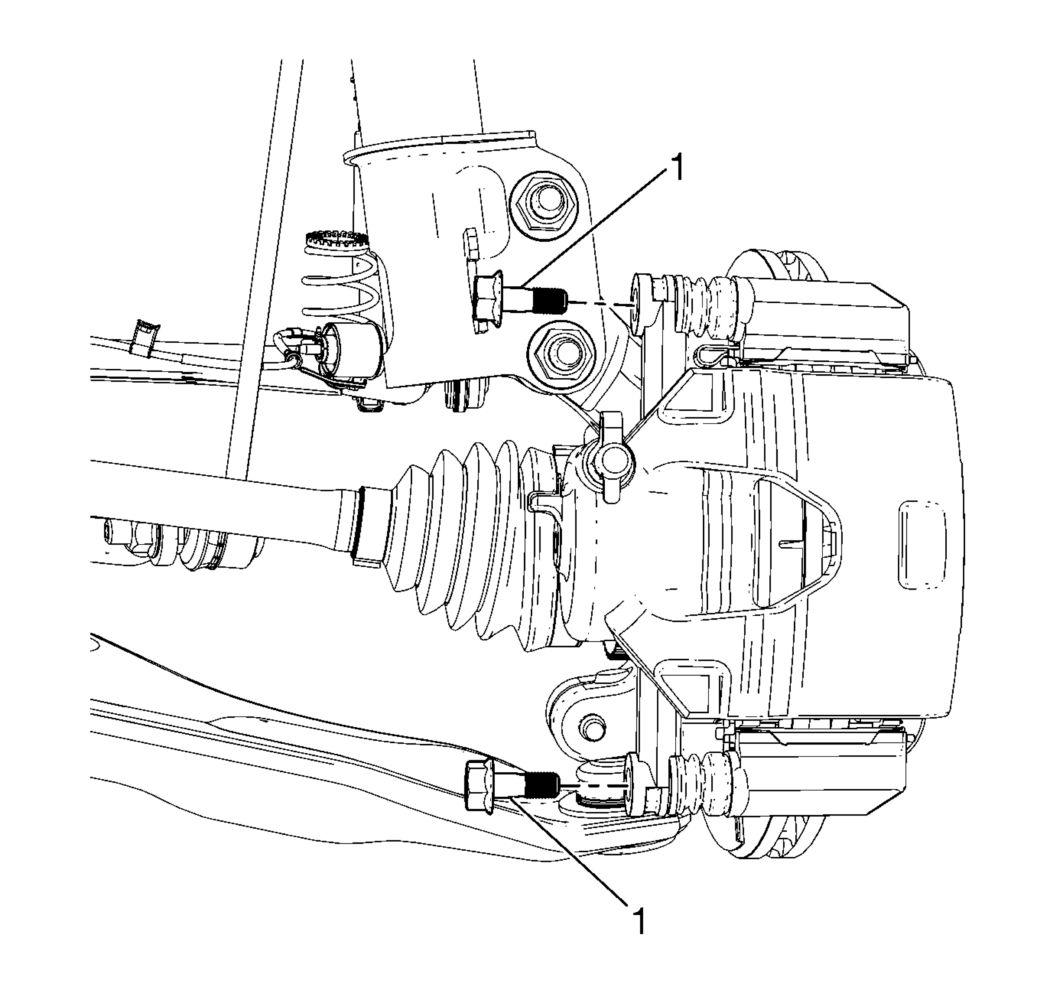

- Install the brake caliper guide pin bolts (1) and tighten to 28 N.m (21 lb ft).CAUTION: Refer to Fastener Caution .
- Remove the caps or plugs from the brake caliper opening and the brake hose (3).

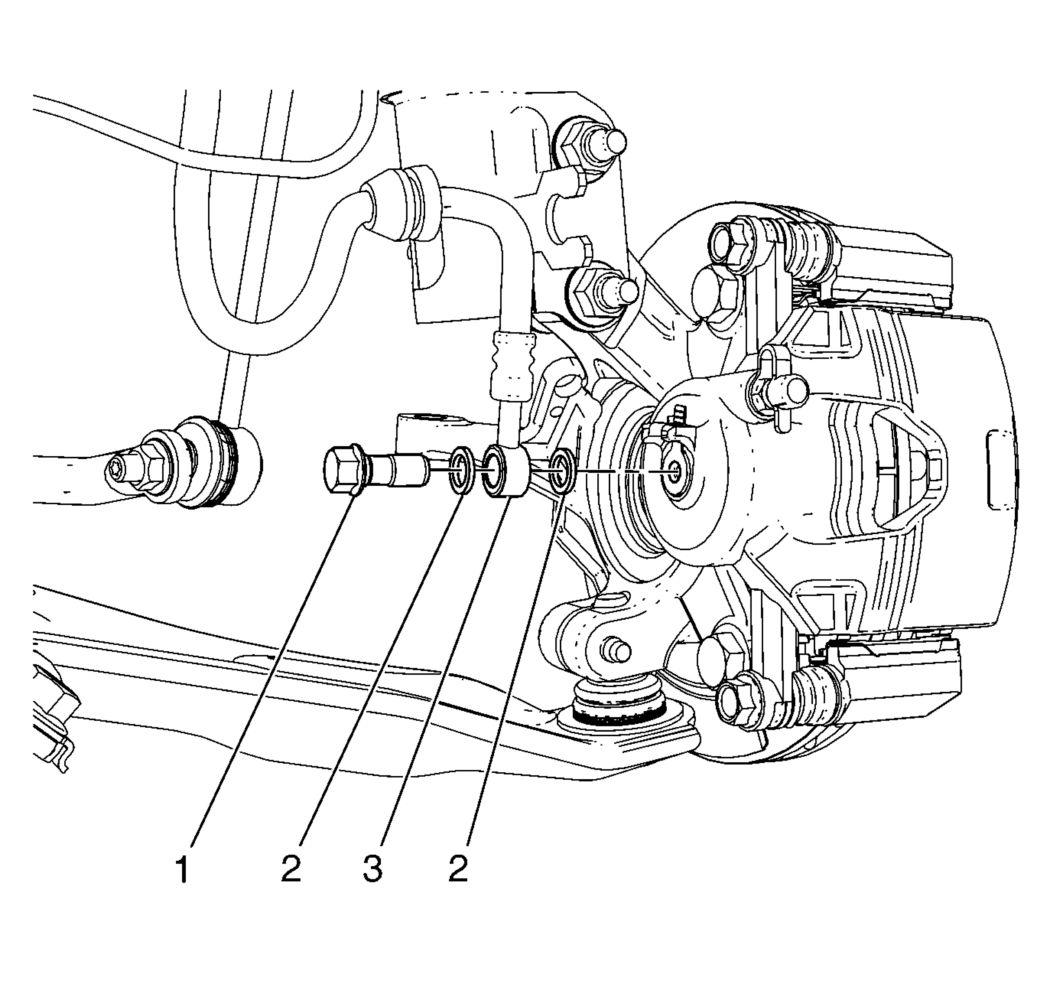

- Install NEW copper brake hose washers (2) to the brake hose-to-caliper bolt (1) and to the brake hose (3).NOTE: Do not reuse the copper brake hose washers.
- Install the brake hose (3) and the brake hose-to-caliper bolt (1) to the brake caliper and tighten to 40 N.m (30 lb ft).
- Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) and Hydraulic Brake System Bleeding (Pressure) .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then gradually apply the brake pedal approximately 2/3 of its travel distance again until a firm brake pedal apply is obtained. This will properly seat the brake caliper pistons and brake pads.
