Air Cleaner Assembly Replacement

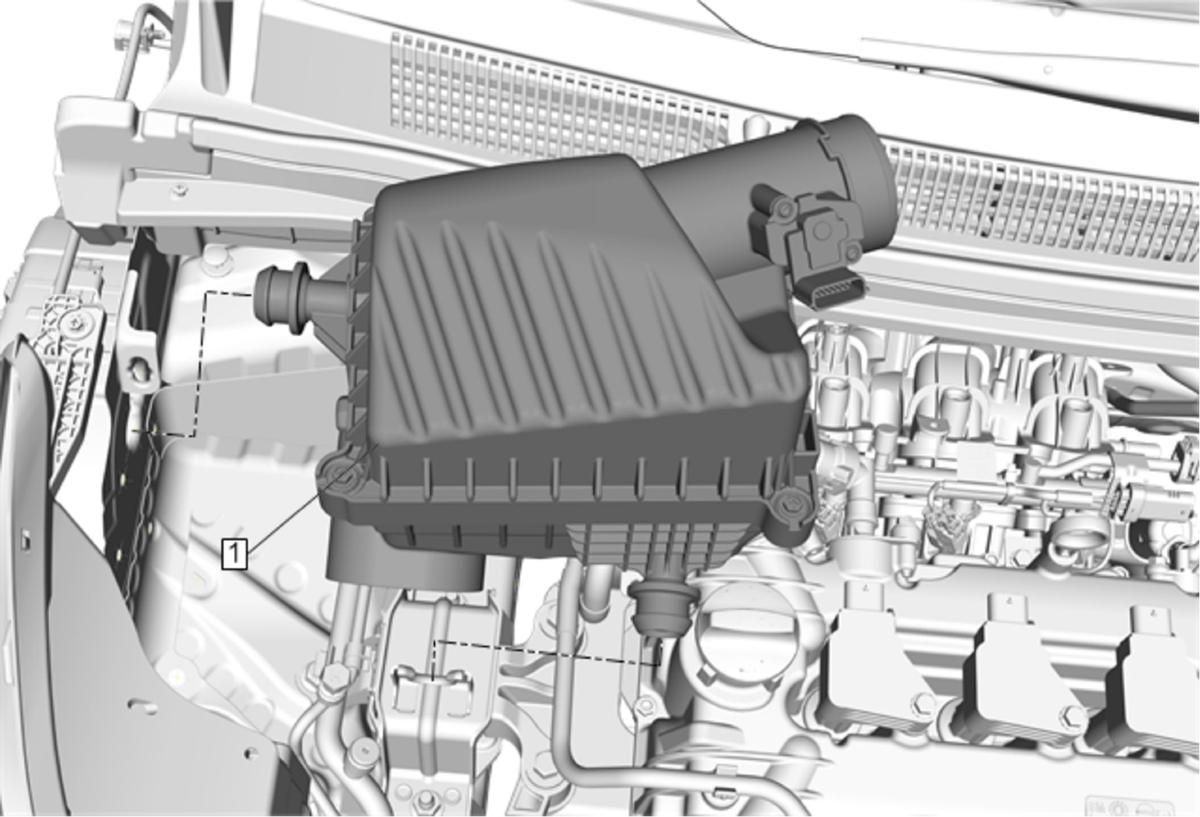

Fig 1: Air Cleaner Assembly
GM4013527Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Open the hood and disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Loosen the air cleaner outlet duct clamp from the air cleaner assembly.
1 Air Cleaner Assembly

Procedure

  1. Disconnect the electrical wiring harness connector.
  2. Remove the air cleaner assembly by first pulling upward to release the assembly from the rubber grommets and then pulling outward from the fender.
