Fuel Injector Replacement
Fuel Injector Replacement

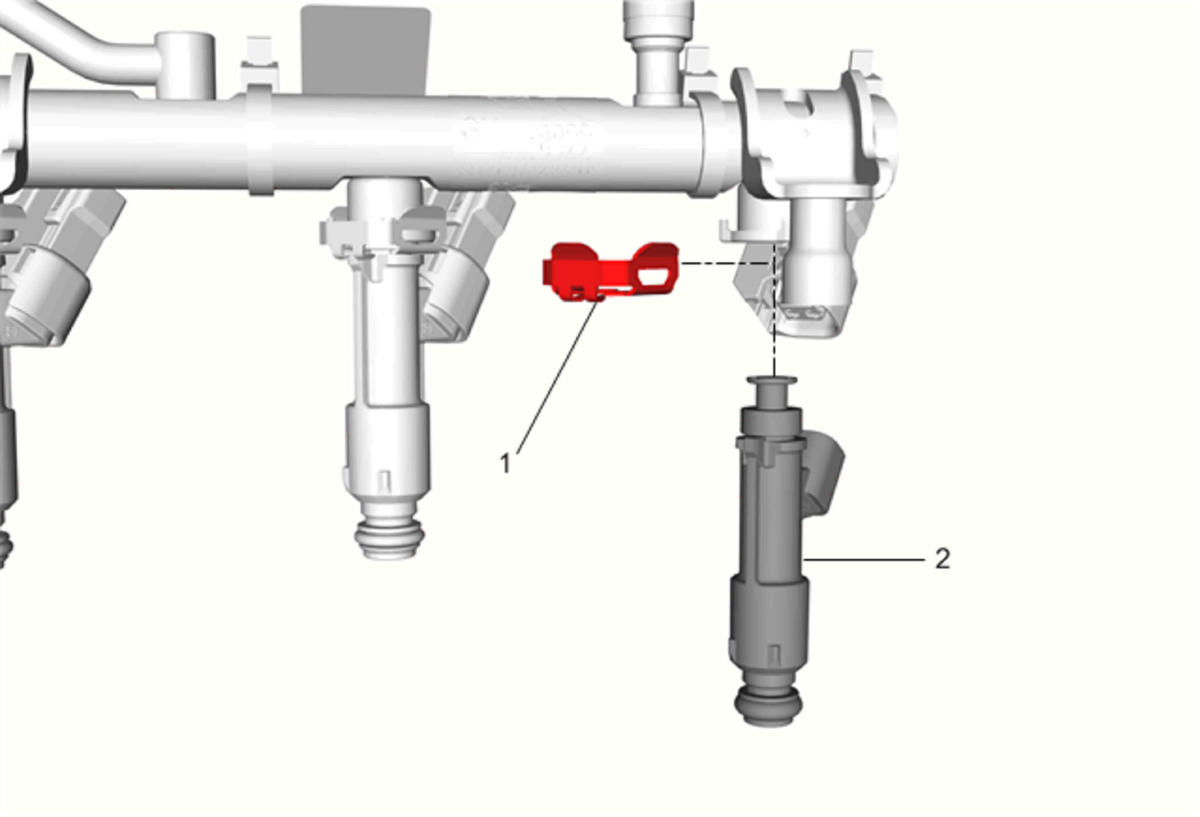

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the fuel rail. Refer to Fuel Injection Fuel Rail Assembly Replacement (L5Q) Fuel Injection Fuel Rail Assembly Replacement (LV7) . |
|
| 1 | Fuel Injector Retainer Clip (Qty: 3) Procedure Remove the fuel injector retainer clip. |
| 2 | Fuel Injector (Qty: 3) Procedure Disconnect the fuel injector pulling down. |
