Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Comprehensive Safety - Front Short Range Radar (UVZ)
Comprehensive Safety - Front Short Range Radar (UVZ)

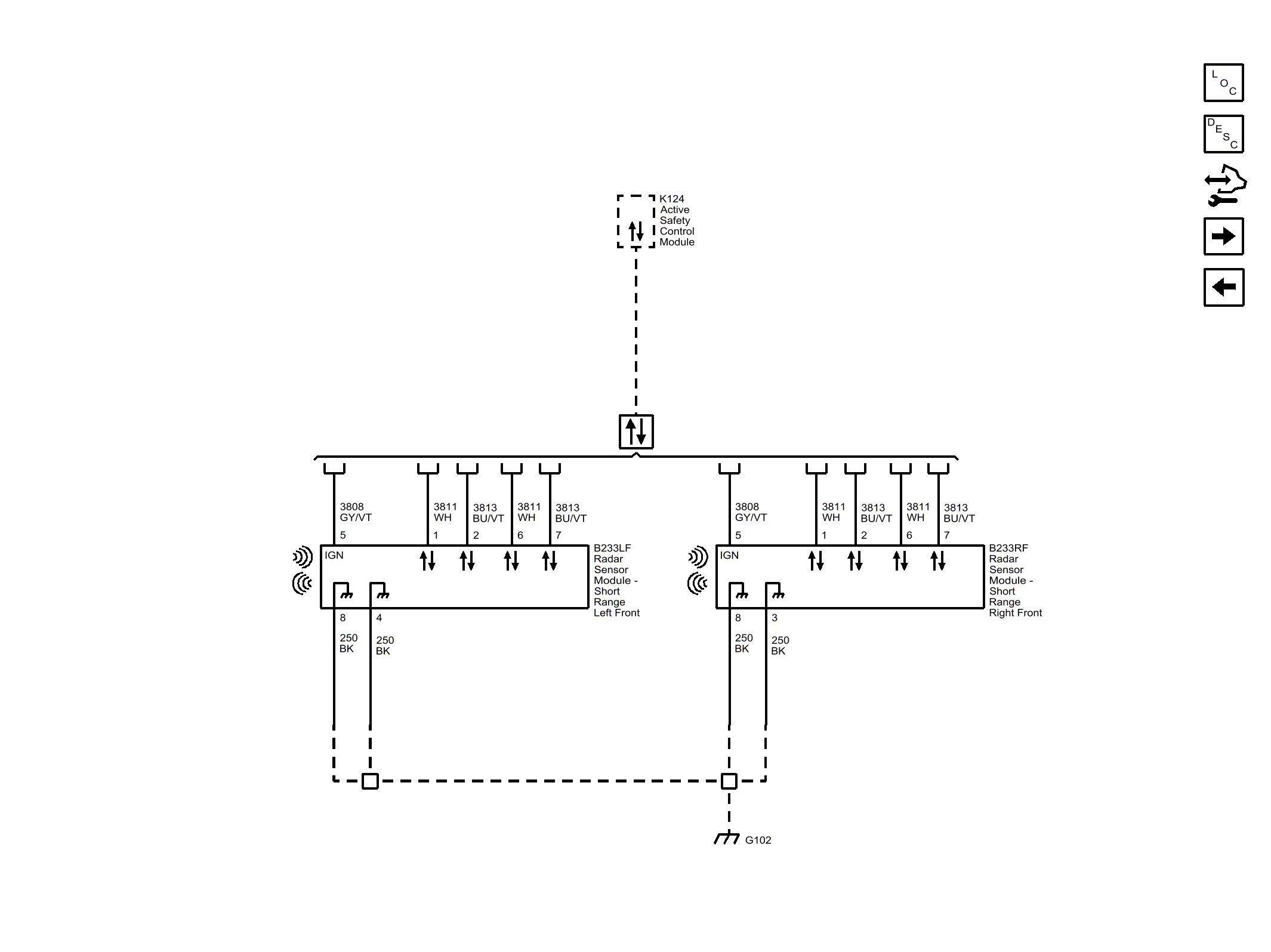

Fig 1: Comprehensive Safety - Front Short Range Radar (UVZ)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
