Comprehensive Safety - Power, Ground, Serial Data, and Multifunction Switch (UGN+Z75)

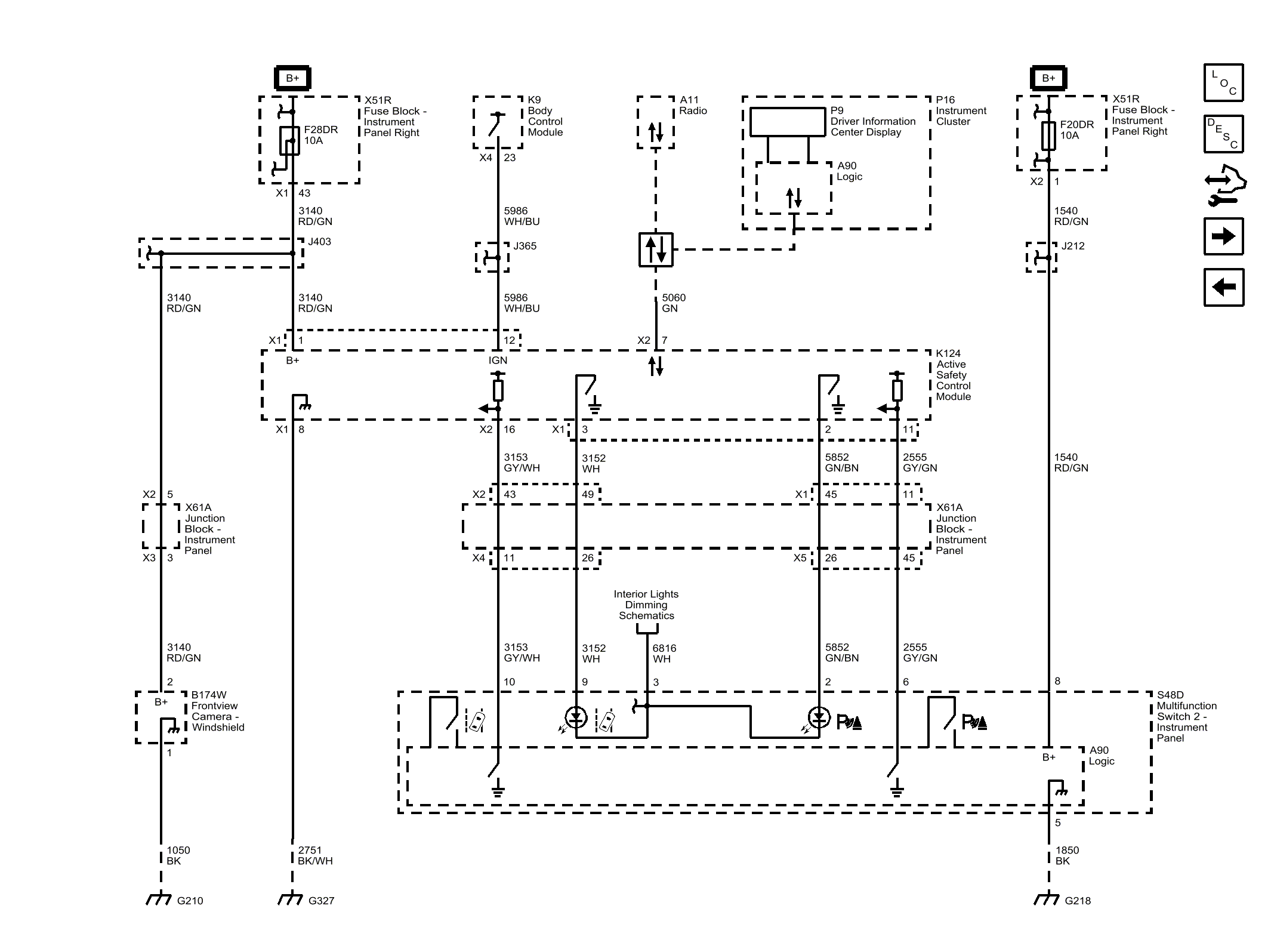

Fig 1: Comprehensive Safety - Power, Ground, Serial Data, and Multifunction Switch (UGN+Z75)
GM4074140Courtesy of GENERAL MOTORS COMPANY
