Folding 3rd Row Seat Module Replacement

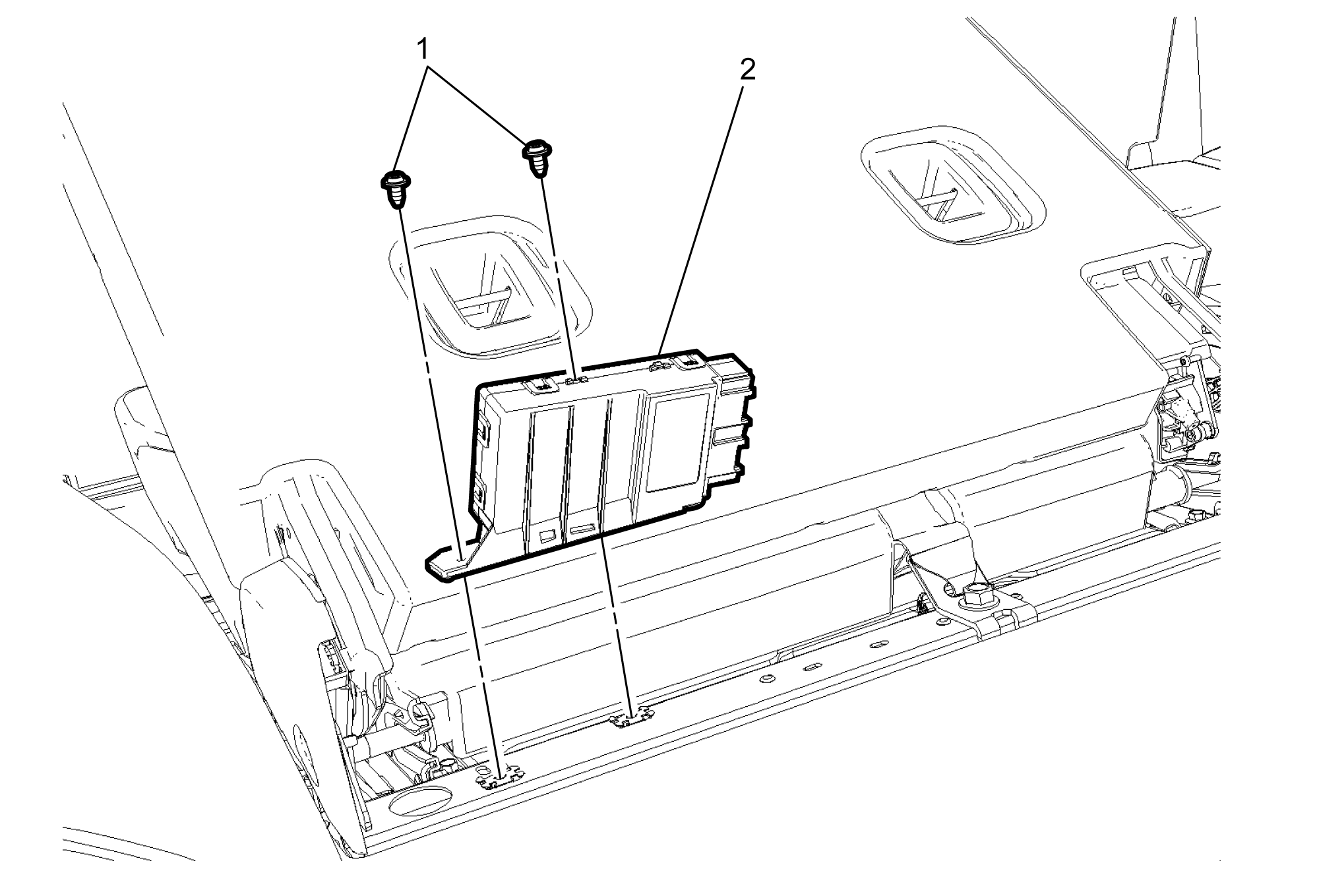

Fig 1: Folding 3rd Row Seat Module

GM3657612

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Fold the 3rd row 60% seat forward.
Remove the rear compartment floor stowage trim compartment. Refer to Rear Compartment Floor Stowage Trim Compartment Replacement (Standard Wheelbase)Rear Compartment Floor Stowage Trim Compartment Replacement (Extended Wheelbase) .

1

Folding 3rd Row Seat Module Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Folding 3rd Row Seat Module

Procedure

Disconnect the electrical connectors.
After the installation is complete, perform the Diagnostic System Check - Vehicle .
