Front Side Door Window Regulator Motor Replacement

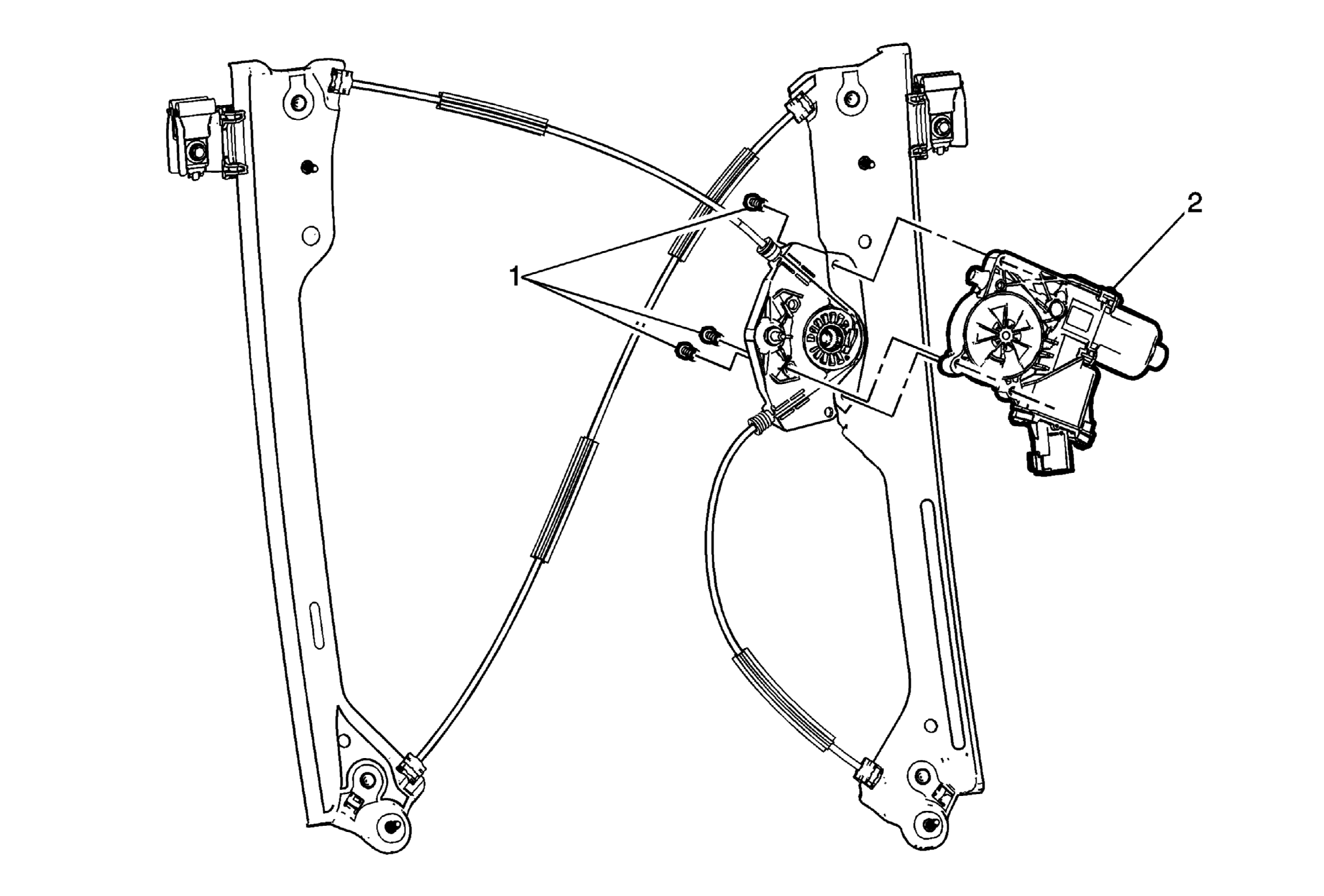

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Bolt (Qty: 3) Tighten 7 N.m (62 lb in)
2	Front Side Door Window Regulator Motor NOTE: Inspect the door window for proper operation before installing the door trim.
