Multimedia Receptacle Replacement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Chevrolet / GMC)Front Floor Console Front Compartment Replacement (Cadillac) . |
|

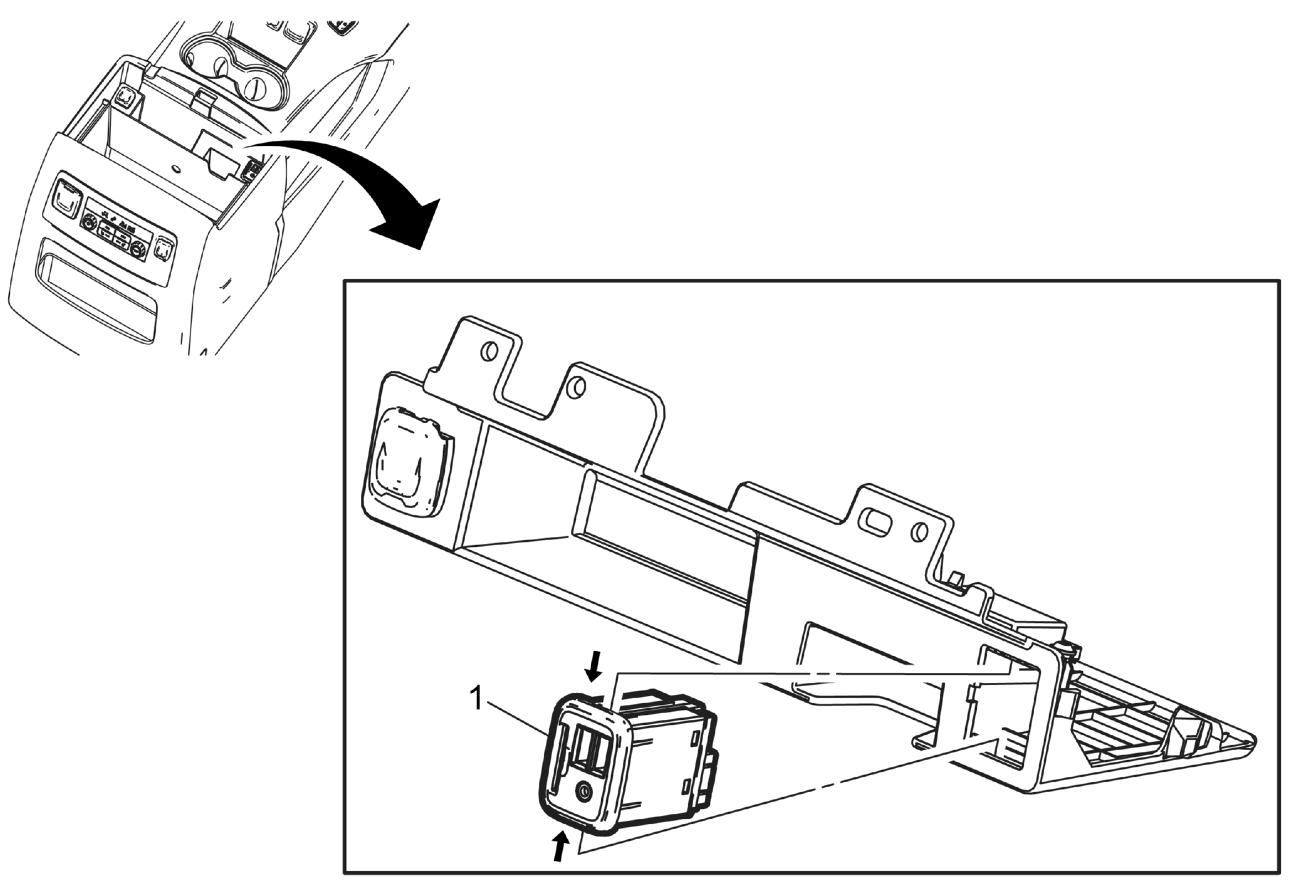

| 1 | Multimedia Receptacle Procedure Depress the tabs on the receptacle to remove. |
