Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 GMC Yukon XL, 2015 GMC Yukon, 2015 Chevrolet Tahoe, 2015 Chevrolet Suburban, and 2015 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the aid of an assistant, maneuver the differential carrier so that the wheel drive shafts can be installed.

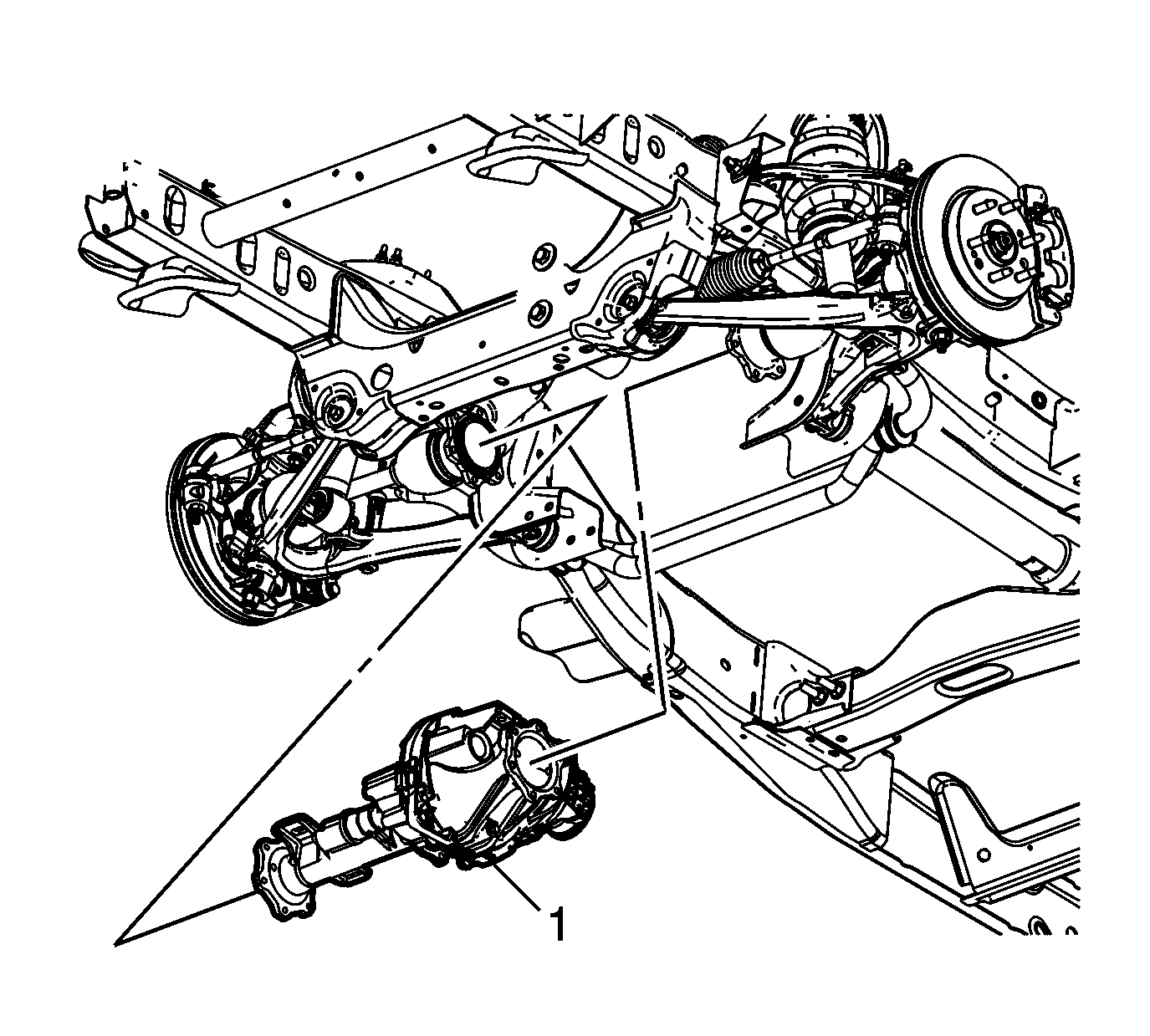

    2. Fig 1: Differential Carrier Assembly
    GM3635897Courtesy of GENERAL MOTORS COMPANY
  2. Install the differential carrier assembly (1).

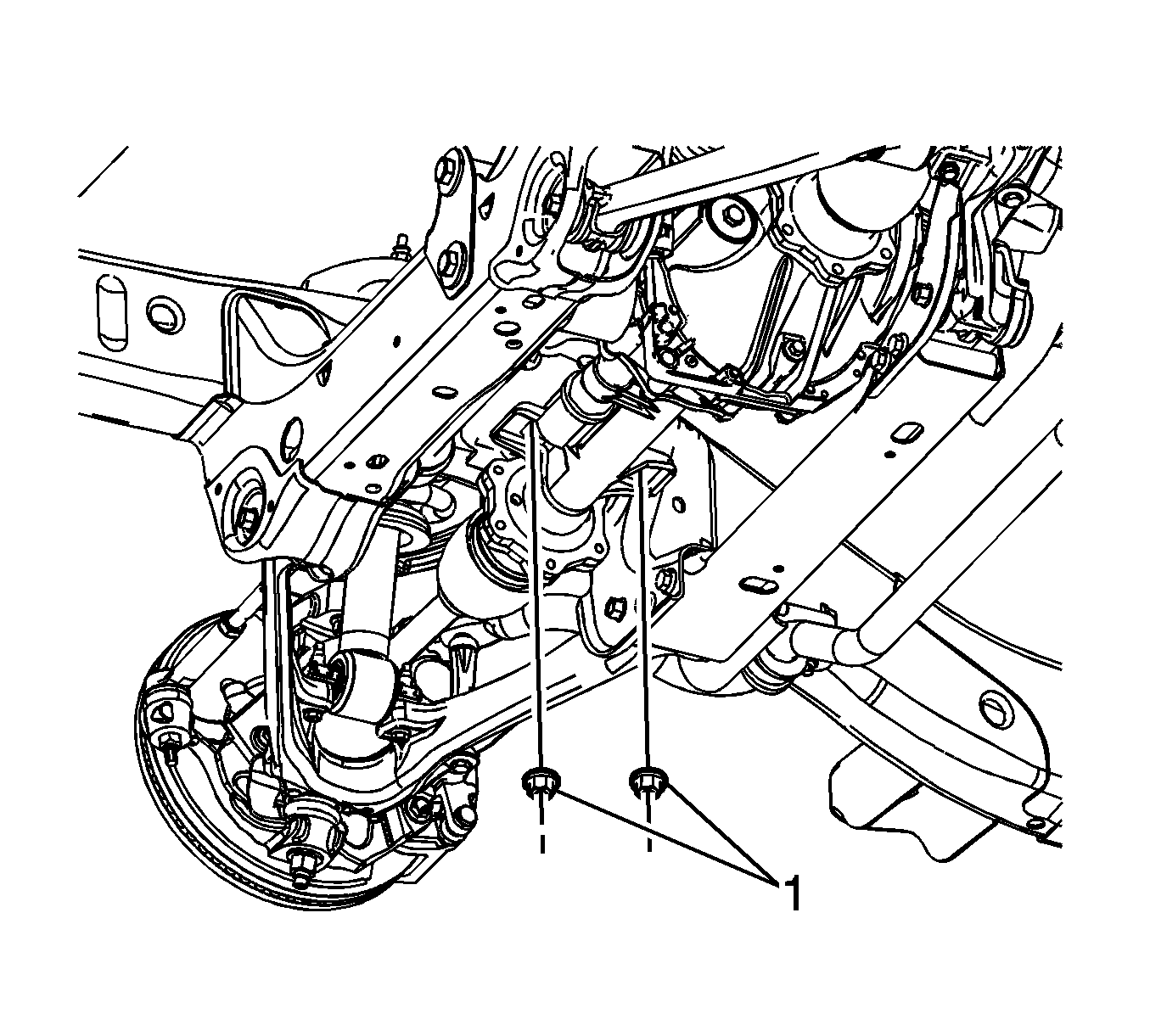

    3. Fig 2: View Of Right Differential Carrier Mounting Nuts & Washers
    GM1751768Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the right side mounting nuts and washers (1).

    Tighten

    Tighten the mounting nuts to 100 N.m (75 lb ft).

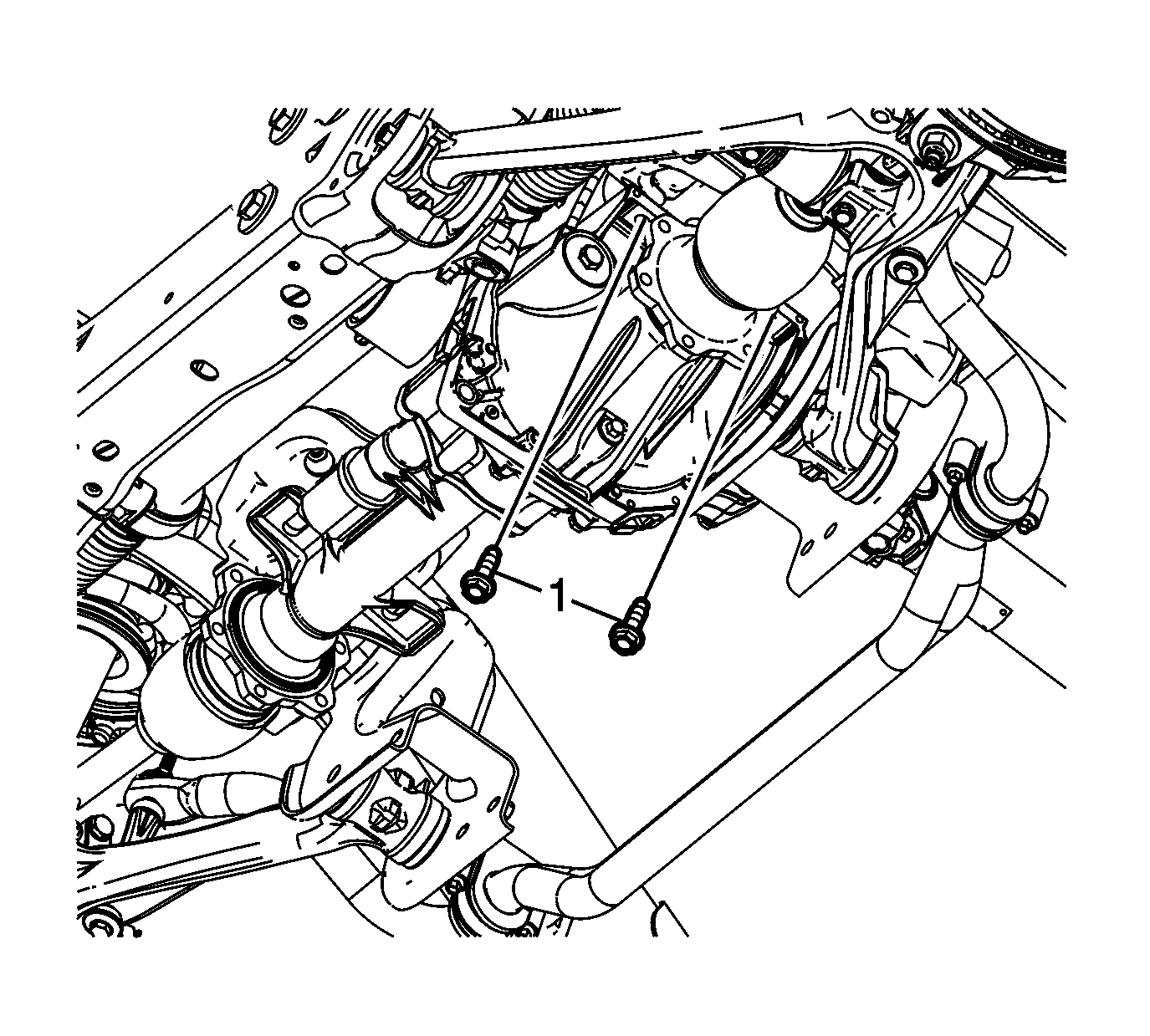

    4. Fig 3: Left Side Differential Carrier Mounting Bolts
    GM3635894Courtesy of GENERAL MOTORS COMPANY
  4. Install the left side mounting bolts (1) for the differential carrier.

    Tighten

    Tighten the mounting nuts to 100 N.m (75 lb ft).

  5. Remove the transmission jack stand.
  6. Install the propeller shaft. Refer to Front Axle Propeller Shaft Replacement (NP0)Front Axle Propeller Shaft Replacement (NQH) .

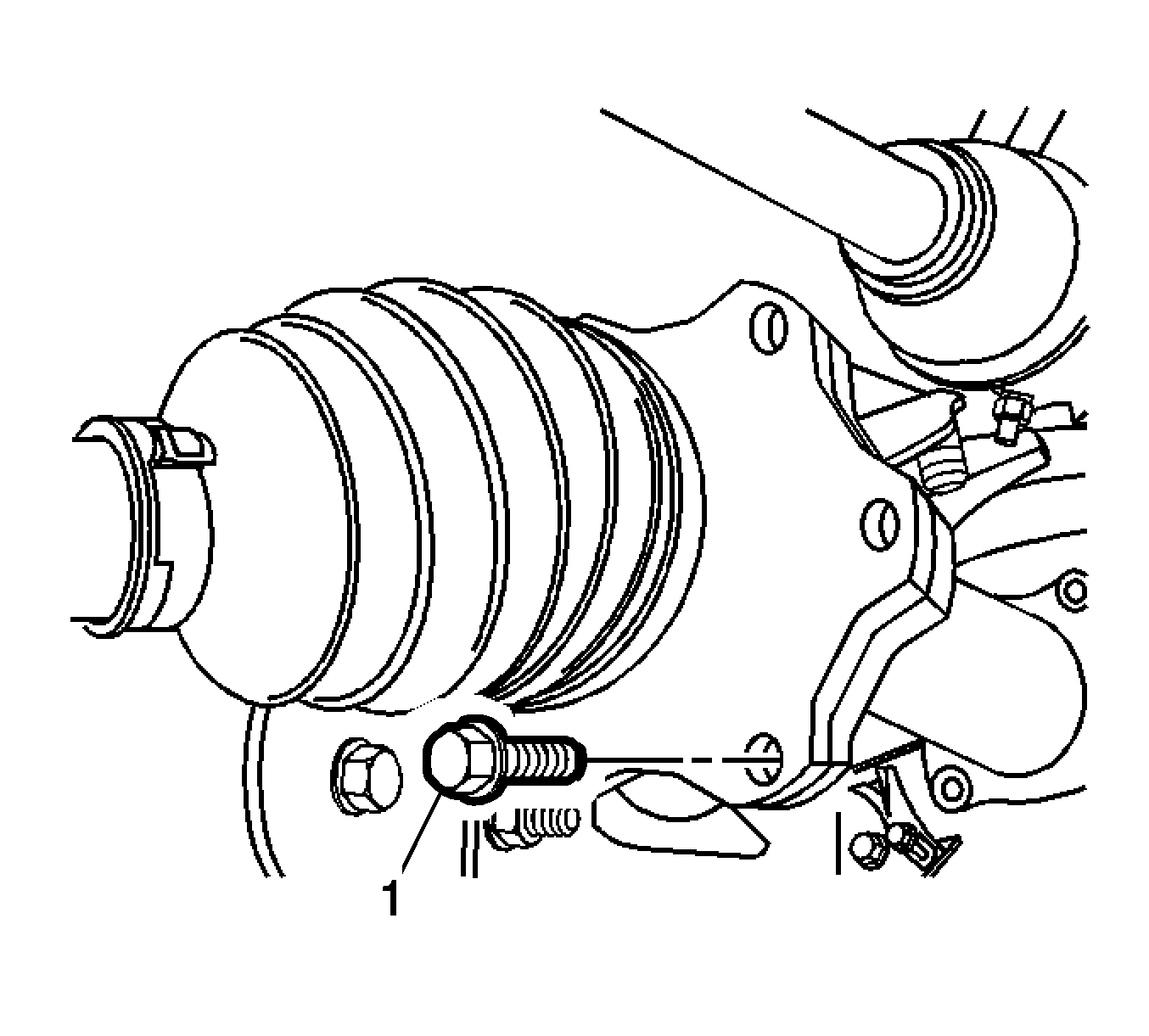

    7. Fig 4: View Of Wheel Drive Shaft Inboard Flange Bolt - Front Drive Axle
    GM763646Courtesy of GENERAL MOTORS COMPANY
  7. Install the wheel drive shaft mounting bolts (1).

    Tighten

    Tighten the mounting bolts to 79 N.m (58 lb ft).

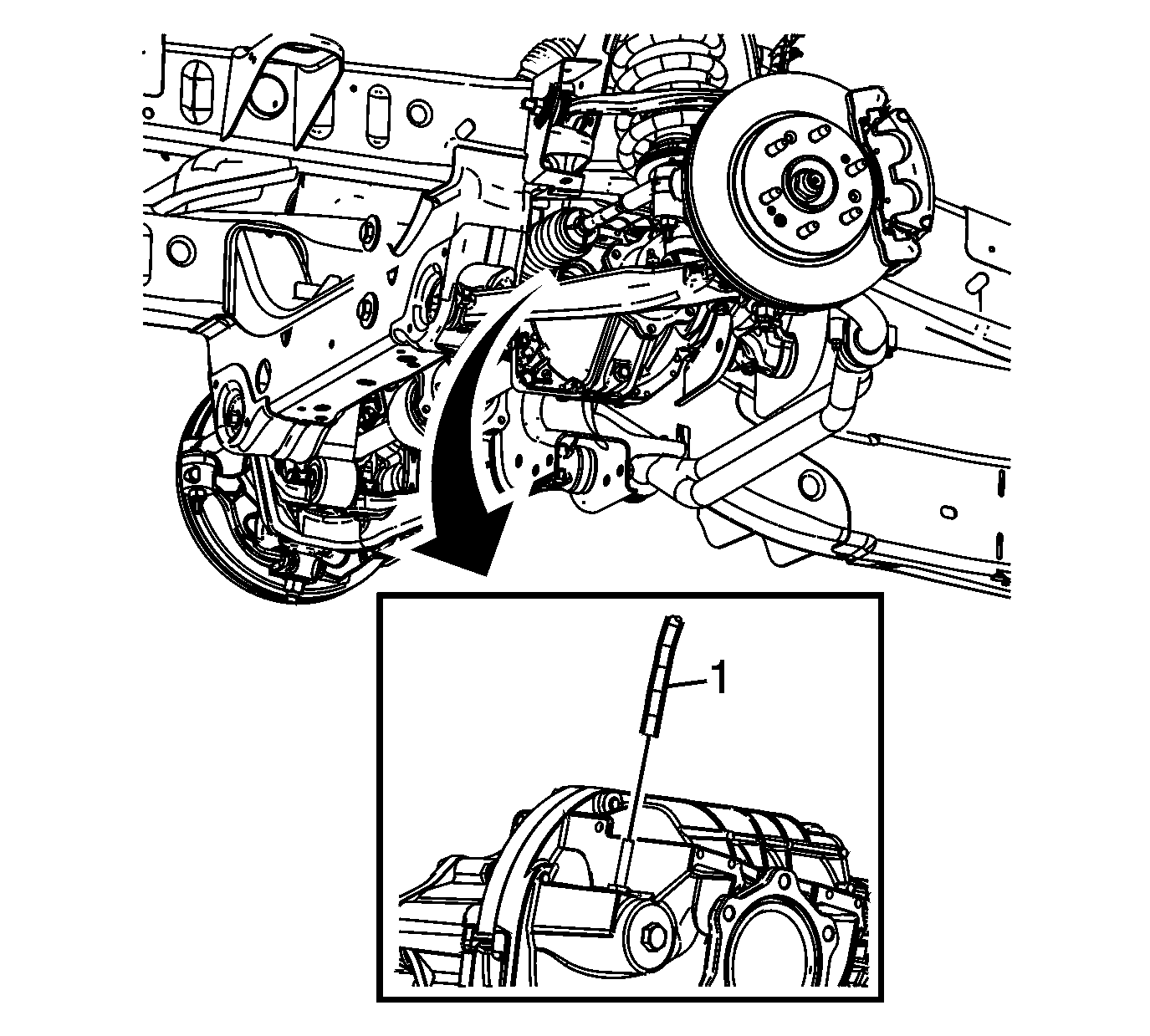

    8. Fig 5: Differential Carrier Vent Hose
    GM3635880Courtesy of GENERAL MOTORS COMPANY
  8. Install the differential carrier vent hose (1).

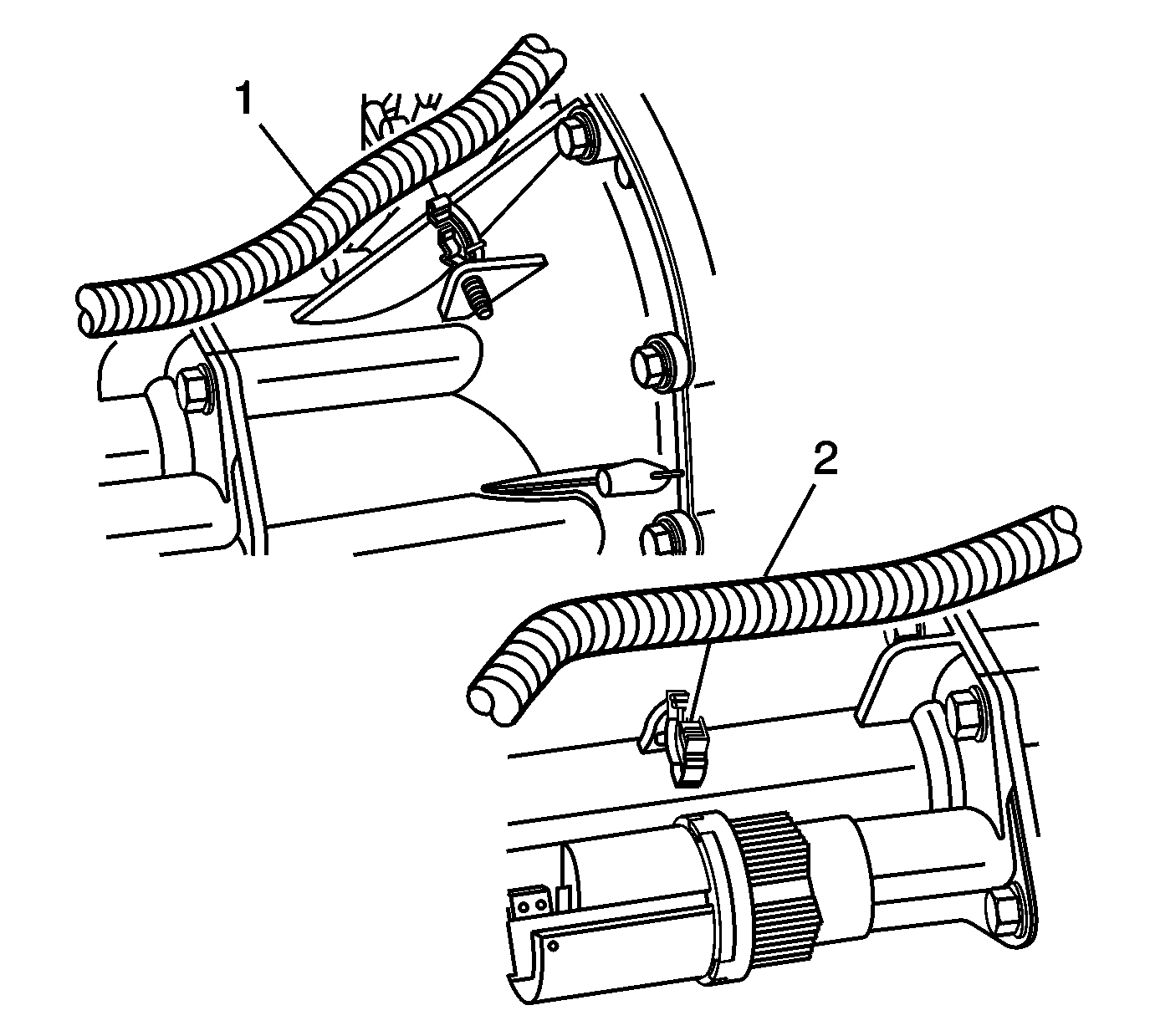

    9. Fig 6: Wiring Harness From Differential Carrier
    GM3635883Courtesy of GENERAL MOTORS COMPANY
  9. Install the wiring harness on the differential carrier (1 and 2), if needed.

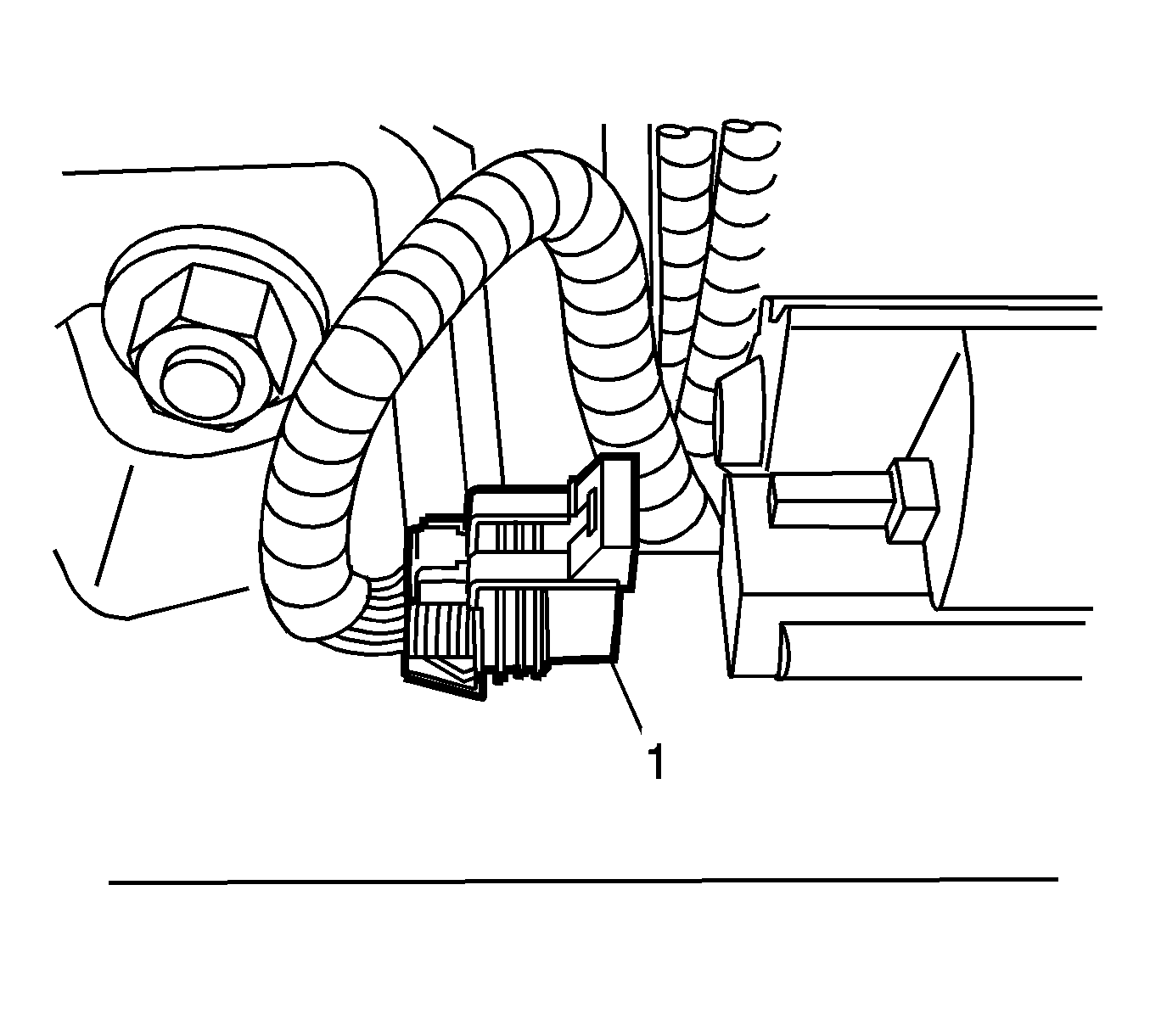

    10. Fig 7: Front Axle Actuator Electrical Connector
    GM834234Courtesy of GENERAL MOTORS COMPANY
  10. Install the electrical connector (1) to the actuator motor, if needed.
  11. Install the lower control arm crossmember. Refer to Drivetrain and Front Suspension Frame Front Crossmember Replacement .
  12. Fill the differential carrier. Refer to Front Axle Lubricant Replacement .
  13. Install the steering gear. Refer to Electric Belt Drive Rack and Pinion Steering Gear Replacement .
