Power Steering Pump Flow Control Valve Replacement - Off Vehicle

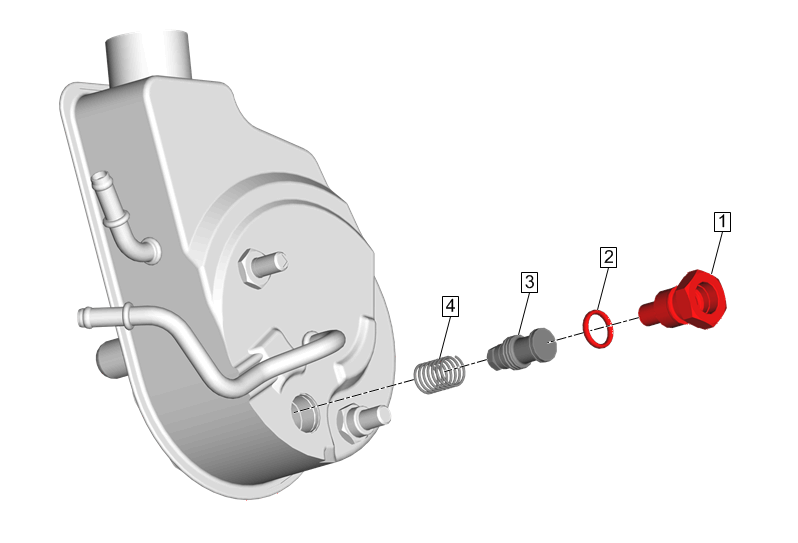

| Callout | Component Name |
|---|---|
| Preliminary Procedure Power Steering Pump Replacement (Heavy Duty) |
|
| 1 | Power Steering Pump Fitting
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 75 N.m (55 lb ft) |
| 2 | Power Steering Pump Fitting Seal Procedure
NOTE:
Apply NEW power steering fluid to the power steering pump fitting seal to aid in installation. |
| 3 | Power Steering Pump Flow Control Valve |
| 4 | Power Steering Pump Flow Control Valve Spring |
