Front Floor Console Compartment Replacement

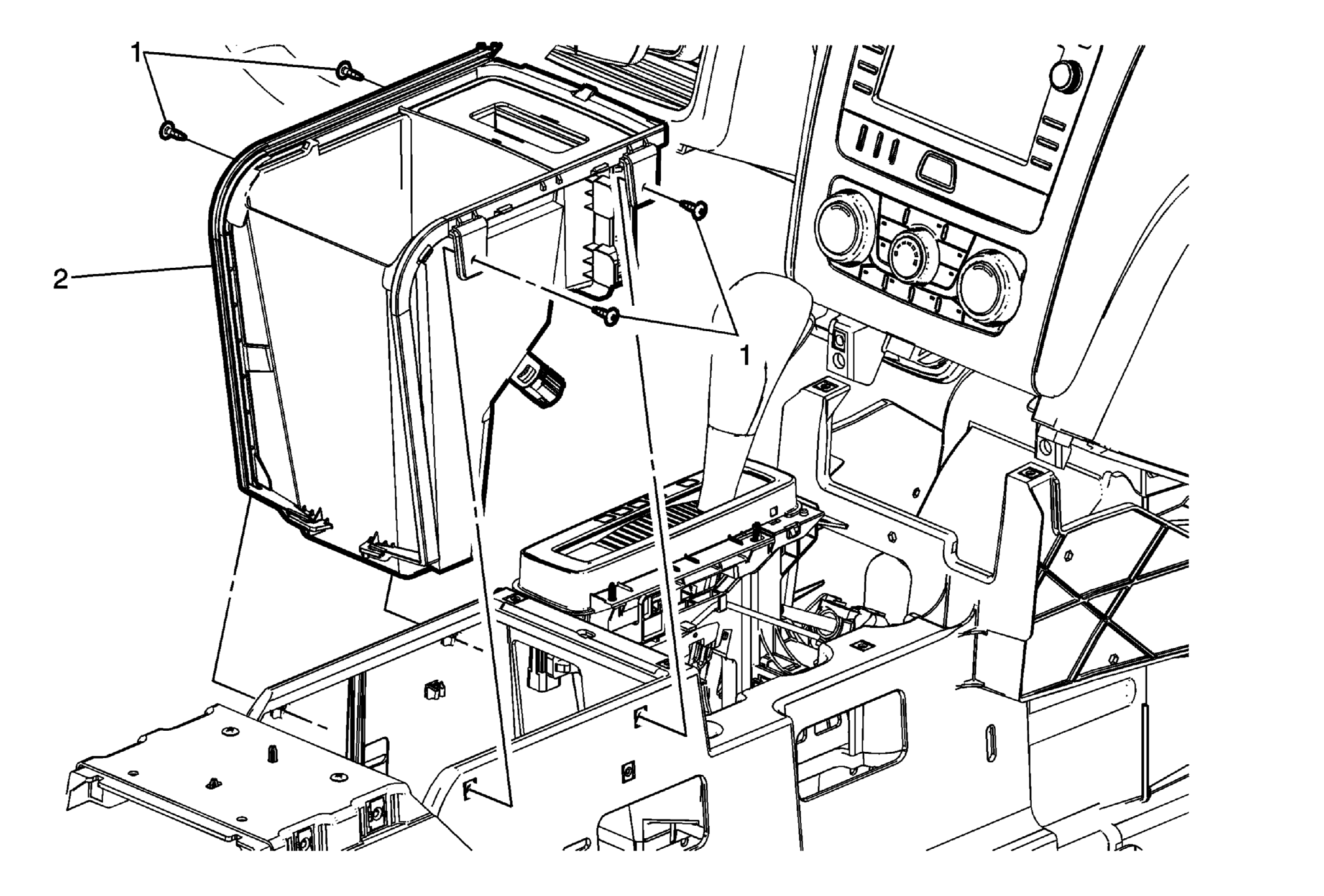

Fig 1: Front Floor Console Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console cover. Refer to Front Floor Console Cover Replacement .
1	Front Floor Console Compartment Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Front Floor Console Compartment Procedure  Disconnect all electrical connectors.
