Rear Side Door Window Regulator Replacement

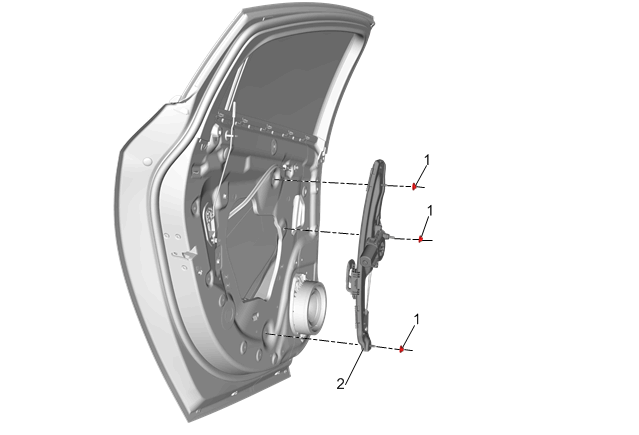

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Rear Side Door Armrest Pull Cup Bracket Replacement Remove the water deflector.
1	Rear Side Door Window Regulator Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Regulator Procedure After releasing the window from the regulator tape the window to the upper door frame before removing the regulator nuts. Disconnect the electrical connector. Transfer components as necessary. Inspect the window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedure

Rear Side Door Armrest Pull Cup Bracket Replacement
Remove the water deflector.

Rear Side Door Window Regulator Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Rear Side Door Window Regulator

Procedure

After releasing the window from the regulator tape the window to the upper door frame before removing the regulator nuts.
Disconnect the electrical connector.
Transfer components as necessary.
Inspect the window for proper operation before installing the door trim panel.
