Rear Side Door Window Replacement

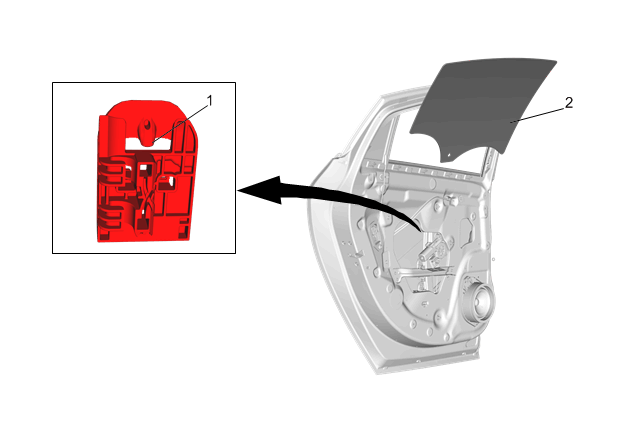

Fig 1: Rear Side Door Window
GM4089112Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Express Window Down Warning .

CAUTION:

Refer to Paint Damage Caution .

Preliminary Procedures

  1. Rear Side Door Window Weatherstrip Replacement
  2. Rear Side Door Armrest Pull Cup Bracket Replacement
  3. Rear Side Door Window Inner Sealing Strip Replacement
  4. Remove the water deflector.
  5. Rear Side Door Window Channel Rear Retainer Replacement
1 Rear Side Door Window Regulator Retainer
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Use masking tape to tape the window in the full up position to the door frame.
  2. Using the proper tool release the window from the regulator guide.
  3. Lower the window regulator full down.
  4. Remove the masking tape from the window.
  5. Remove the window from the door.
2 Rear Side Door Window
Inspect the window for proper operation before install the door trim panel.
