Installation Procedure

    Fig 1: Steering Column
    GM4116926Courtesy of GENERAL MOTORS COMPANY
  1. Position the steering column (1) on the vehicle.

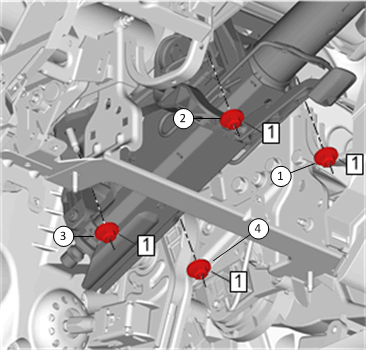

    2. Fig 2: Steering Column Nut
    GM4116922Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Steering Column Nut (1) and tighten 22 N.m (16 lb ft)
  3. Connect the steering column electrical connectors.
    4. Fig 3: Intermediate Steering Shaft
    GM4116920Courtesy of GENERAL MOTORS COMPANY
  4. Install Intermediate Steering Shaft (1) @Steering Column -Intermediate Steering Shaft Replacement
    5. Fig 4: Steering Column Lower Trim Cover
    GM4116915Courtesy of GENERAL MOTORS COMPANY
  5. Install Steering Column Lower Trim Cover (1) -Steering Column Lower Trim Cover Replacement
    6. Fig 5: Floor Front Air Outlet Duct - Left Side
    GM4116912Courtesy of GENERAL MOTORS COMPANY
  6. Install Floor Front Air Outlet Duct - Left Side (1) -Floor Front Air Outlet Duct Replacement - Left Side
    7. Fig 6: Instrument Panel Lower Airbag - Driver Side
    GM4116910Courtesy of GENERAL MOTORS COMPANY
  7. Install Instrument Panel Lower Airbag - Driver Side (1) -Instrument Panel Lower Airbag Replacement - Driver Side
    8. Fig 7: Instrument Panel Knee Bolster
    GM4116907Courtesy of GENERAL MOTORS COMPANY
  8. Install Instrument Panel Knee Bolster (1) -Instrument Panel Knee Bolster Replacement
  9. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
