Installation Procedure

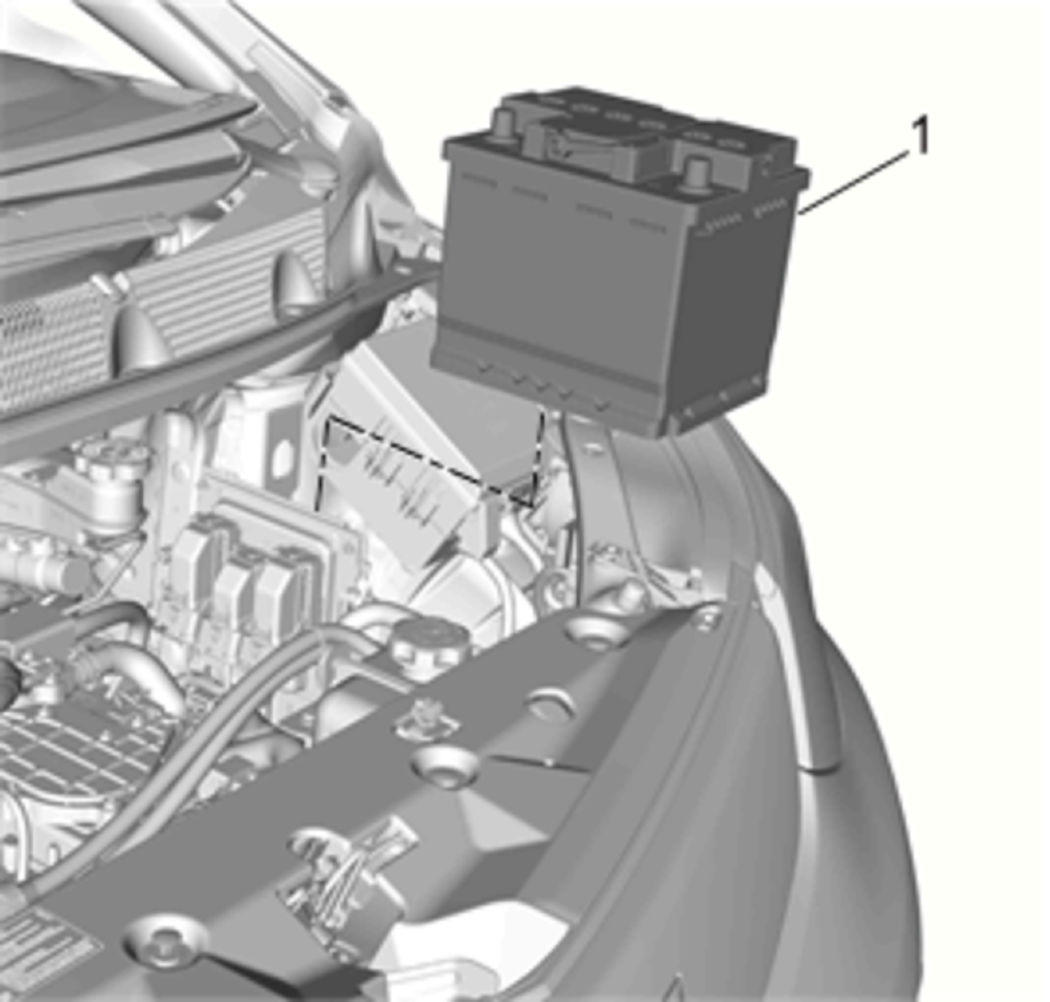

    Fig 1: Battery
    GM4546929Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery (1)

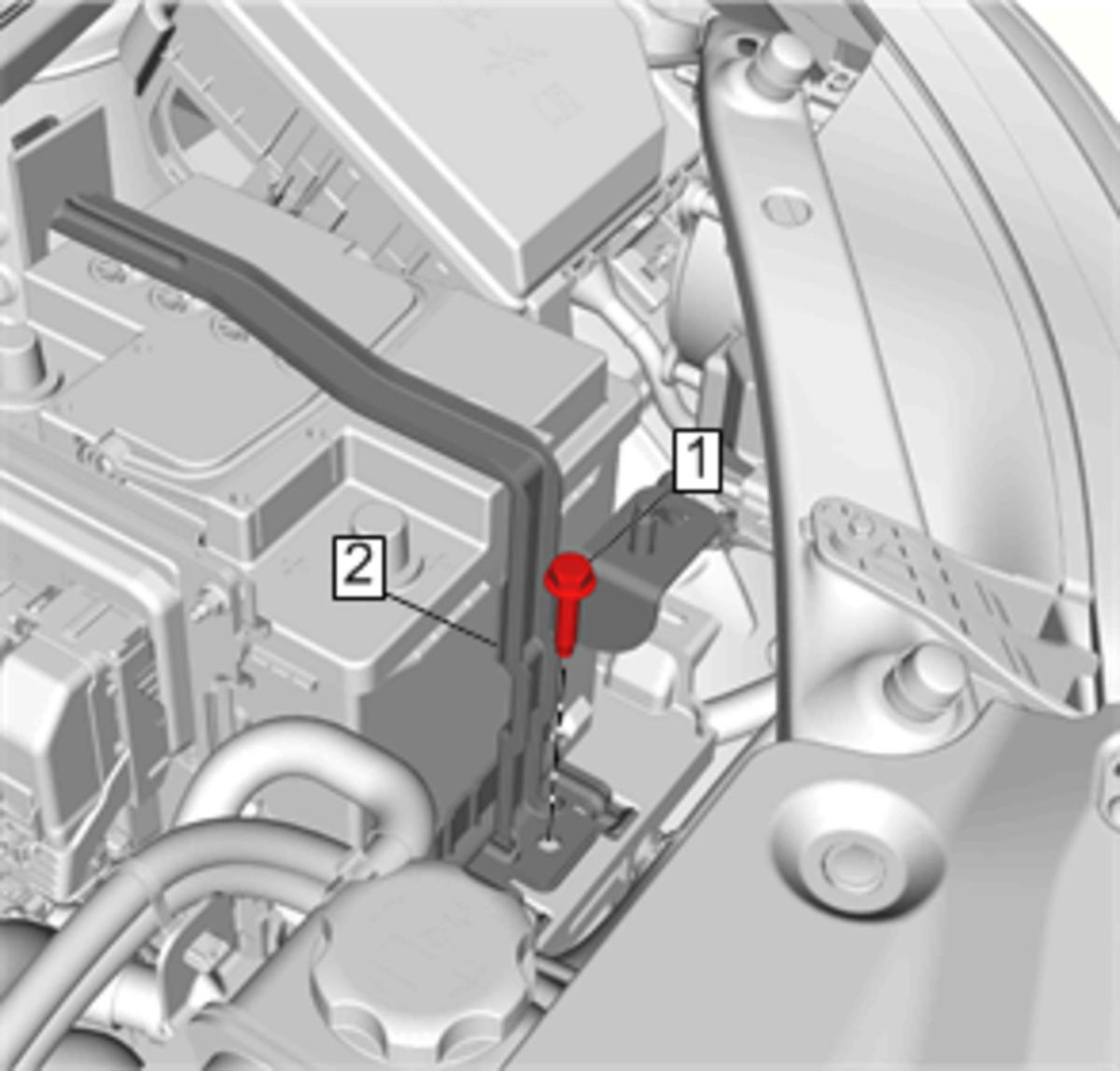

    2. Fig 2: Battery Retainer Assembly Bolt And Assembly
    GM4546928Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Battery Retainer Assembly (2)
  3. Install Battery Retainer Assembly Bolt (1) and tighten 8 N.m (71 lb in)
    4. Fig 3: Battery Tray Support Nut
    GM4546927Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Tray Support (2)
  5. Install Battery Tray Support Nut (1) and tighten 9 N.m (80 lb in)
    6. Fig 4: Battery Positive Cable Protective Cover
    GM4546926Courtesy of GENERAL MOTORS COMPANY
  6. Install Battery Positive Cable (3) @ Battery Post
  7. Install Battery Positive Cable Clamp Fastener and tighten 5 N.m (44 lb in)
  8. Install Battery Positive Cable Protective Cover (1)
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection .
