Installation Procedure

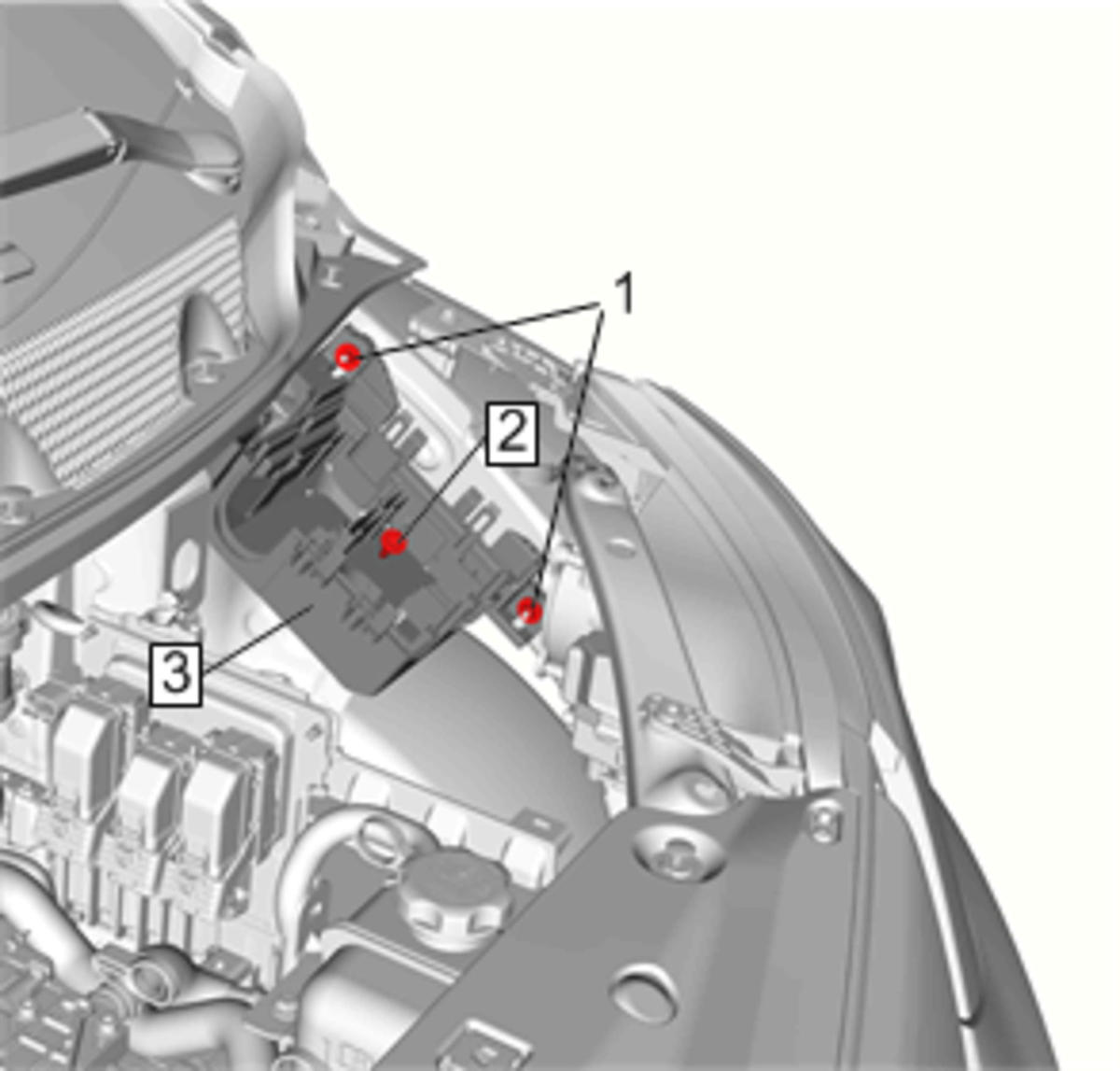

    Fig 1: Engine Wiring Harness Fuse Block Bracket Nut
    GM4595491Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install Engine Wiring Harness Fuse Block Bracket (3)
  2. Install Engine Wiring Harness Fuse Block Bracket Bolt (2) and tighten 9 N.m (80 lb in)
  3. Install Engine Wiring Harness Fuse Block Bracket Nut (1) and tighten 9 N.m (80 lb in)

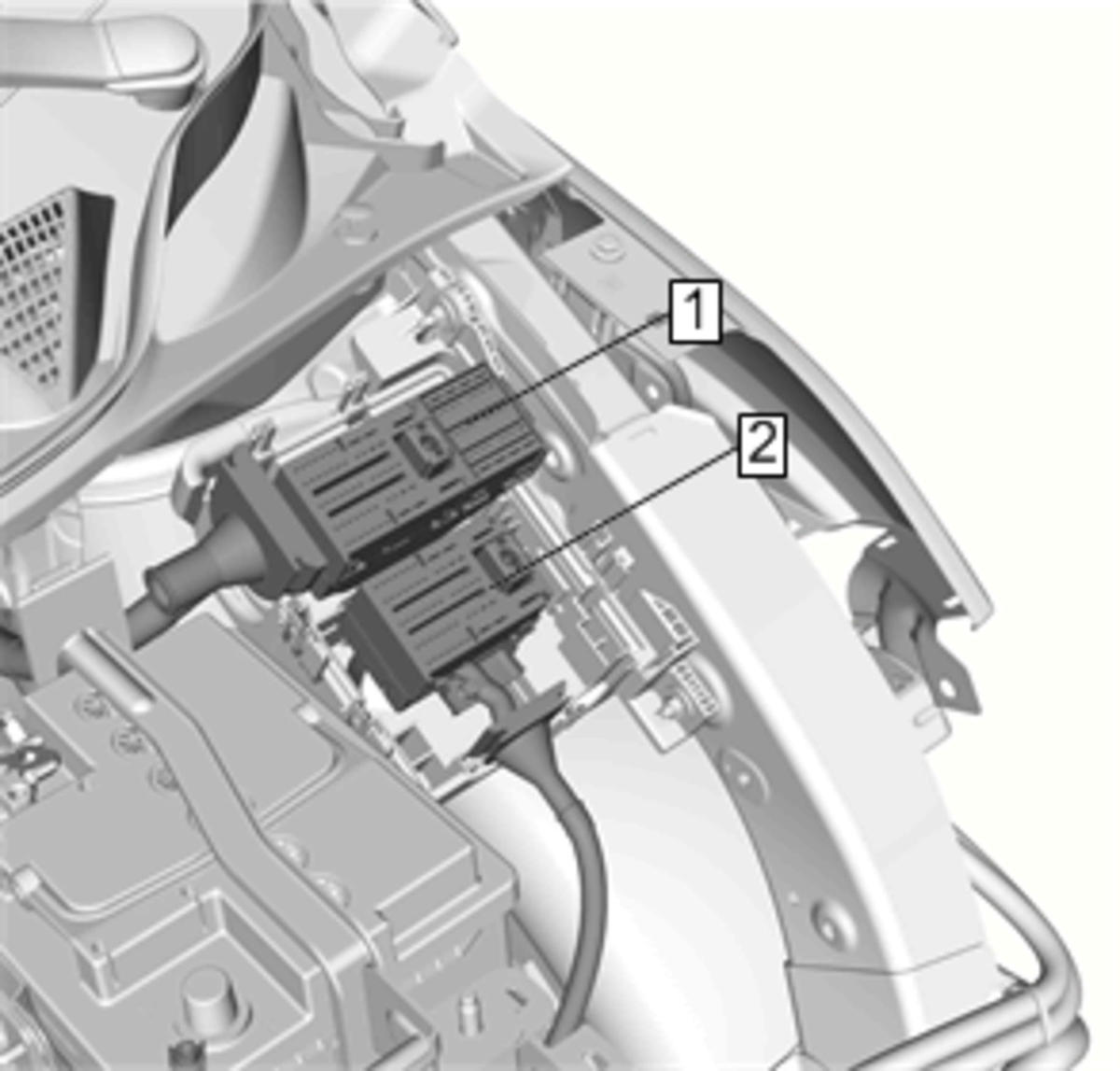

    4. Fig 2: Body Wiring Harness Assembly
    GM4533272Courtesy of GENERAL MOTORS COMPANY
  4. Install Engine Wiring Harness Assembly (2)@Engine Wiring Harness Fuse Block Bracket
  5. Install Body Wiring Harness Assembly (1)@Engine Wiring Harness Fuse Block Bracket

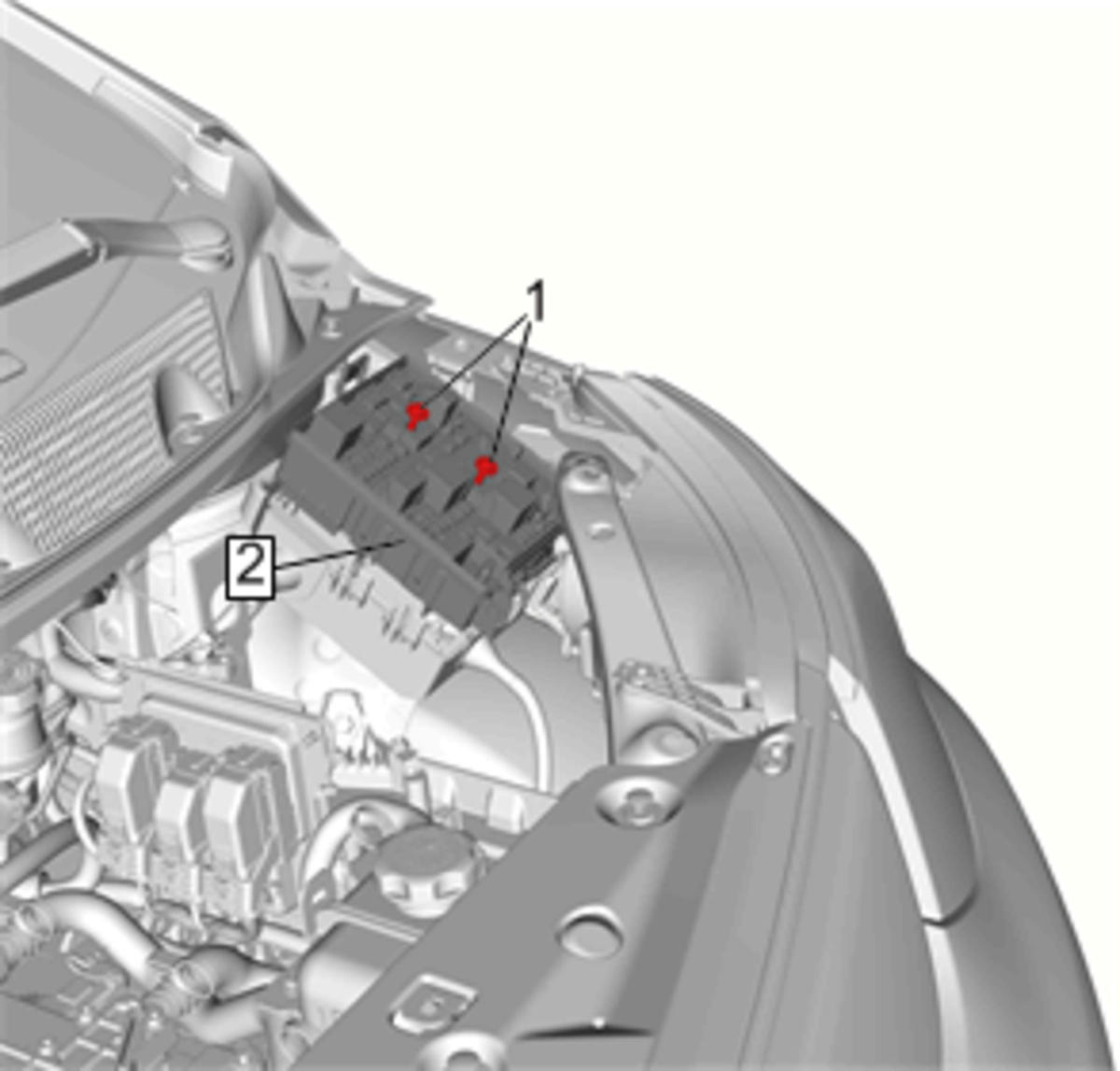

    6. Fig 3: Engine Wiring Harness Junction Block
    GM4595490Courtesy of GENERAL MOTORS COMPANY
  6. Install Engine Wiring Harness Junction Block (2)
  7. Install Engine Wiring Harness Junction Block Bolt (1) and tighten 1.5 N.m (13 lb in)

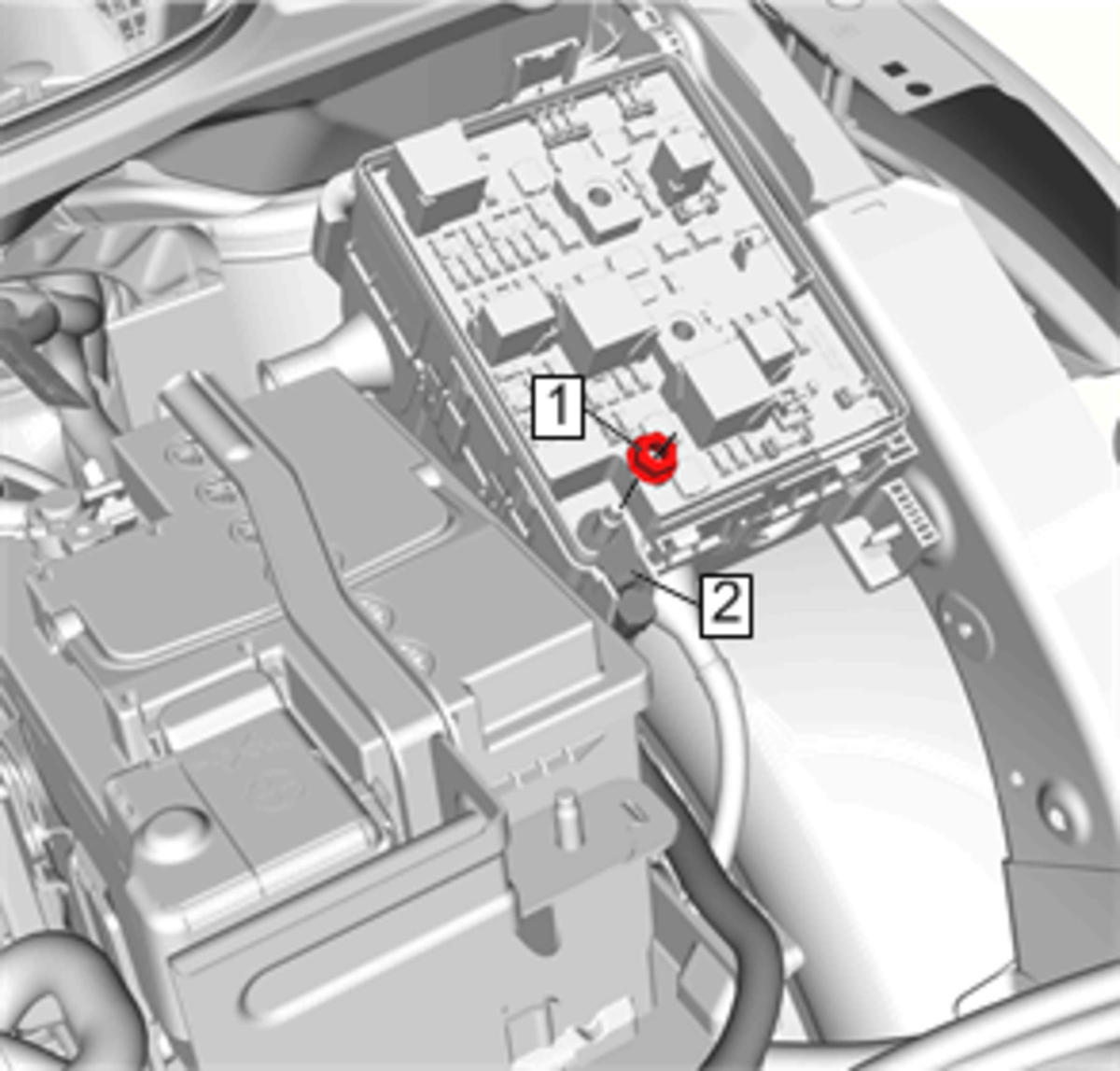

    8. Fig 4: Battery Positive Cable Nut
    GM4533277Courtesy of GENERAL MOTORS COMPANY
  8. Install the battery positive cable nut (1) and the cable (2) to the engine wiring harness junction block assembly. Tighten the nut to 22 N.m (16 lb ft)

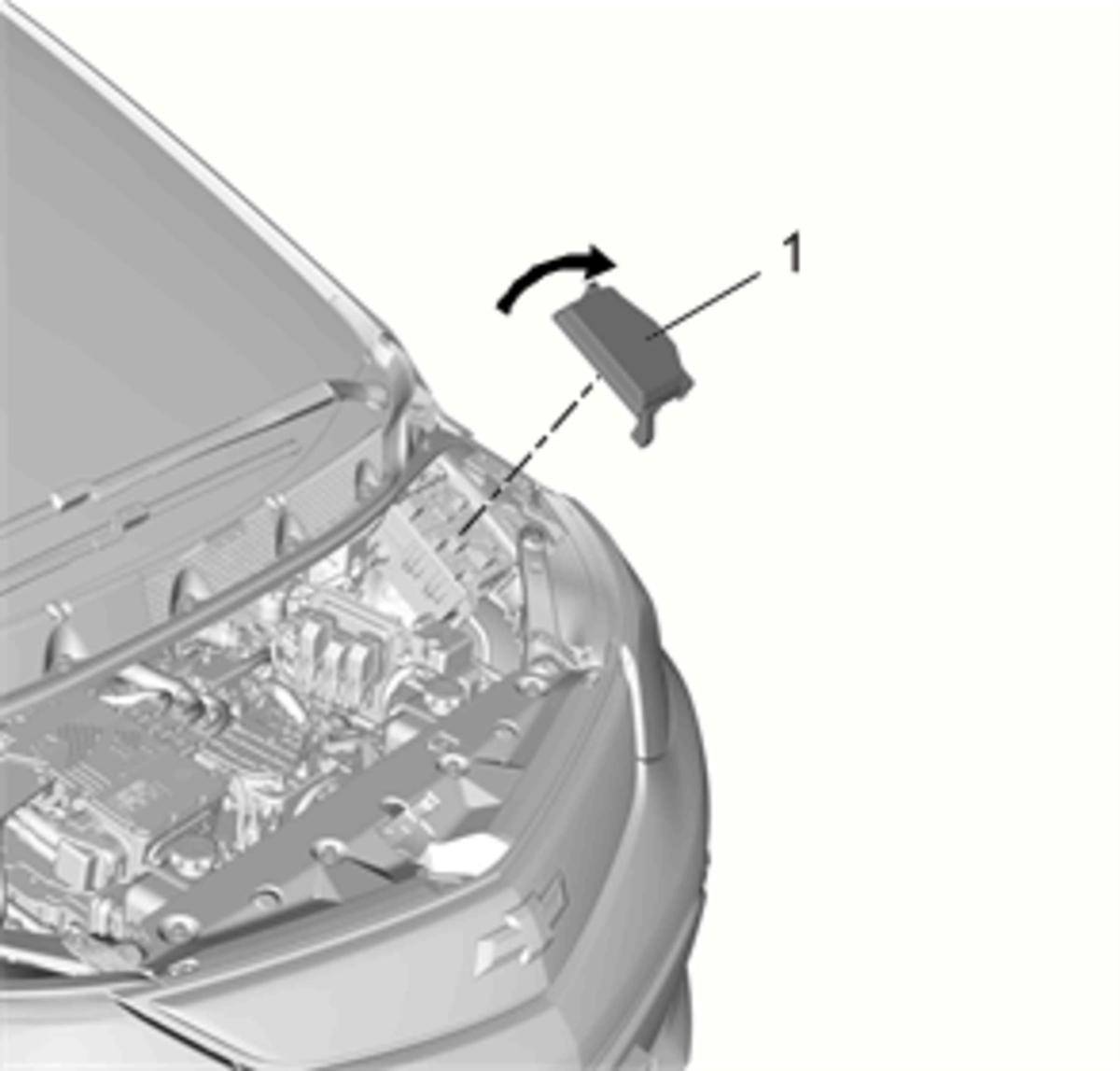

    9. Fig 5: Fuse Block Cover
    GM4595489Courtesy of GENERAL MOTORS COMPANY
  9. Install Fuse Block Cover(1)
  10. Install Battery Battery Replacement
  11. Connect Battery Negative Cable Battery Negative Cable Disconnection and Connection
