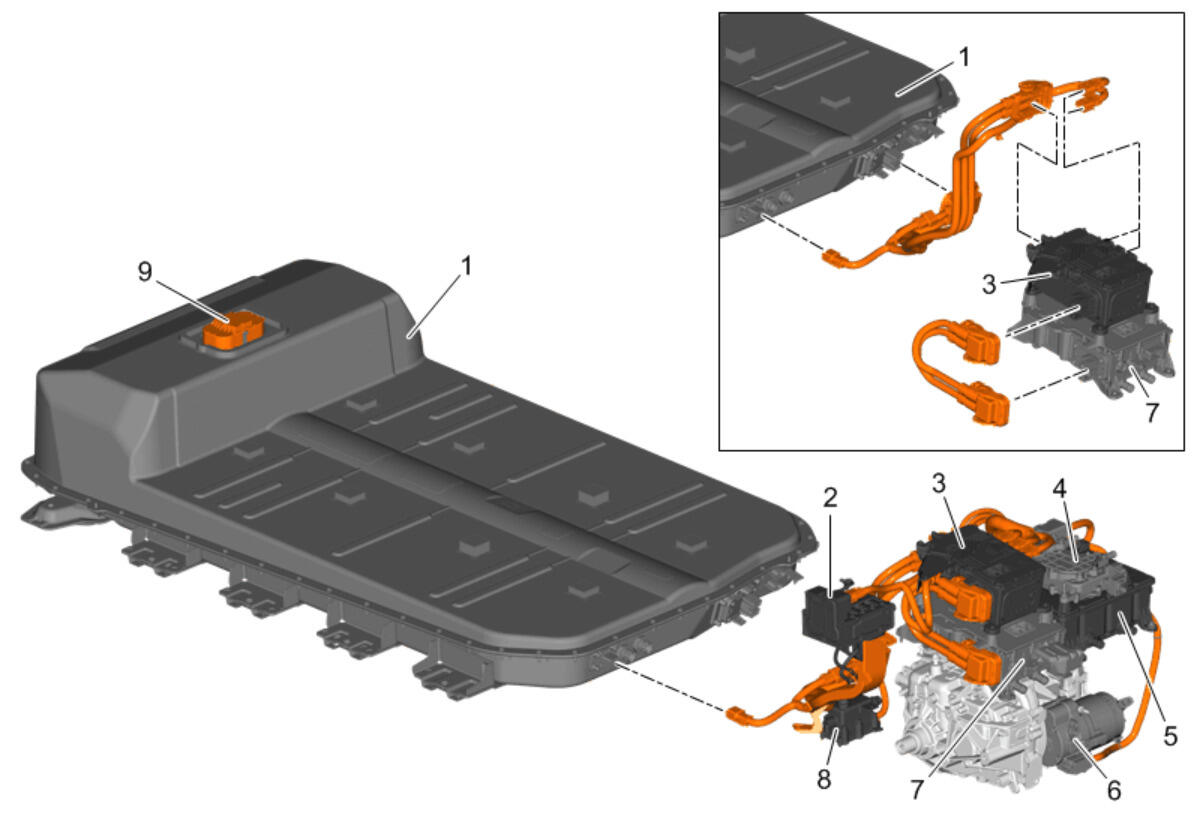

Hybrid/EV Battery System Components
| Callout | Component Name |
|---|---|
| 1 | High Voltage Battery |
| 2 | Heater Coolant Heater |
| 3 | High Voltage Battery Disconnect Control Module Assembly |
| 4 | Accessory DC Power Control Module |
| 5 | Drive Motor Battery Charger |
| 6 | Air Conditioning and Drive Motor Battery Cooling Compressor |
| 7 | Drive Motor Power Inverter Module |
| 8 | High Voltage Battery Heater |
| 9 | Drive Motor Battery High Voltage Manual Disconnect Lever |
