Information On Reprogramming The Engine Control Module (ECM) (16-NA-384)
Publication date: 2016-11-21Reference number: 16-NA-384
INFORMATION ON REPROGRAMMING THE ENGINE CONTROL MODULE (ECM)
TECHNICAL SERVICE BULLETIN
Reference Number(s): 16-NA-384, Date of Issue:
Nov 21, 2016
SERVICE INFORMATION
| Brand: | Model: | Model Year: | VIN: | Engine: | Transmission: | ||
|---|---|---|---|---|---|---|---|
| from | to | from | to | ||||
| Chevrolet | Bolt EV | 2017 | 2017 | ||||
| Opel | Ampera-E | ||||||
| Involved Region or Country | North America, South Korea, Europe |
| Condition | The Technician may be unable to reprogram the Engine Control Module (ECM). |
| Cause | This condition may be caused by the ECM automatically resetting during the flash event. |
CORRECTION
IMPORTANT:
Verify the battery voltage is more than 12.6 volts but less than 15.5 volts before proceeding with reprogramming. The battery must be fully charged BEFORE reprogramming.
When reprogramming the ECM (K20 Module), it is necessary to disconnect the X2 Connector from the ECM (K20 module) before the flash begins. Failure to disconnect the X2 connector will cause the ECM to re-set during the procedure and the re-flash will fail.
SERVICE PROCEDURE

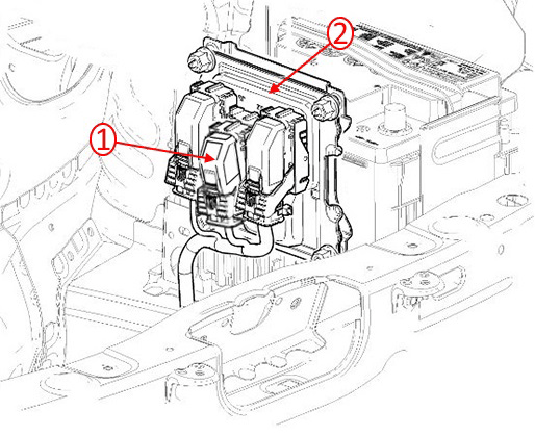

- Disconnect the X2 connector (1) from the ECM (2).
- Reprogram the controller.
- Connect the X2 connector to ECM.
- Clear all codes.
IMPORTANT:
During reprogramming, the battery voltage must be maintained within the proper range of 12.6-15.5 volts. CONNECT the approved Midtronics® PSC 550 Battery Maintainer (SPS Programming Support Tool (EL-49642) to the vehicle or the GR8 (EL50313) in the power supply mode.
WARRANTY INFORMATION
| Labor Operation | Description | Labor Time |
|---|---|---|
| 2810075 | Engine Control Module Reprogramming with SPS | 0.3 hr |
| Version | 2 |
| Modified | Dec. 7, 2016 - Adding the Ampera-E model and updating the Involved Region or Country section. |
