Video Display Inside Rearview Mirror Camera Replacement

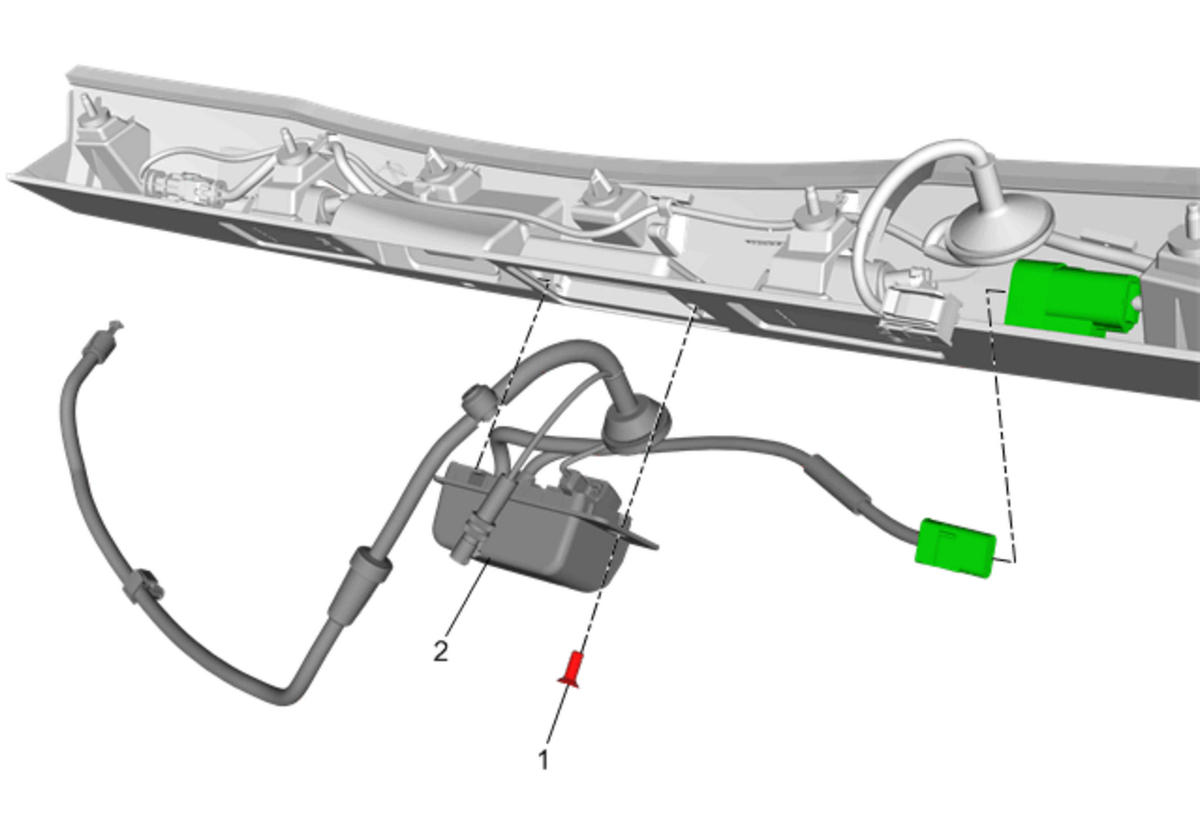

Fig 1: Video Display Inside Rearview Mirror Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Rear Closure Center Applique. Refer to Rear Closure Center Applique Replacement
1	Video Display Inside Rearview Mirror Camera Screw CAUTION: Refer to Fastener Caution
2	Video Display Inside Rearview Mirror Camera Procedure  Unclip and Disconnect the electrical connector.
