Communication Interface Module Battery Replacement

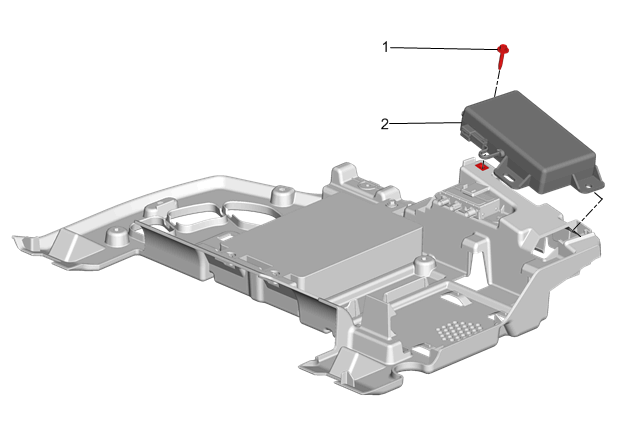

Fig 1: Communication Interface Module Battery

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Multiuse Module Bracket Replacement - Instrument Panel
1	Communication Interface Module Battery Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Communication Interface Module Battery Procedure  Disconnect the electrical connector.
