Parking Assist Control Module Replacement

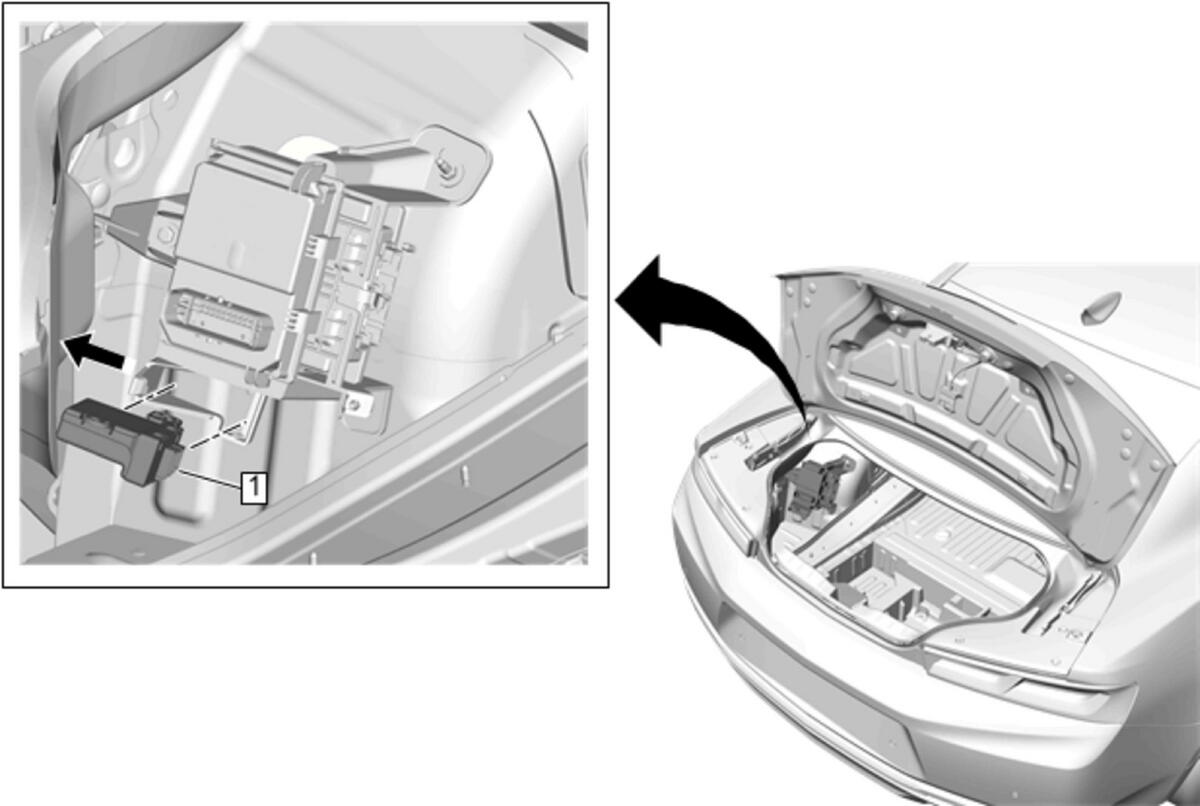

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Compartment Side Trim. Refer to Rear Compartment Side Trim Replacement - Left Side (Coupe)Rear Compartment Side Trim Replacement - Left Side (Convertible)
1	Parking Assist Control Module Procedure Disconnect the electrical connectors. Release the retaining tab. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Parking Assist Control Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Refer to Control Module References for programming and set up procedures, if required.
