Navigation Signal Splitter Replacement

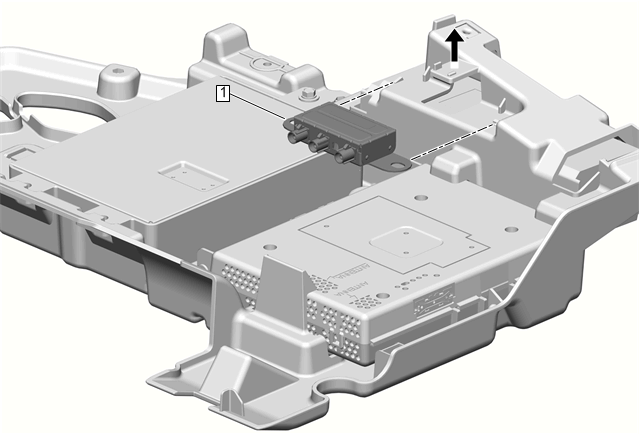

Fig 1: Navigation Signal Splitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Multiuse Module Bracket Replacement - Instrument Panel
1	Navigation Signal Splitter Procedure  Release the retaining tabs.
