Engine Wiring Harness Fuse Block Bracket Replacement

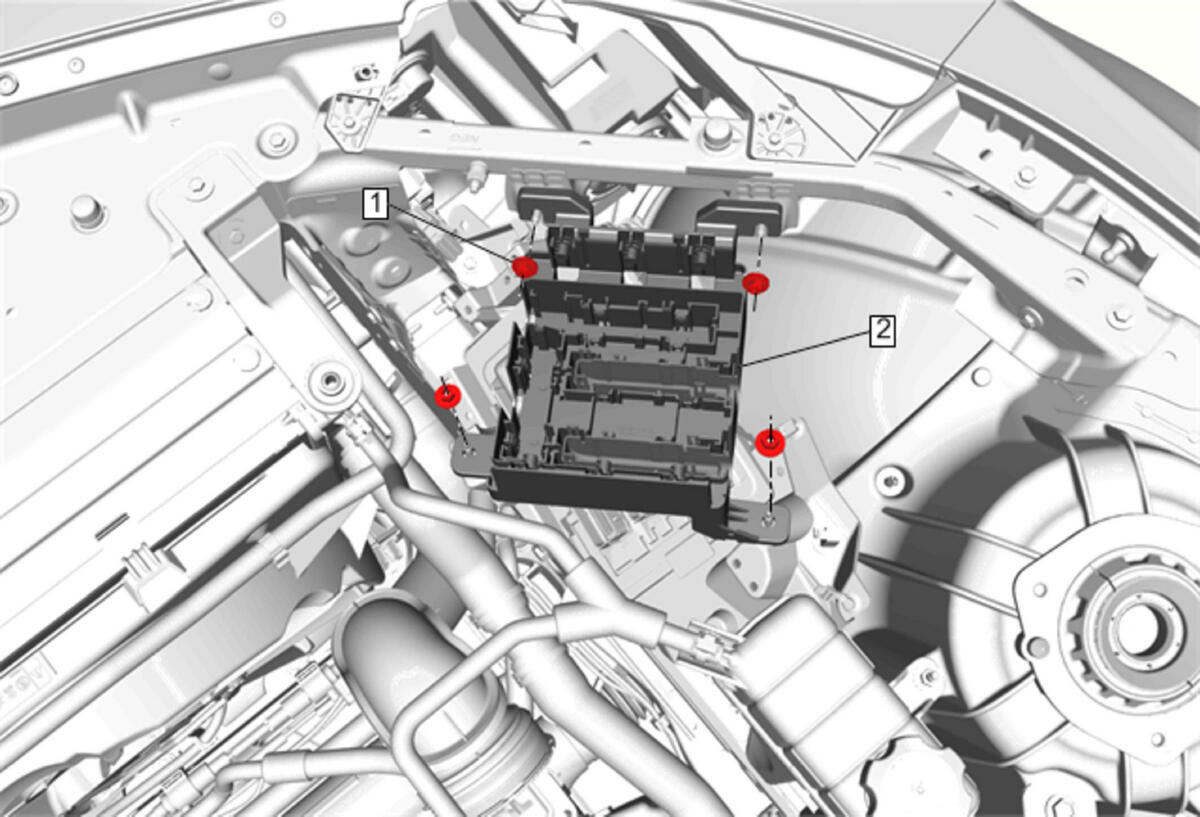

Fig 1: Engine Wiring Harness Fuse Block Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Engine Wiring Harness Junction Block Replacement .
1	Engine Wiring Harness Fuse Block Bracket Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Engine Wiring Harness Fuse Block Bracket Procedure  Release the wiring harness retainers from the bracket.
