Installation Procedure

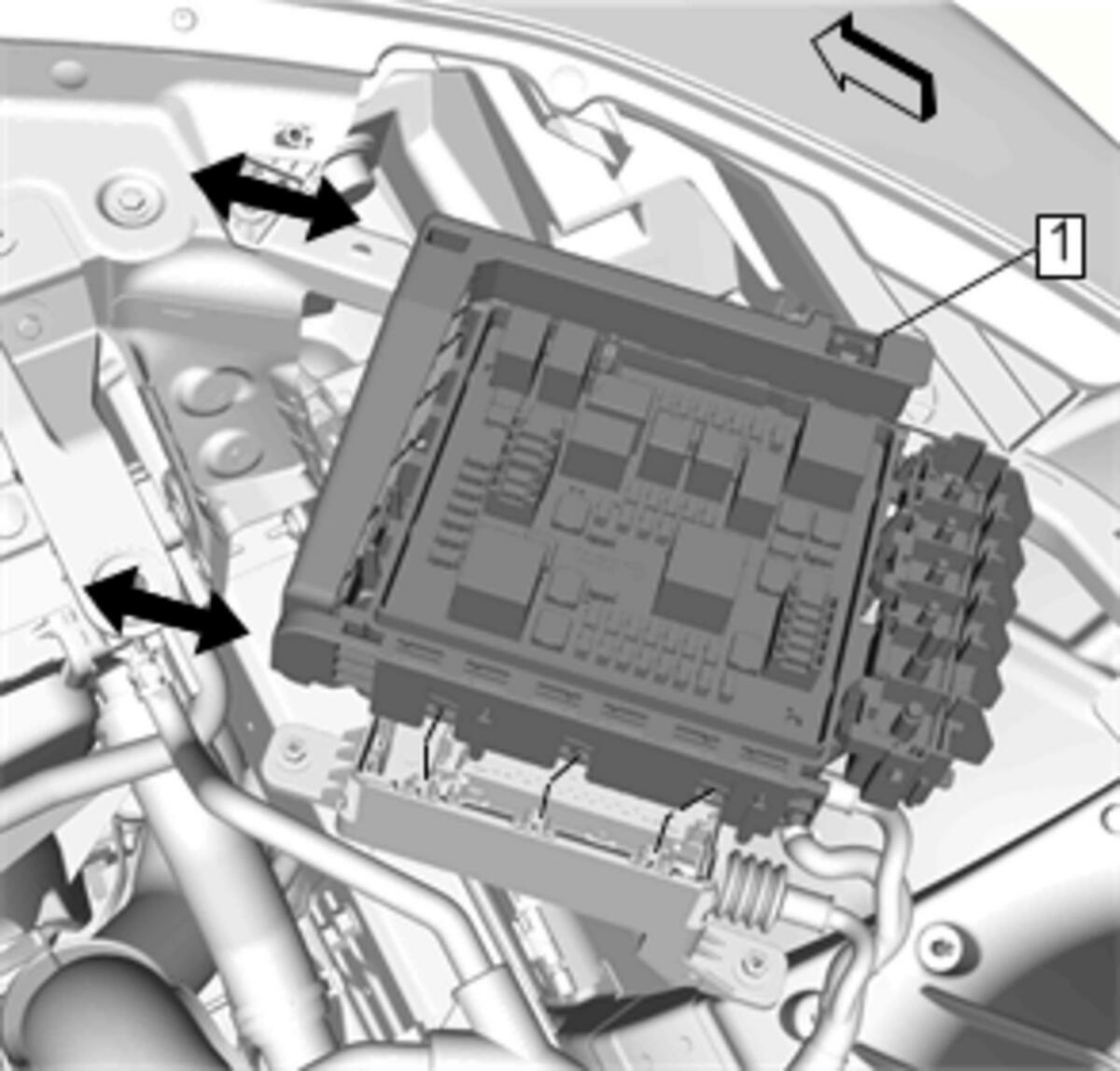

    Fig 1: Releasing Engine Wiring Harness Junction Block
    GM4194638Courtesy of GENERAL MOTORS COMPANY
  1. Install the engine wiring harness junction block (1) to the bracket. Slide the locking bar rearward to lock the engine wiring harness junction block to the bracket.

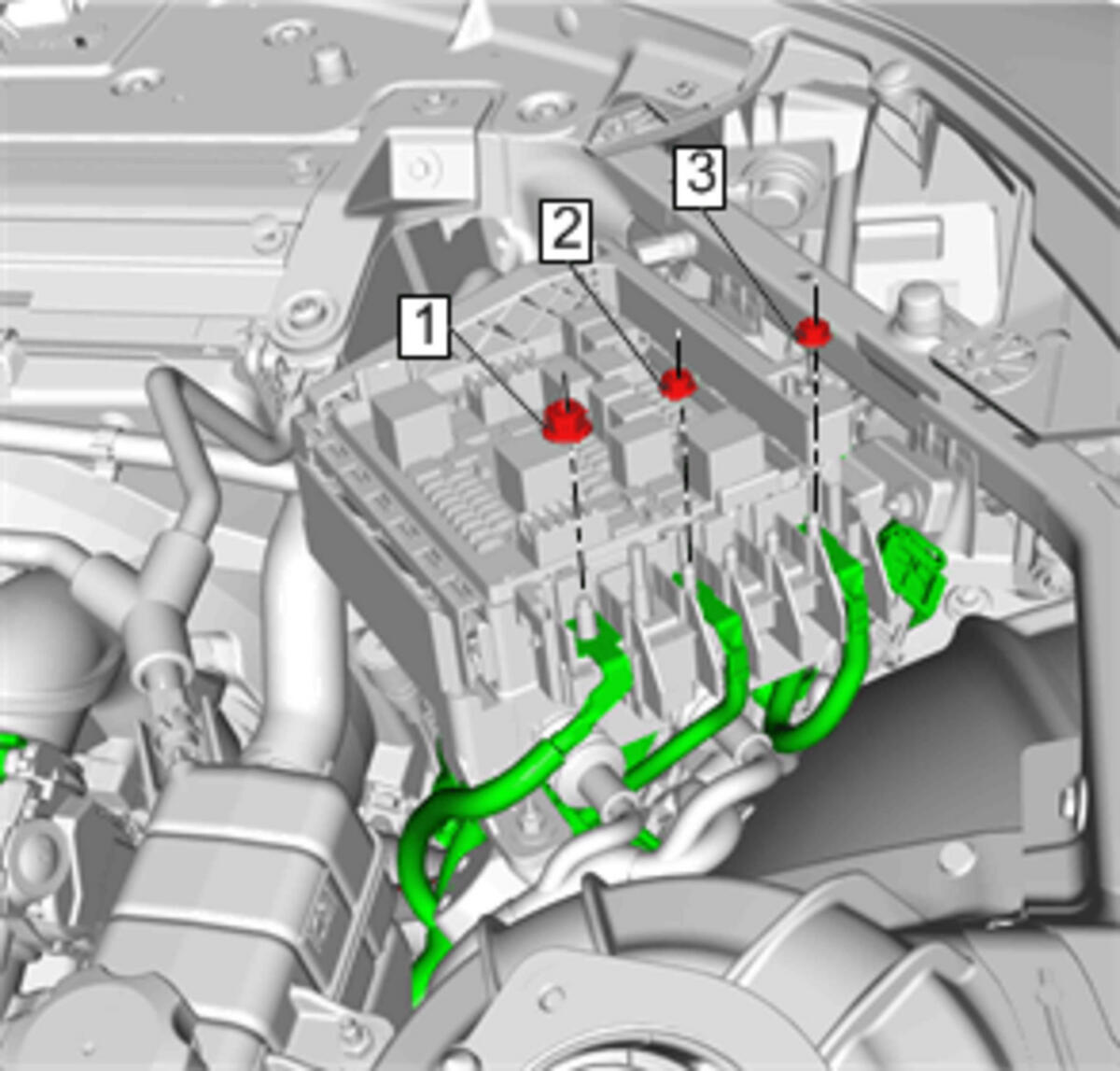

    2. Fig 2: Engine Wiring Harness Nut
    GM4194633Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Engine Wiring Harness Nut. (1)and tighten 9 N.m (80 lb in).
  3. Install Engine Wiring Harness Nut. (2) Install and tighten 9 N.m (80 lb in).
  4. Install Forward Lamp Wiring Harness Nut. (3) Install and tighten 9 N.m (80 lb in).

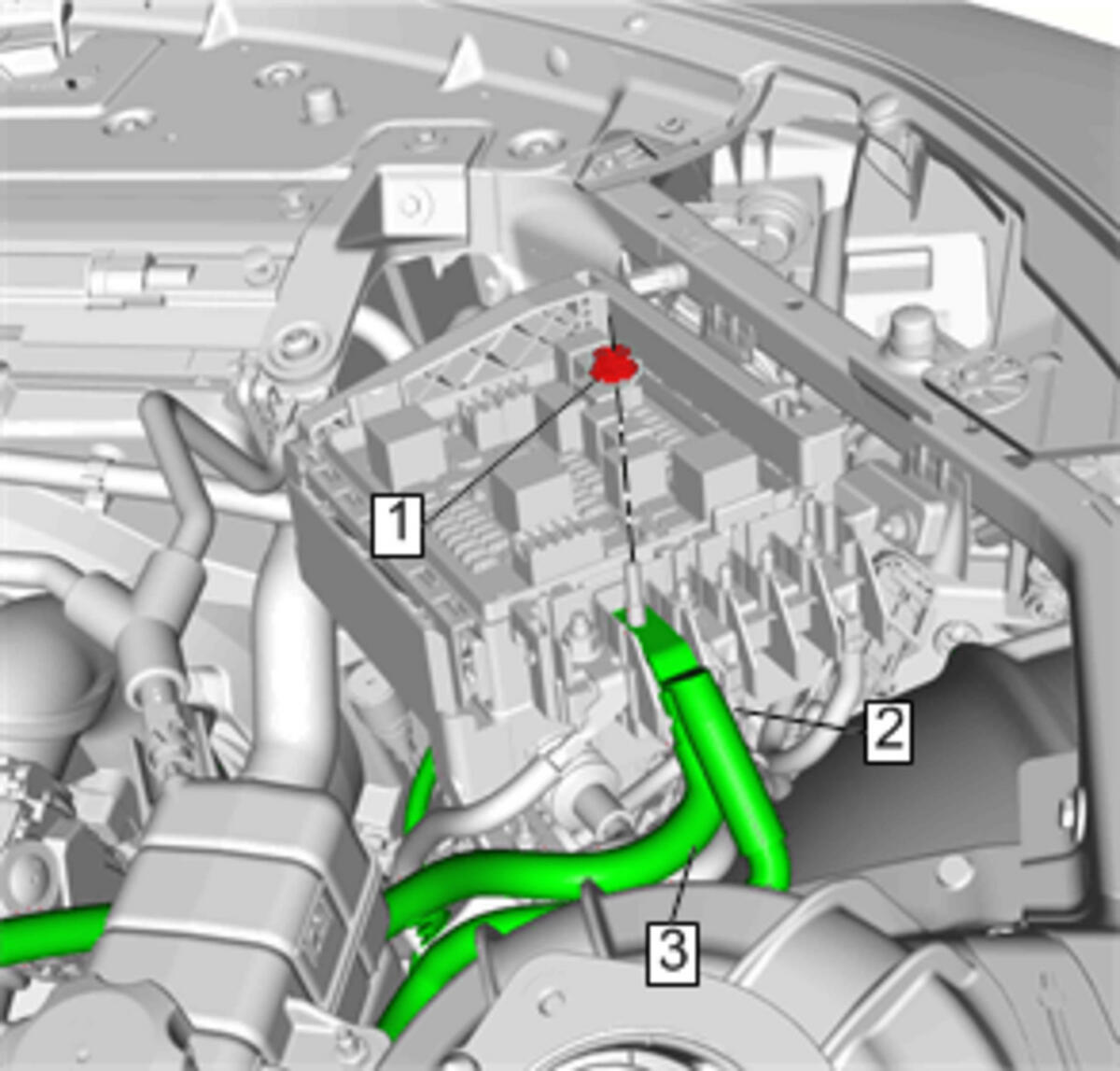

    5. Fig 3: Battery Positive Cable Terminal Nut
    GM4194630Courtesy of GENERAL MOTORS COMPANY
  5. Install Battery Positive Cable (2)
  6. Install Battery Positive Cable Terminal Nut. (1) and tighten 12 N.m (106 lb in).

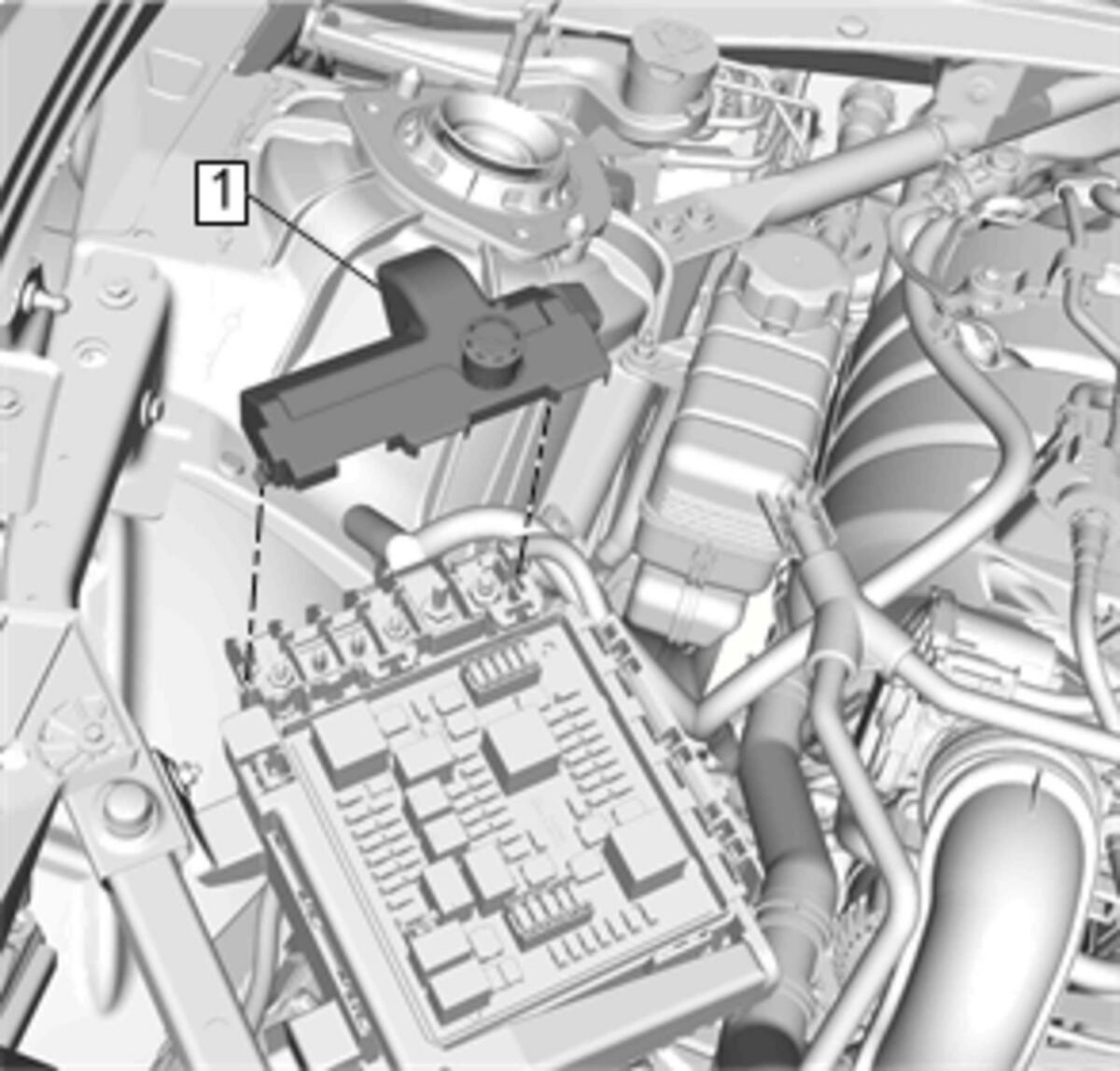

    7. Fig 4: Engine Wiring Harness Junction Block Terminal Cover
    GM4194629Courtesy of GENERAL MOTORS COMPANY
  7. Install Engine Wiring Harness Junction Block Terminal Cover

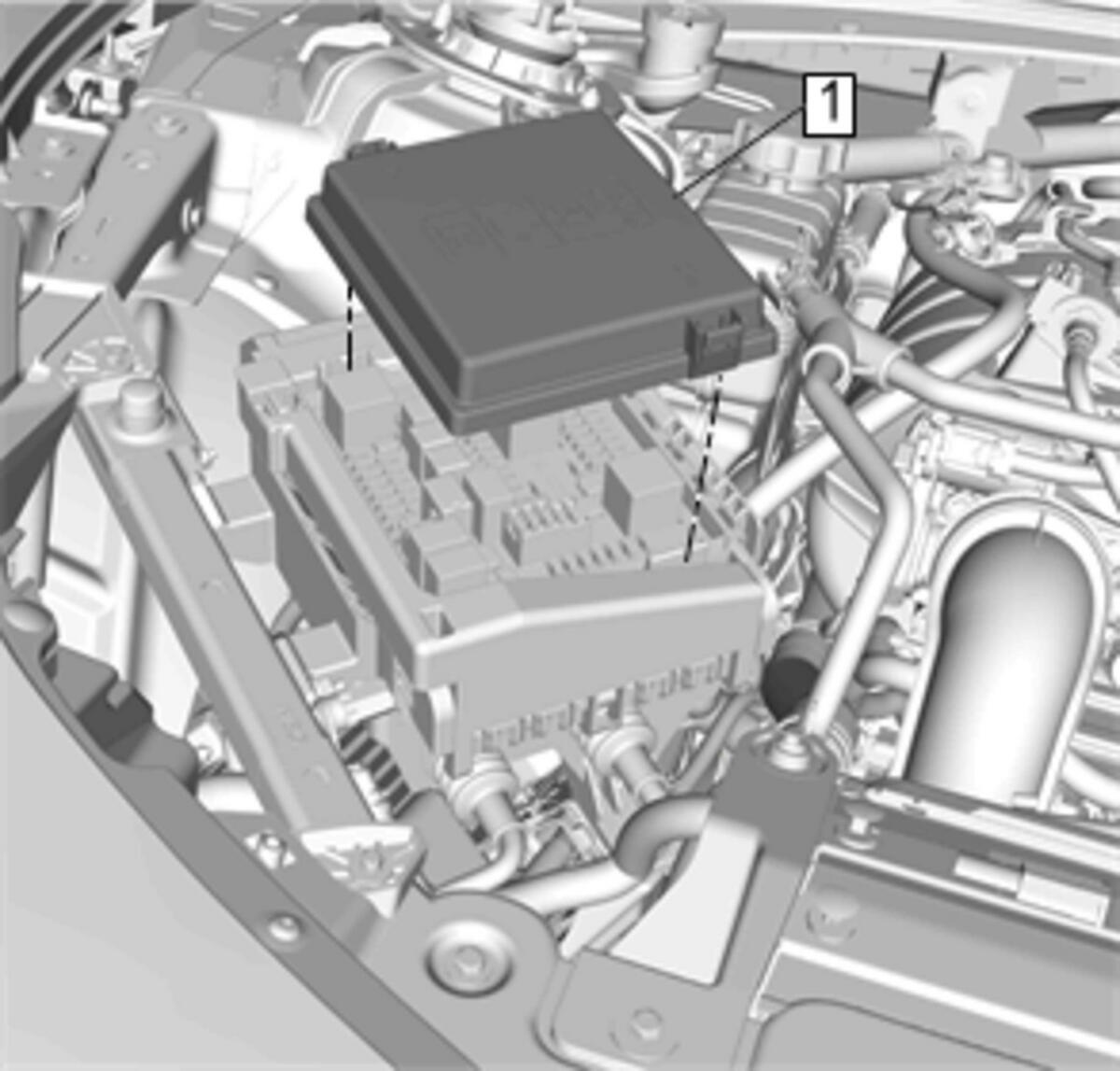

    8. Fig 5: Engine Wiring Harness Junction Block Cover
    GM4194626Courtesy of GENERAL MOTORS COMPANY
  8. Install Engine Wiring Harness Junction Block Cover
  9. Connect Battery Negative Cable.Battery Negative Cable Disconnection and Connection
