Camaro SS, 2D Convertible, Standard Trans
›
Repair and Diagnosis
›
Accessories & Equipment
›
Collision/Avoidance
›
Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Pedestrian Impact Detection System (B3T)
Pedestrian Impact Detection System (B3T)

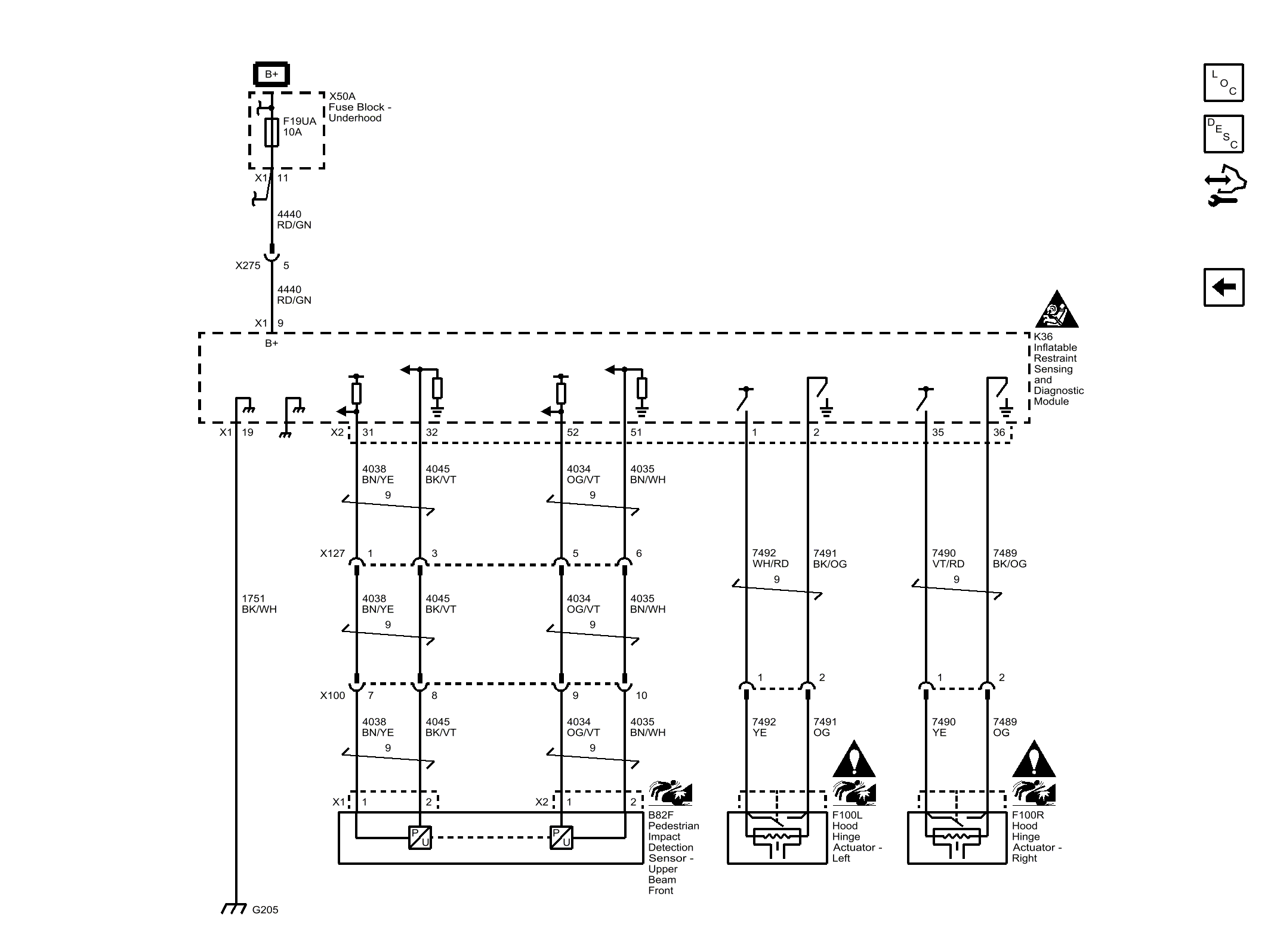

Fig 1: Pedestrian Impact Detection System (B3T)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
