Vehicle Performance Camera Replacement

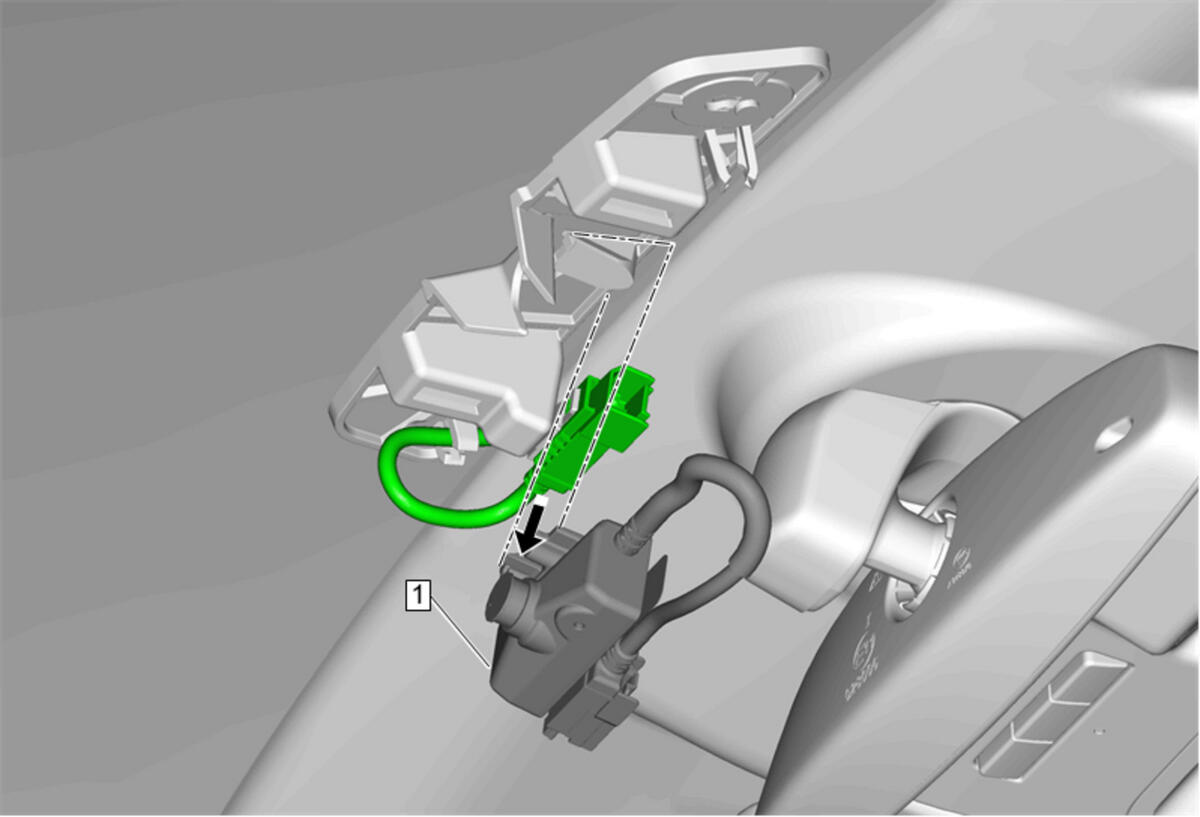

Fig 1: Vehicle Performance Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Windshield Multifunction Sensor Mount Bracket Cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Vehicle Performance Camera Procedure Release the center retaining tab on the camera and slide the camera up off the bracket. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Windshield Multifunction Sensor Mount Bracket Cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement

Vehicle Performance Camera

Procedure

Release the center retaining tab on the camera and slide the camera up off the bracket.
Disconnect the electrical connector.
