Front Side Door Window Replacement

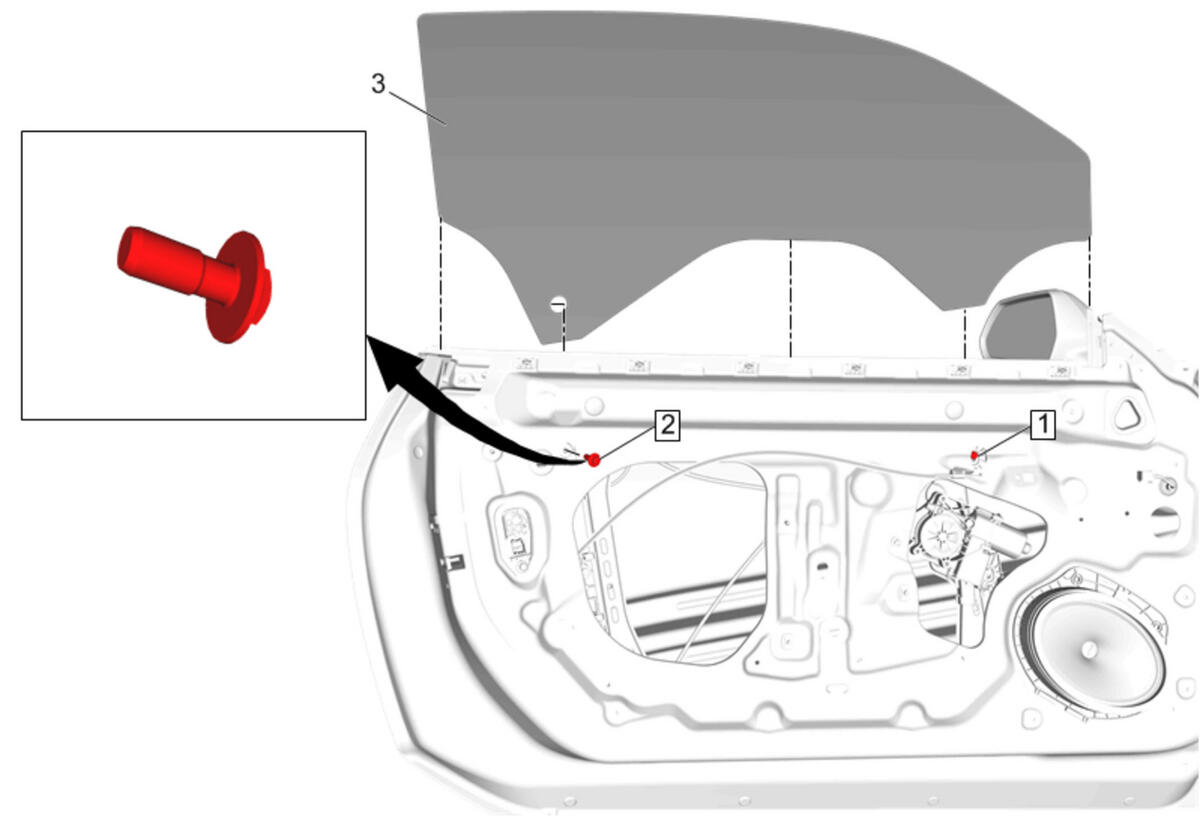

Fig 1: Front Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Window Weatherstrip Replacement Raise window in the full up position.
1	Front Side Door Window Regulator Fastener Tighten 10 N.m (89 lb in) NOTE: Mark location of the front window retainer adjuster bolt before loosening to aid in installation. Using an appropriate tool, disengage window clip.
2	Front Side Door Window Regulator Fastener Procedure Remove the fastener. Using an appropriate tool, disengage window clip. Tighten 10 N.m (89 lb in)
3	Remove front side door window.
