Installation Procedure

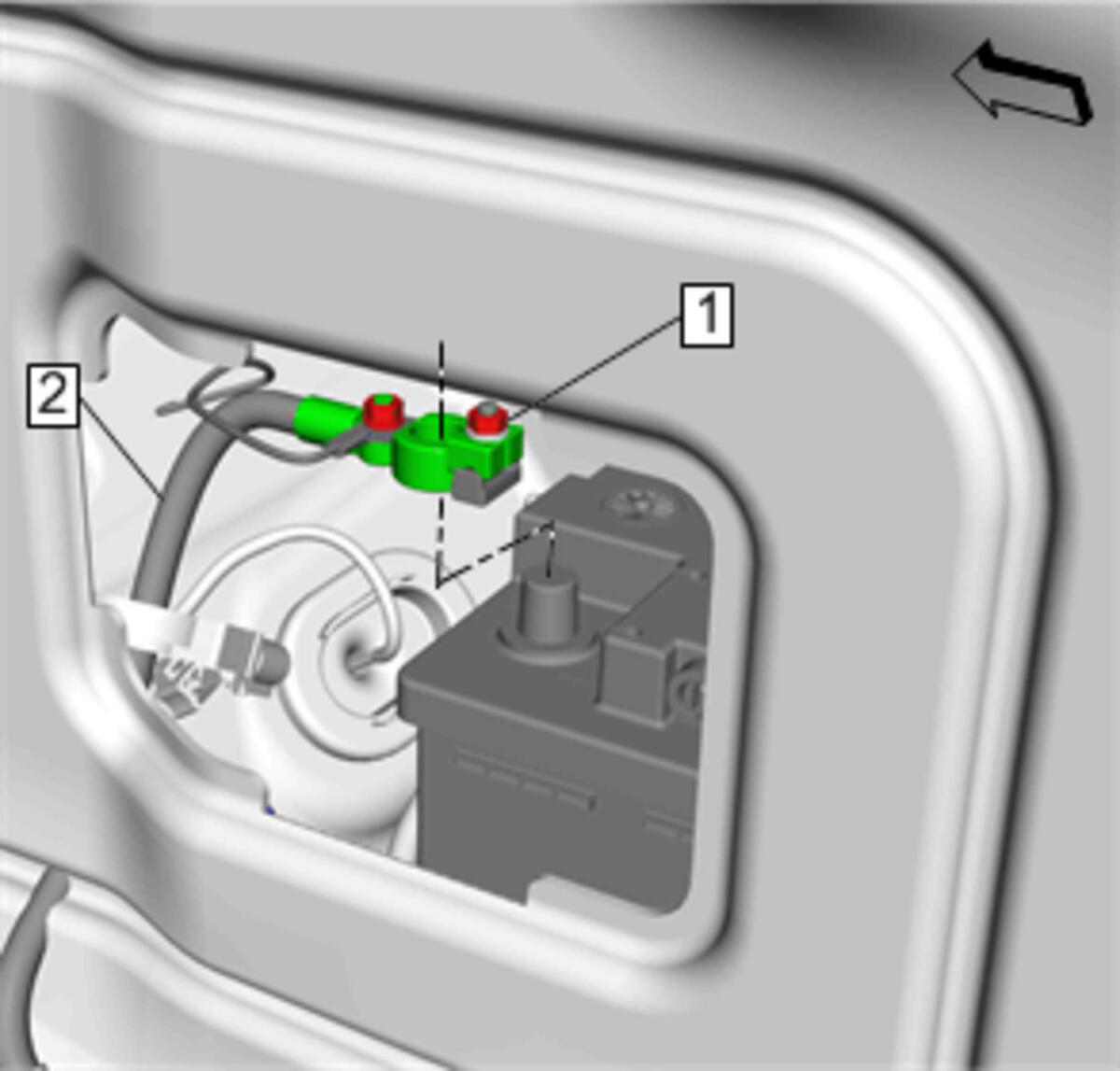

    Fig 1: Negative Battery Cable Nut
    GM4195442Courtesy of GENERAL MOTORS COMPANY
  1. Install the negative battery cable to the battery. (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Battery Negative Post Clamp Nut (1) Tighten 7 N.m (62 lb in)

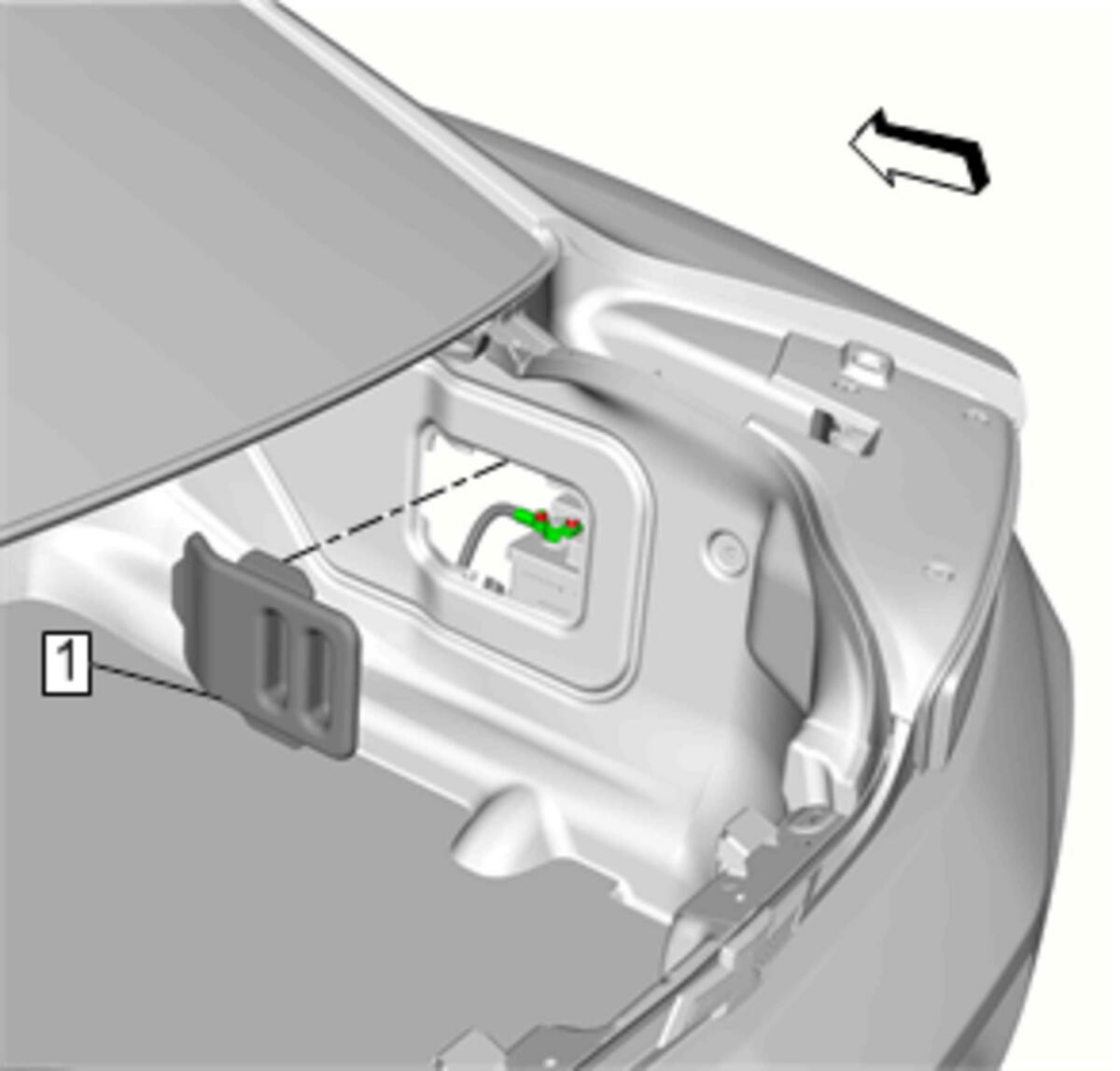

    3. Fig 2: Rear Compartment Access Door
    GM4195439Courtesy of GENERAL MOTORS COMPANY
  3. Install Rear Compartment Access Door (1)
