Rear Parking Assist Alarm Sensor Replacement

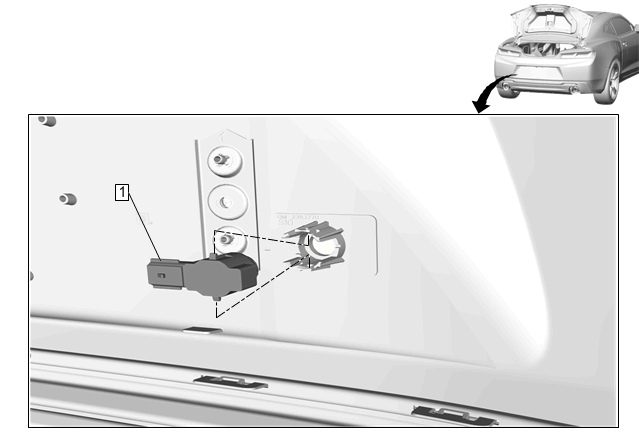

Fig 1: Rear Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Bumper Fascia Energy Absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement
1	Rear Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Lift the locking tabs on the housing and remove the rear parking assist alarm sensor.

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia Energy Absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement

Rear Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Lift the locking tabs on the housing and remove the rear parking assist alarm sensor.
