Cooling Module Components

Cooling Module Components

Items
1. G10L Cooling Fan Motor - Left
2. K22 Cooling Fan Control Module K22 Cooling Fan Control Module
3. G10R Cooling Fan Motor - Right

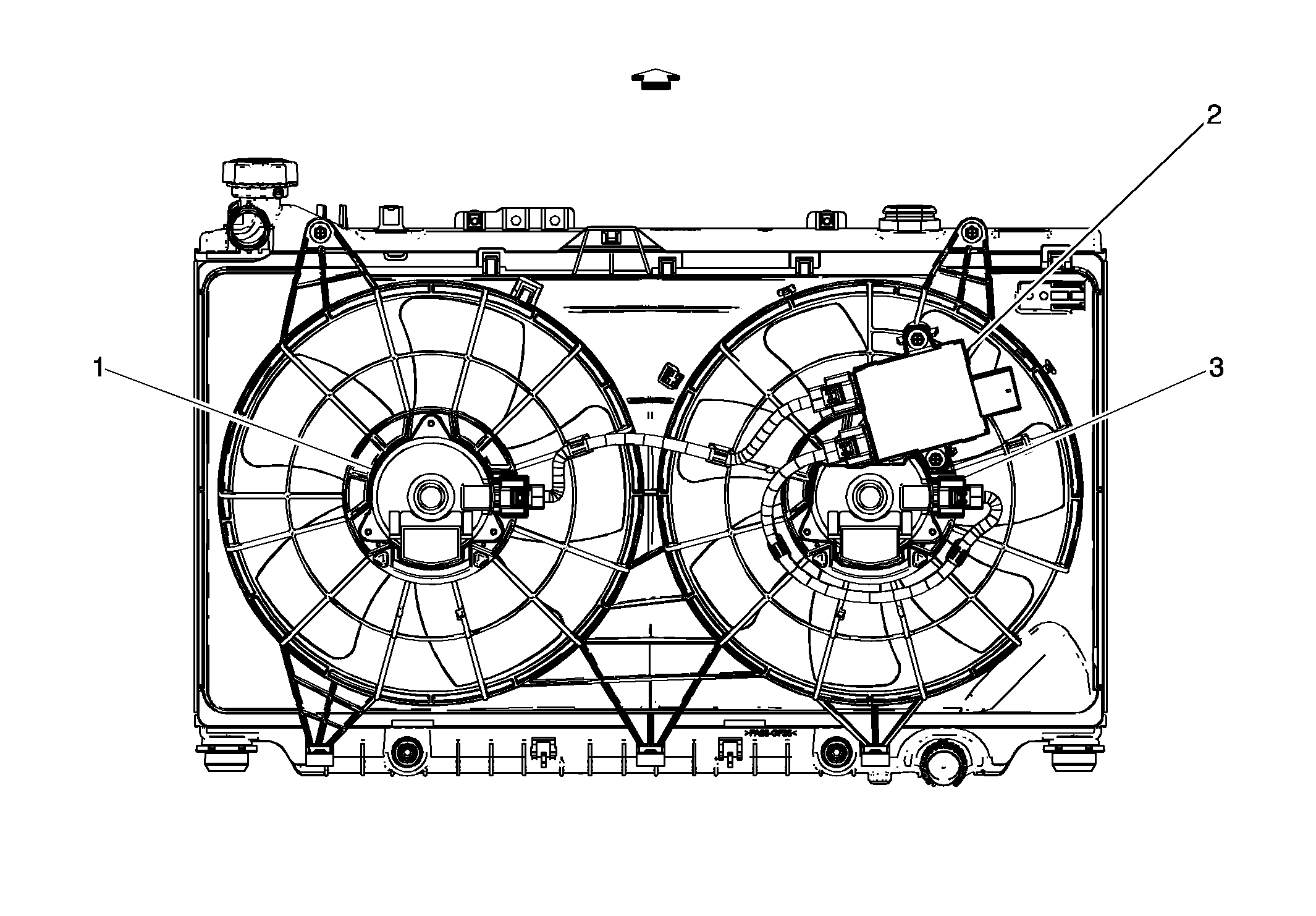

Fig 1: Cooling Module Components
GM3462807Courtesy of GENERAL MOTORS COMPANY
