Front of Vehicle Components

Front of Vehicle Components

Items
1. E4RF Turn Signal Lamp - Right Front
2. E4H Headlamp - Right Low Beam
3. E4K Park Lamp - Right Front
4. T4M Radio Antenna T4M Radio Antenna
5. E4J Park Lamp - Left Front
6. E4G Headlamp - Left Low Beam
7. E4LF Turn Signal Lamp - Left Front
8. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front
9. E4E Headlamp - Left High Beam
10. E4F Headlamp - Right High Beam
11. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front

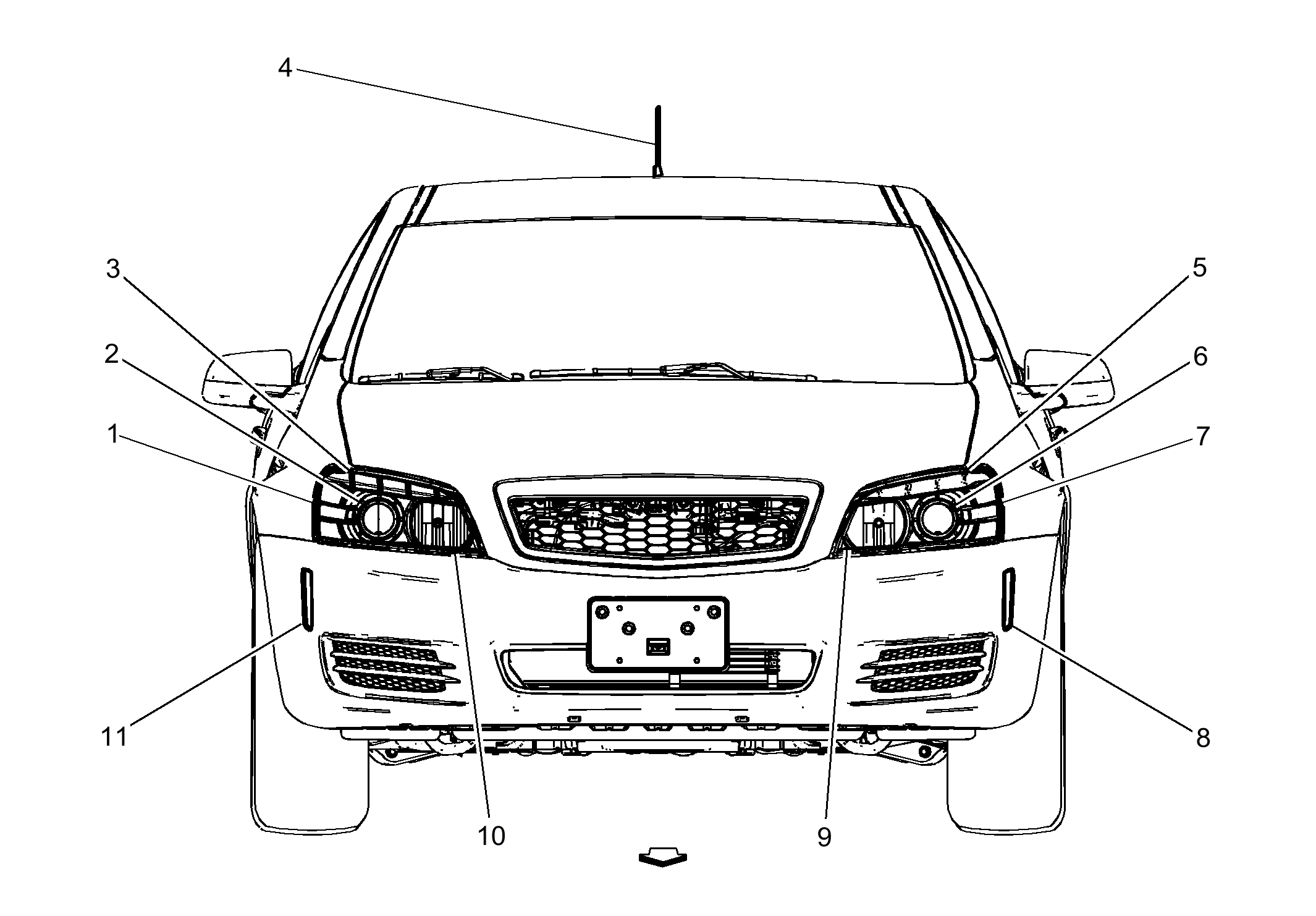

Fig 1: Front of Vehicle Components
GM3462805Courtesy of GENERAL MOTORS COMPANY
