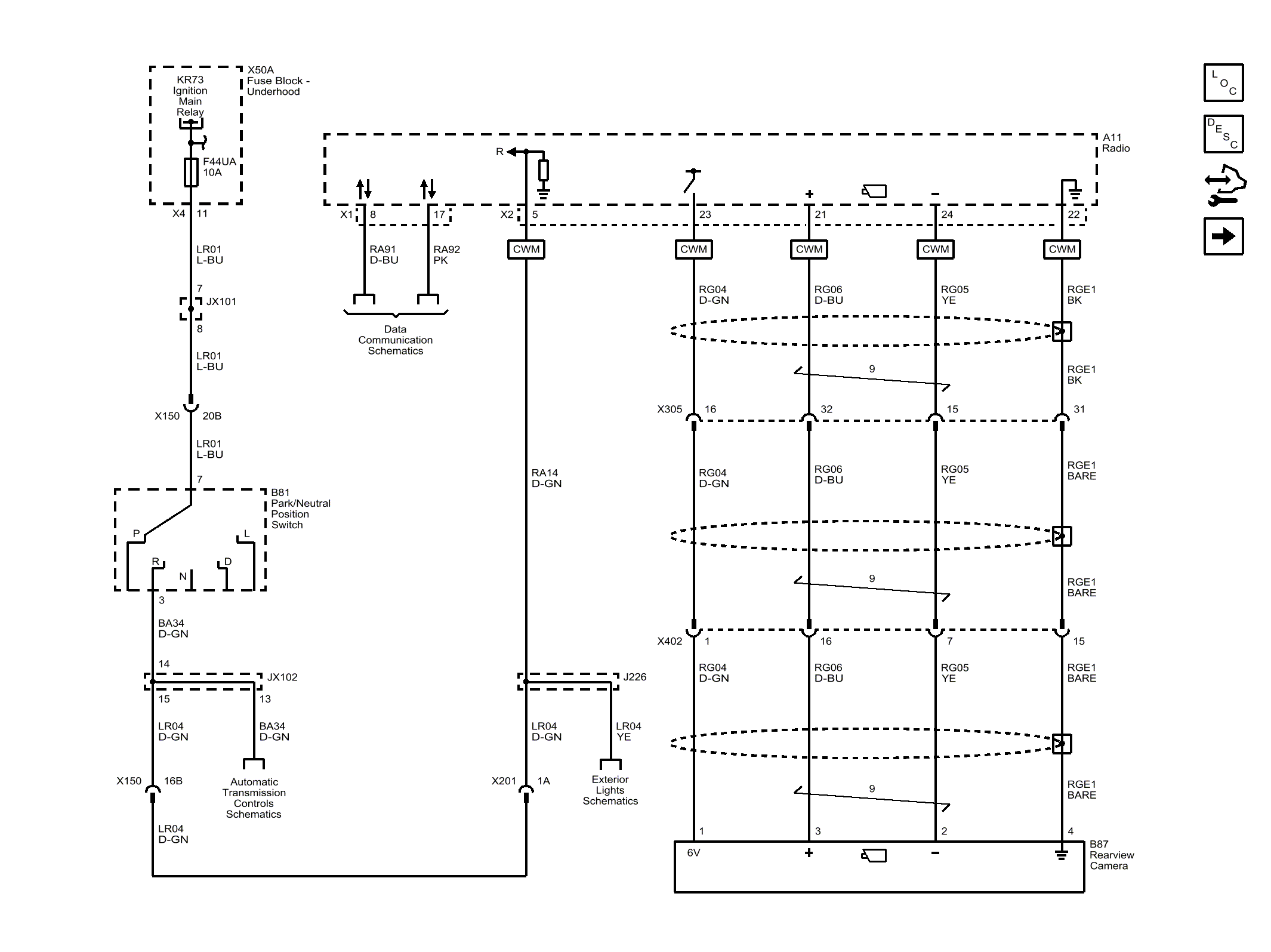

Home › Chevrolet › 2017 › City Express LS › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Schematics › Rearview Camera (UVC)
