Electronic Brake Control Vehicle Yaw Sensor Replacement

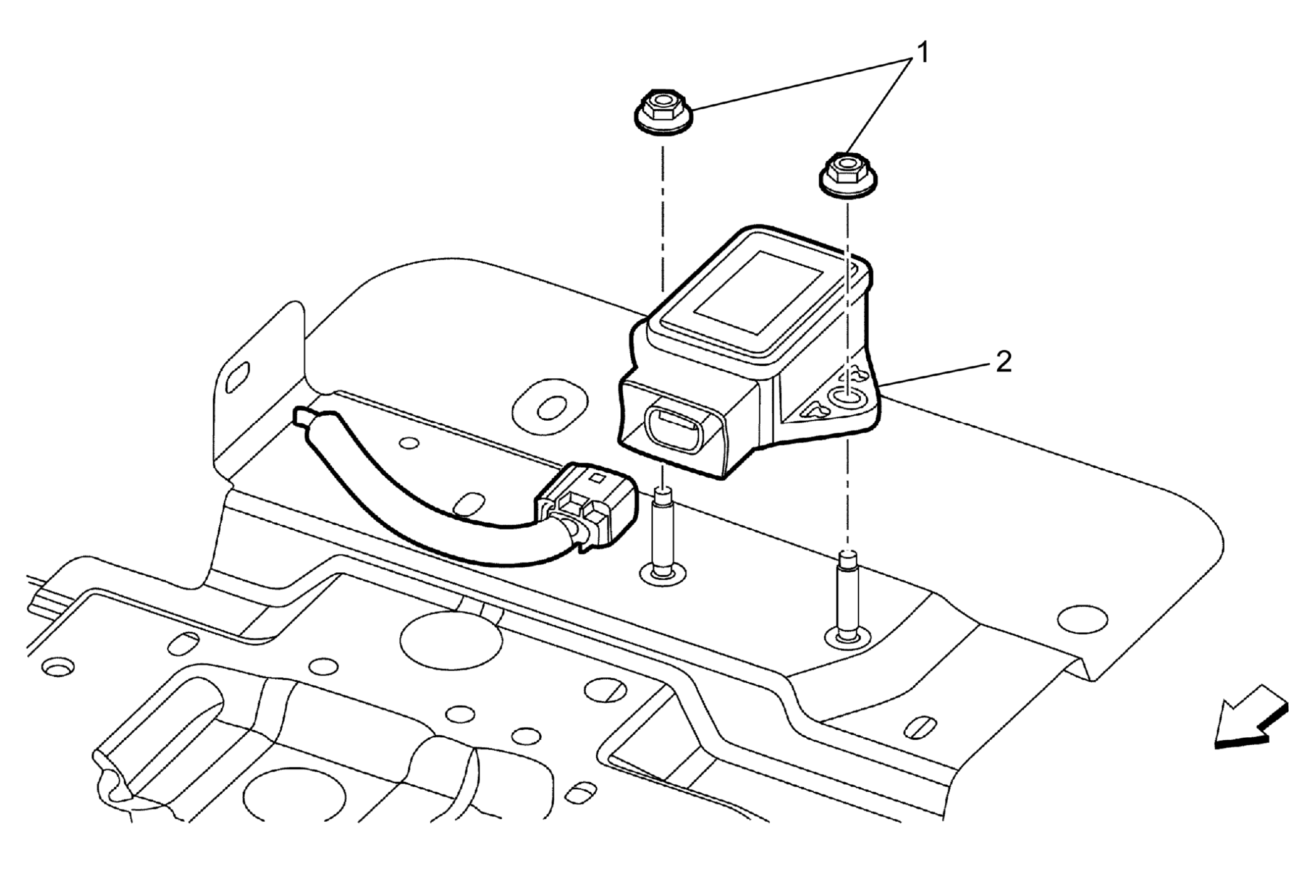

Fig 1: Electronic Brake Control Vehicle Yaw Sensor With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection Front Floor Console Replacement
1	Electronic Brake Control Vehicle Yaw Sensor Nut [2x] CAUTION: Refer to Fastener Caution . Tighten 7 N.m (62 lb in)
2	Electronic Brake Control Vehicle Yaw Sensor Procedure Electronic Brake Control Vehicle Yaw Sensor Electrical Connector - Disconnect Connect the battery negative cable. Battery Negative Cable Disconnection and Connection

Callout

Component Name

Preliminary Procedure

Electronic Brake Control Vehicle Yaw Sensor Nut [2x]

CAUTION:

Tighten
7 N.m (62 lb in)

Electronic Brake Control Vehicle Yaw Sensor

Procedure

Electronic Brake Control Vehicle Yaw Sensor Electrical Connector - Disconnect
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
