Rear Wheel Speed Sensor Replacement

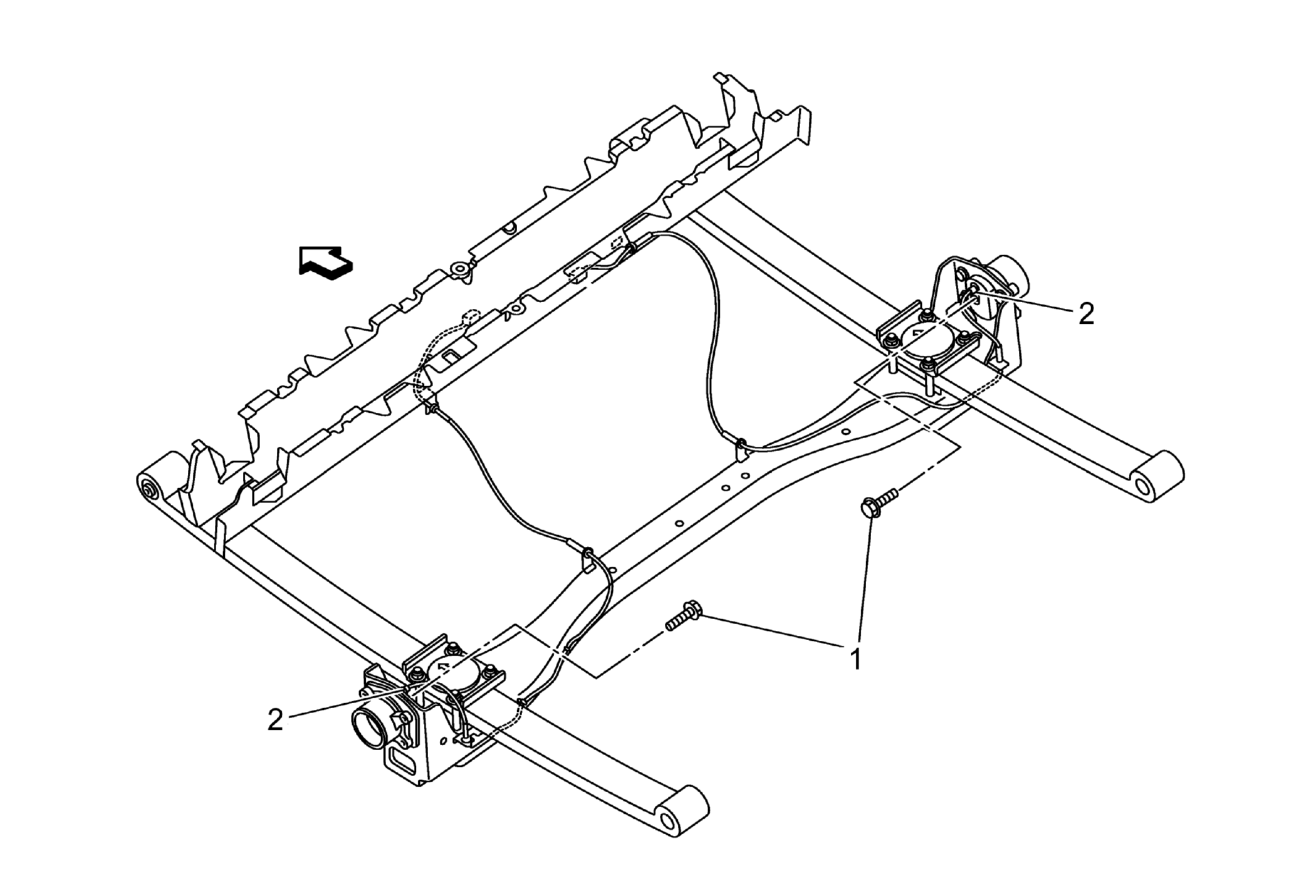

Fig 1: Rear Wheel Speed Sensor With Torque Specifications

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lifting and Jacking the Vehicle Tire and Wheel Removal and Installation
1	Wheel Speed Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Wheel Speed Sensor Procedure Wheel Speed Sensor Connector - Disconnect

Callout

Component Name

Preliminary Procedure

Wheel Speed Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Wheel Speed Sensor
Procedure
Wheel Speed Sensor Connector - Disconnect
